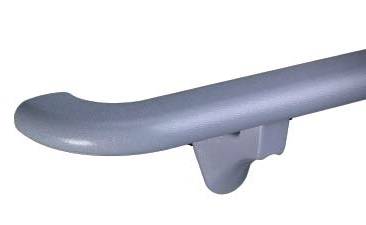

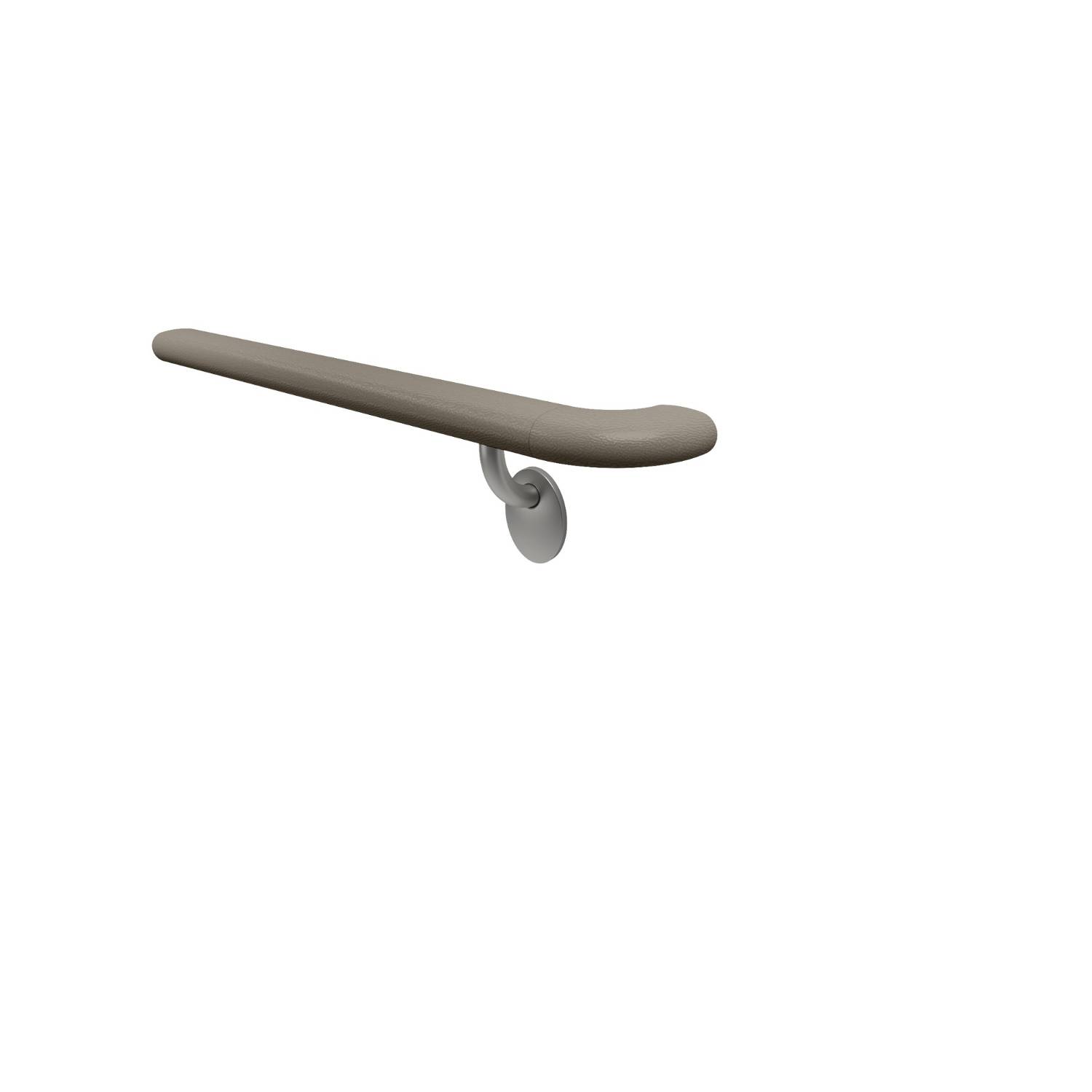

2000 Hand rail
Verified by manufacturer 4 months ago
The 2000 Handrail provides forearm support for pedestrians and wheelchair users with a flat surface. Multiple handrail bracket combinations offer added design options.
Application
Suitable for use in all areas which require support for residents, patients and visitors.
Description
The 2000 Handrail provides forearm support for pedestrians and wheelchair users with a distinctive flat surface. Multiple handrail bracket combinations offer added design options.
Features and benefits:
- Manufactured from safe, durable and recyclable PVC-U.
- Designed to safeguard people from slips and falls.
- Protects interior walls from everyday wear and tear, and longer-lasting damage.
- Provides forearm support for pedestrians and wheelchair users with its flat surface.
- Minimal seams due to standard 3.66 m handrail lengths.
- Contains SureContact® antimicrobial technology, which inhibits the growth of mould and mildew.
- Includes removable bottom access plates to allow fastening to wall.
- Various bracket styles are available to offer design flexibility.
- Easy to install and maintain.
- Mounted onto a 2 mm thick aluminium retainer.
- Available in a variety of colours.
- Cost-effective.
- Contains no phthalates, halogenated fire retardants or bisphenol-a (BPA).
- Low fossil fuel consumption.
Approvals/ certifications:
- GREENGUARD™ Indoor Air Quality Children and Schools certified.
- May qualify for LEED™ and Green Globes™ credits – consult manufacturer for details.
- Fungal and bacterial resistant (to ASTM G21 and G22).
- Good impact resistance (to ASTM F-476).
- Designed to meet the requirements of BS 8300: 2009 and A1: 2010.
- Meets the Americans with Disabilities Act (ADA) and American National Standards Institute (ANSI) criteria.
Standard components (dependent on configuration):
- Aluminium retainer: Provides structural stability and allows extended lengths over 3.66 m.
- Mounting brackets: Keeps hands a safe distance from the wall.
- Cover: Available in a variety of colours to coordinate with other interior finishes.
- Inside/ outside corners: Provides a smooth transition for corner applications.
- Returns: Gives the handrail installation a professional look.
- Reveal: Decorative element, standard with every woodland handrail order.
General information
Color | Manufacturer guidanceAvailable in a wide range of colours. |
Finish | Textured |
Material | PVC-U Guidance for specification option: Handrail. Aluminium Guidance for specification option: Retainer. Vinyl Guidance for specification option: Cover. |
Warranty description | Guidance for specification option: Standard Limited lifetime warranty against material and manufacturing defects. |
Size | 32 x 57 mm Guidance for specification option: Grip size. Distance from wall: 95 mm. Length: 3.66 m. |
Uniclass | |
CAWS | L30/570 Purpose-made handrails L30/580 Proprietary handrails L30/65 Purpose-made handrails L30/70 Proprietary handrails |
SKU Code | unknown |
Product range |
Specification data - Handrail systems
Handrails | PVC-U handrails. |
Fixing to parent structure | Stainless steel hexagon head screws. |
Samples required | Verification samples of handrail. Guidance for specification option: 203 mm long, in full size profiles of each type and colour indicated. |
Accessories/ Other requirements | Not required. 135° inside/ outside corner (2004135). Inside/ outside corner (2004). Left return (2002). Mounting bracket (2001). |
Finish | Aloe 1057. Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 59.33. Beeswax 0249. Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 56.9. Black 0152. Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 4.5. Buoyant Blue 0132. Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 25.5. Burlap 0252. Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 43.4. |
Length | 3.66 m. |
Cover | Scratch and stain resistant rigid vinyl. Guidance for specification option: 2 mm in thickness. |
Retainer | 2 mm thick aluminium. |
Sustainability data
Country of material origin | Italy |
Recyclability | Manufacturer guidanceRecyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % Guidance for specification option: Up to 40% recycled content in aluminium retainers. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
Similar products from Inpro

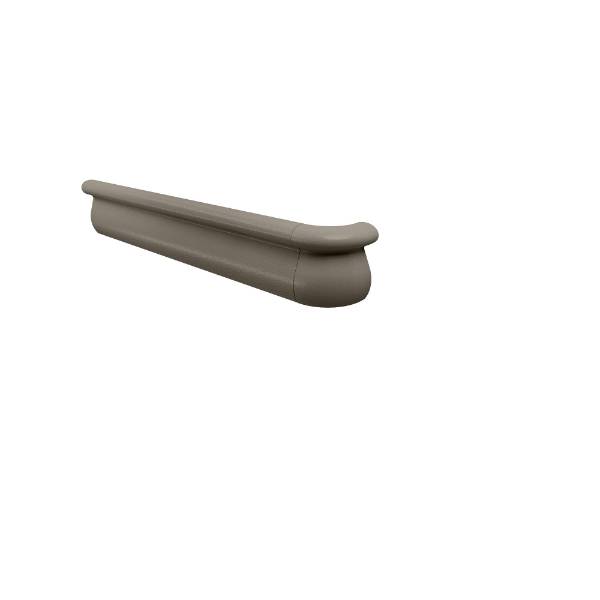

1000 Hand Rail

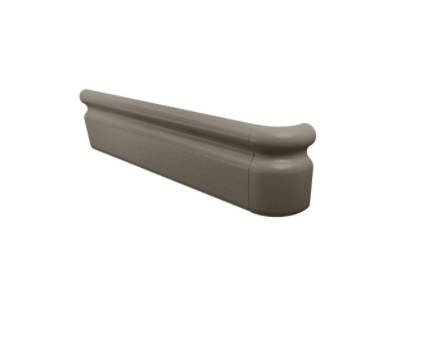

1200 Hand Rail

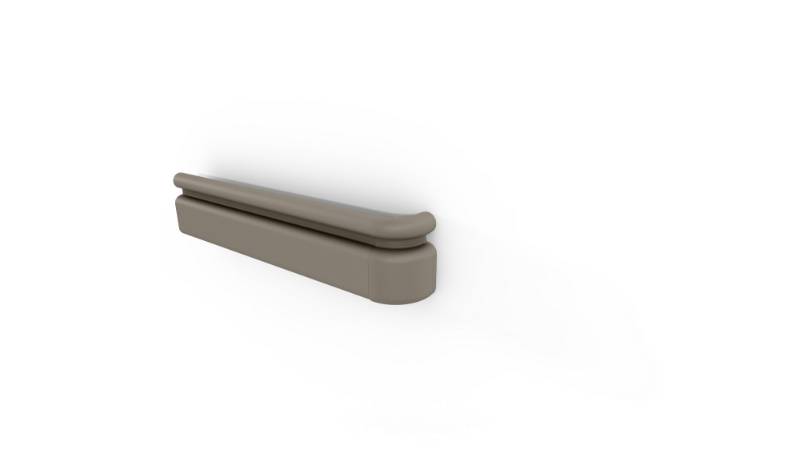

3110 Hand Rail

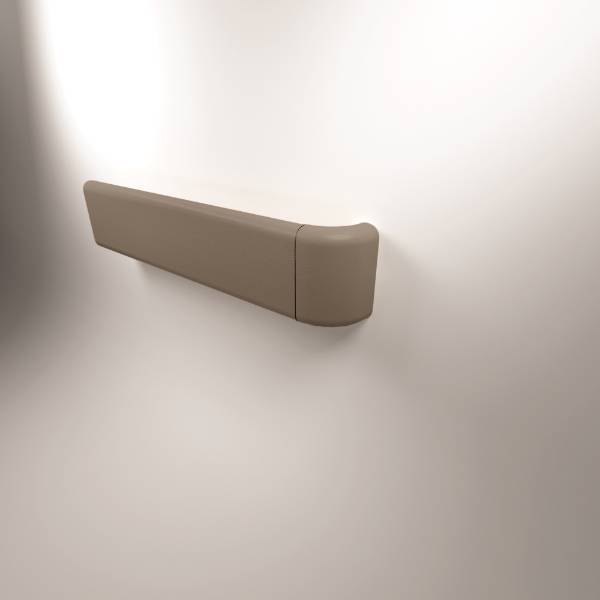

800 Hand Rail

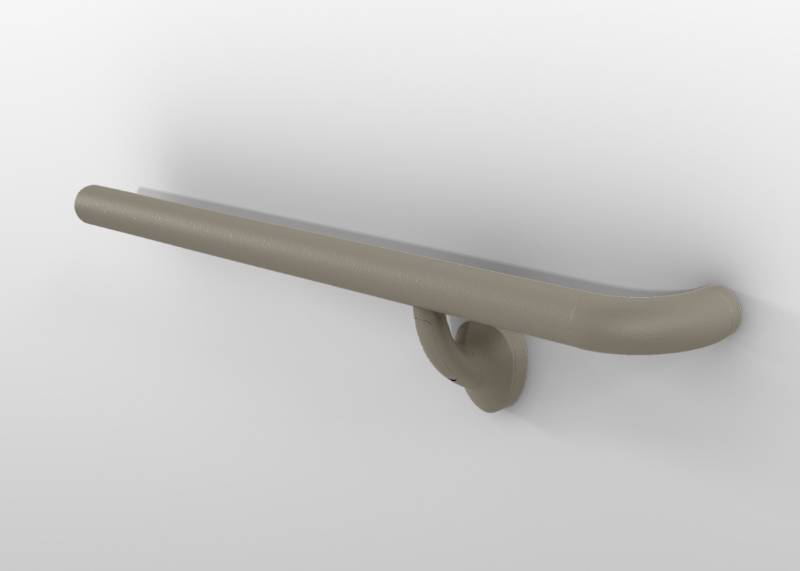

910 Hand Rail
920 Hand Rail

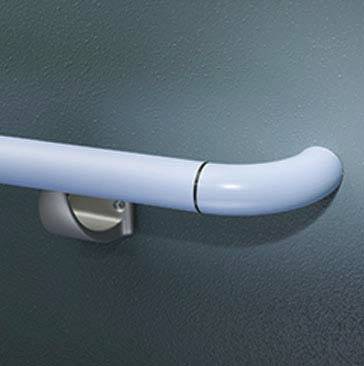

940 Hand Rail
