910 Hand Rail
Verified by manufacturer 2 months ago

Name: 910 Hand Rail
Brand: Inpro
SKU: rtVp9NRTazsjFDTT5dZ5rL

Inpro

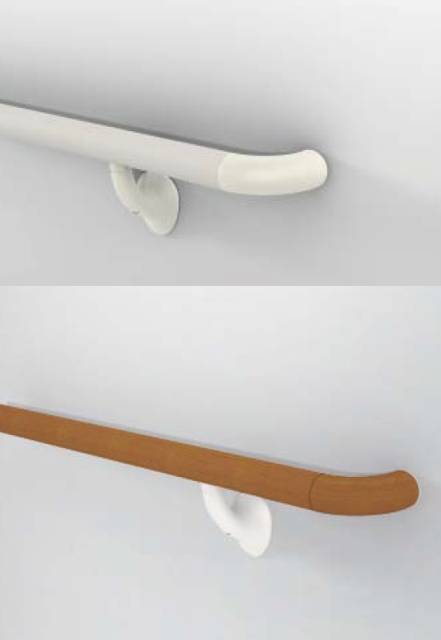

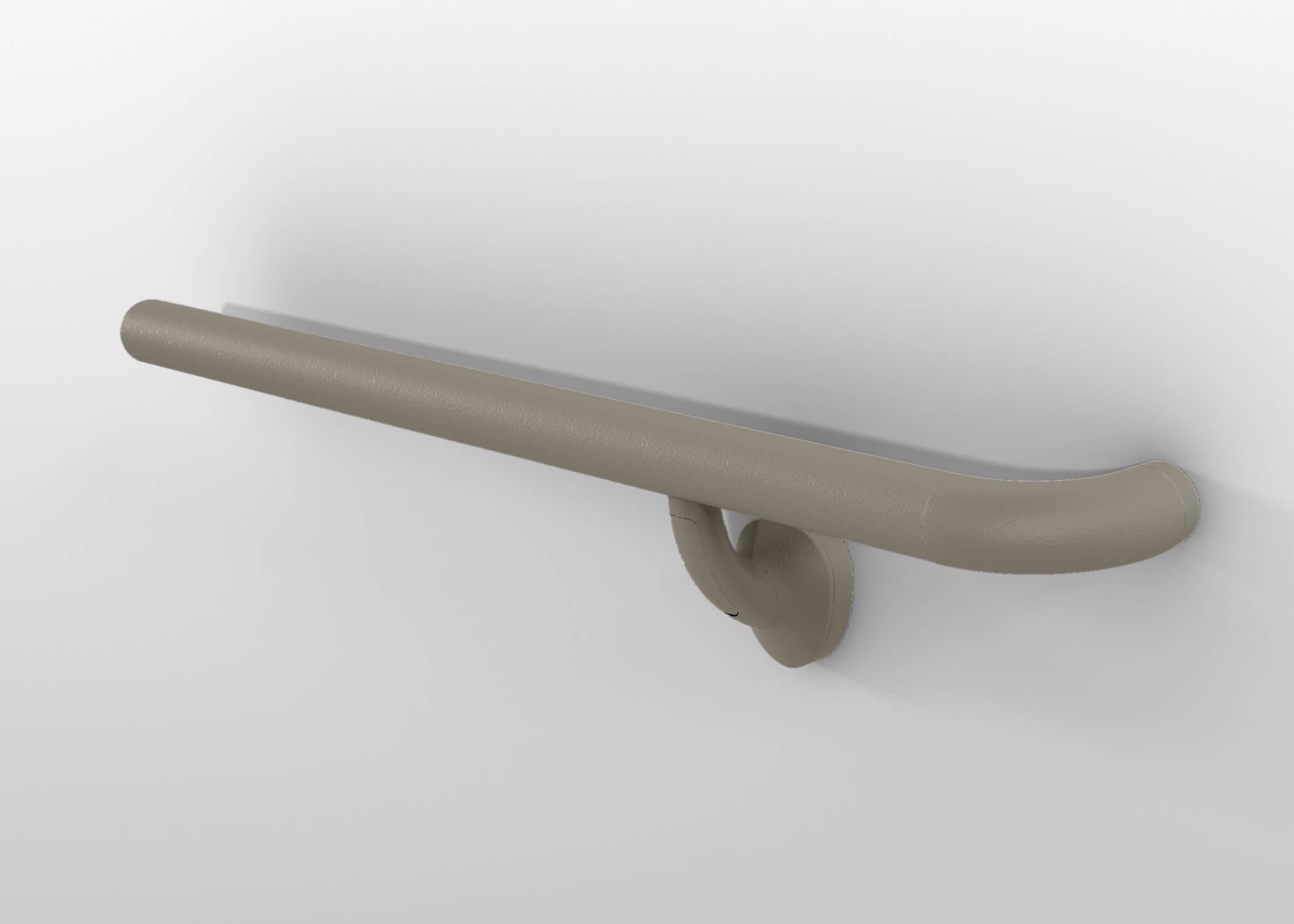

The 910 is a round handrail for areas that require support for residents, patients and visitors.

Jump to:

+44(0)7399586677 www.inprocorp.co.uk

Application

Suitable for use in all areas which require support for residents, patients and visitors.

Description

The 910 is a round handrail for areas that require support for residents, patients and visitors. The narrow profile of this handrail means it won't distract from the interior design of the space or appear as institutional as other supportive products.

Features and benefits:

Manufactured from safe, durable and recyclable PVC-U.
Designed to safeguard people from slips and falls.
Protects interior walls from everyday wear and tear, and longer lasting damage.
Round shape enables a firmer grip.
Minimal seams due to standard 3.66 m handrail lengths.
Two bracket styles are available to offer design flexibility.
Easy to install and maintain.
Mounted onto a 2 mm thick aluminium retainer.
Available in a variety of colours.
Cost effective.
Contains no phthalates, halogenated fire retardants or bisphenol-a (BPA).
Low fossil fuel consumption.

Approvals/ certifications:

GREENGUARD™ Indoor Air Quality Children and Schools certified.
May qualify for LEED™ and Green Globes™ credits – consult manufacturer for details.
Fungal and bacterial resistant (to ASTM G21 and G22).
Good impact resistance (to ASTM F-476).
Designed to meet the requirements of BS 8300: 2009 and A1: 2010.
Meets the Americans with Disabilities Act (ADA) and American National Standards Institute (ANSI) criteria.

Standard components (dependent on configuration):

Aluminium retainer: Provides structural stability and allows extended lengths of over 3.66 m.
Mounting brackets: Keeps hands a safe distance from the wall.
Cover: Available in a variety of colours to coordinate with other interior finishes.
Inside/ outside corners: Provides a smooth transition for corner applications.
Returns: Gives the handrail installation a professional look.
Reveal: Decorative element, standard with every woodland handrail order.

General information

Color Available in a range of colours.	-
Finish	Textured Handrail: Pebblette texture. Mounting brackets: Pebblette texture plastic. Satin Mounting brackets: satin stainless steel.
Material	PVC-U Aluminium Vinyl
WarrantyDescription	Lifetime Standard IPC Limited lifetime warranty against material and manufacturing defects.

Uniclass	Ss_25_60_05_35 Handrail systemsPrimary
CAWS	L30/570 Purpose-made handrails L30/580 Proprietary handrails L30/65 Purpose-made handrails L30/70 Proprietary handrails

Product range	Hand Rails

Specification data - Handrail systems

Handrails	PVC-U handrails.
Fixing to parent structure	Stainless steel hexagon head screws.
Samples required	Verification samples of handrail. 203 mm long, in full size profiles of each type and colour indicated.

Length	3.6 mm.
Retainer	2 mm thick aluminium.
Cover	Scratch and stain resistant rigid vinyl. 2 mm thickness.
Accessories/ Other requirements	Not required. 50 mm standoffs. Stainless steel inside/ outside corner (914SS). Stainless steel left/ right hand return (912SS). Stainless steel mounting bracket (909SS). Vinyl inside corner (915). Vinyl left return (912). Vinyl mounting bracket (908). Vinyl outside corner 135° (914135). Vinyl outside corner 90° (914). Vinyl right return (913). Show more
Colour/ Pattern	Brushed Nickel 5E026. Elements patterns: Light reflectance value (LRV): 17.5. Brushed Silver 5E025. Elements patterns: Light reflectance value (LRV): 37.1. Aloe 1057. Standard solid colours: Light reflectance value (LRV): 59.33. Beeswax 0249. Standard solid colours: Light reflectance value (LRV): 56.9. Black 0152. Standard solid colours: Light reflectance value (LRV): 4.5. Buoyant Blue 0132. Standard solid colours: Light reflectance value (LRV): 25.5. Burlap 0252. Standard solid colours: Light reflectance value (LRV): 43.4. Cabernet 0241. Standard solid colours: Light reflectance value (LRV): 7.7. Canary 1050. Standard solid colours: Light reflectance value (LRV): 77.77. Cardinal 0236. Standard solid colours: Light reflectance value (LRV): 11.2. Castle 0256. Standard solid colours: Light reflectance value (LRV): 10.8. Clam Shell 0154. Standard solid colours: Light reflectance value (LRV): 71.1. Cloudy 1059. Standard solid colours: Light reflectance value (LRV): 49.09. Clover 1058. Standard solid colours: Light reflectance value (LRV): 19.82. Crystal Jade 0187. Standard solid colours: Light reflectance value (LRV): 34.8. Designer White 0101. Standard solid colours: Light reflectance value (LRV): 78.7. Dove Gray 0106. Standard solid colours: Light reflectance value (LRV): 37.1. Eggshell 0111. Standard solid colours: Light reflectance value (LRV): 68.4. English Green 0125. Standard solid colours: Light reflectance value (LRV): 16.6. Honey 1053. Standard solid colours: Light reflectance value (LRV): 34.21. Light Beige 0109. Standard solid colours: Light reflectance value (LRV): 34.21. Mandarin 1054. Standard solid colours: Light reflectance value (LRV): 36.69. Orchid 1055. Standard solid colours: Light reflectance value (LRV): 17.36. Periwinkle 0272. Standard solid colours: Light reflectance value (LRV): 19.5. Pewter Gray 0107. Standard solid colours: Light reflectance value (LRV): 17.5. Point Blue 0165. Standard solid colours: Light reflectance value (LRV): 8.9. Purple Haze 0171. Standard solid colours: Light reflectance value (LRV): 15.8. River Rock 0351. Standard solid colours: Light reflectance value (LRV): 22.4. Sharkskin 0350. Standard solid colours: Light reflectance value (LRV): 42.2. Sherbet 1052. Standard solid colours: Light reflectance value (LRV): 51.3. Silver 0105. Standard solid colours: Light reflectance value (LRV): 48.1. Sunny Day 1051. Standard solid colours: Light reflectance value (LRV): 69.84. Taupe 0113. Standard solid colours: Light reflectance value (LRV): 52.0. Truffle 0284. Standard solid colours: Light reflectance value (LRV): 9.6. White Sand 0103. Standard solid colours: Light reflectance value (LRV): 77.0. American Walnut 0555. Woodlands patterns (W): Light reflectance value (LRV): 6.3. Applewood 0537. Woodlands patterns (W): Light reflectance value (LRV): 30.5. Boston Cherry 0534. Woodlands patterns (W): Light reflectance value (LRV): 9.2. Honeynut 0535. Woodlands patterns (W): Light reflectance value (LRV): 15.9. Natural Maple 0531. Woodlands patterns (W):Light reflectance value (LRV): 57.7. Santa Rosa 0532. Woodlands patterns (W): Light reflectance value (LRV): 37.3. Show more
Dimensions Grip size: 38 mm. Distance from wall: 76 mm.	-

Environmental information

Country of material origin	Italy
Recyclability Recyclable.	-
Recycled content	40 % Up to 40% recycled content in aluminium retainers.

Digital objects

Platform	Compatible	Version	Certified to
Revit	Revit 2017	1	2.0

Download now from NBS National BIM Library
