ZEN 701
Stainless steel bollard range.
Suitable for all areas, including car parks, town centres, shopping malls, hospitals and hotels.

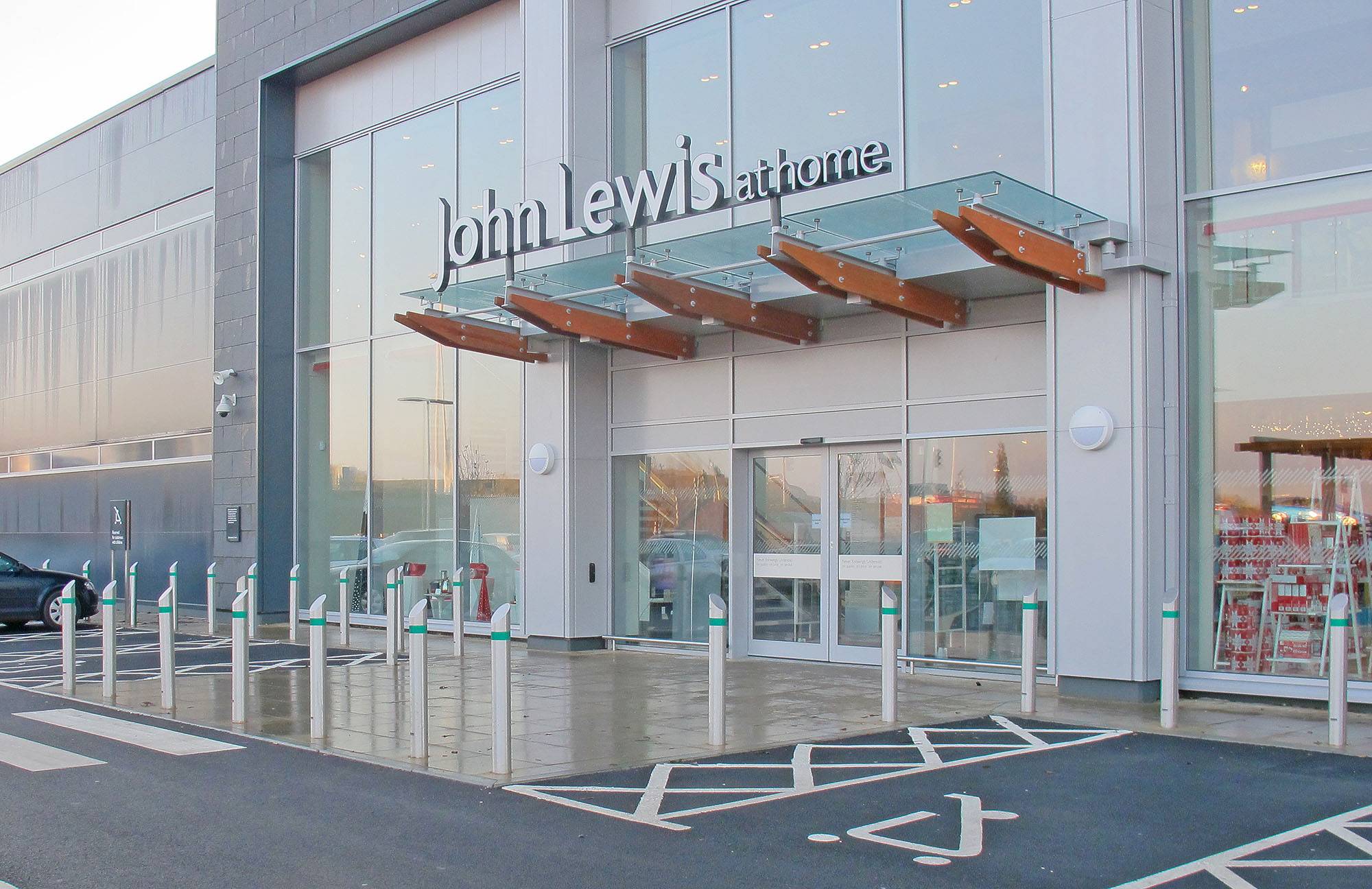

Stainless steel bollard with clean and simple aesthetics. It is low maintenance, hard wearing and 100% recyclable. This makes the Zenith suitable for all areas, including town centres, shopping malls, hospitals and hotels. The Zenith is available in either 115 or 170 mm diameter as standard. Furnitubes also offer Zenith Sloped Bollards with tops angled at 45° (specified separately).
Features and benefits:
Color | Silver |
Finish | Satin |
Material | Stainless steel Steel |
Shape | Circle Guidance for specification option: Cylindrical. |
Size | Manufacturer guidanceH x W (diameter). |
Height | 900 mm 1000 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/31 Bollards Q50/190 Bollards |
Product range |
Dimensions | |
Size and profile | Ø115 mm. |
Height | 900 mm. |
Length below ground | 300 mm. |
Top profile | Flat. |
Base | Base plated.Guidance for specification option: Not available for security bollards. Removable.Guidance for specification option: Not available for security bollards. Root fixed.Guidance for specification option: Standard. |
Finishes | |
Worked finishes | Satin polished. |
Applied finishes | Grade 304 (1.4301) stainless steel, satin polished.Grade 316 (1.4401) stainless steel, satin polished. |
Accessories | Not required.Base plate.Guidance for specification option: Not available for security bollards. CHNS.Guidance for specification option: Steel spiked chain link, galvanized. CHNP.Guidance for specification option: Steel plain chain link, galvanized. EBAB.Guidance for specification option: Steel M10 eye bolt, bright zinc plated. SLNK.Guidance for specification option: Steel split link, galvanized. TAPE C.Guidance for specification option: Red/ white chevron reflective tape. TAPE R.Guidance for specification option: Red reflective tape. TAPE W.Guidance for specification option: White reflective tape. TAPE Y.Guidance for specification option: Yellow reflective tape. |
Socket | Not required. Guidance for specification option: For base plated or root fixed bollards. FI75. Guidance for specification option: Small composite socket for 75 mm diameter bollards. FI115. Guidance for specification option: Large composite socket for 115 mm diameter. SOCKLS. Guidance for specification option: Large steel socket for bollards of at least 170 mm diameter. SOCKSS. Guidance for specification option: Small steel socket for bollards under 170 mm diameter. Manufacturer guidance
|
Etching | Not required. Required. Guidance for specification option: Insert drawing reference number if appropriate. |
Form | Standard bollard. |
Weight | 7 kg. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
