Application

Suitable for pedestrian barrier protection in public spaces.

Description

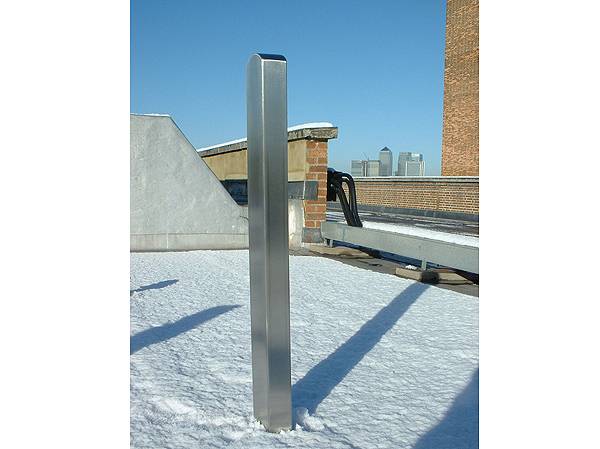

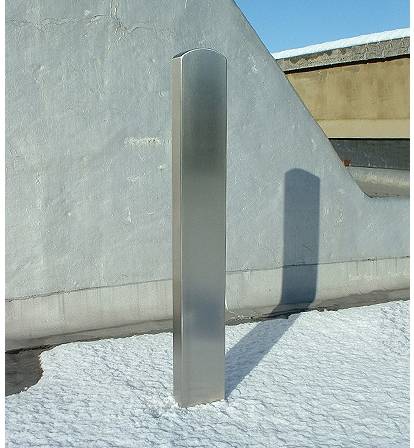

Stainless steel bollard, adapted from a bespoke design made for the Millennium. It combines a modern rectangular profile with a simple, elegant rounded top.


Features and benefits:

  • Available in grade 1.4301 (304) or 1.4401 (316) stainless steel, with a satin finish.

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Steel

Shape

Rectangle

Length

60 mm

Width

120 mm

Height

900 mm

Warranty description

One year

Uniclass

Pr_20_76_08_82 Stainless steel bollardsPrimary

CAWS

Q50/190 Bollards

Q50/196 Removable bollards

Q50/30 Street furniture

Product range

Bollards

Specification data - Stainless steel bollards

Dimensions

-

Size and profile

120 x 60 mm rectangular.

Guidance for specification option:

W x D.

Height

900 mm.

Length below ground

300 mm.

Top profile

Rounded.

Base

Root fixed.

Guidance for specification option:

Standard.

Base plated.

Removable.

Finishes

-

Applied finishes

Stainless steel, grade 1.4301 (304), satin polished.

Stainless steel, grade 1.4401 (316), satin polished.

Socket

Not required.

Guidance for specification option:

Base plated or Root fixed.

FI75.

Guidance for specification option:

Small composite socket for 75 mm diameter bollards.

FI115.

Guidance for specification option:

Large composite socket for 115 mm diameter bollards.

SOCKSS.

Guidance for specification option:

Small steel socket for bollards under 170 mm diameter.

SOCKLS.

Guidance for specification option:

Large steel socket for bollards of at least 170 mm diameter.

Manufacturer guidance

  • Standard steel socket hinge plate for locking with an FB14 padlock or similar.
  • F1 series sockets can accommodate standard size circular bollards, or the bollards can include a welded on circular spigot for large diameter circular bollards and other shapes, such as square.


Weight

9 kg.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

100
