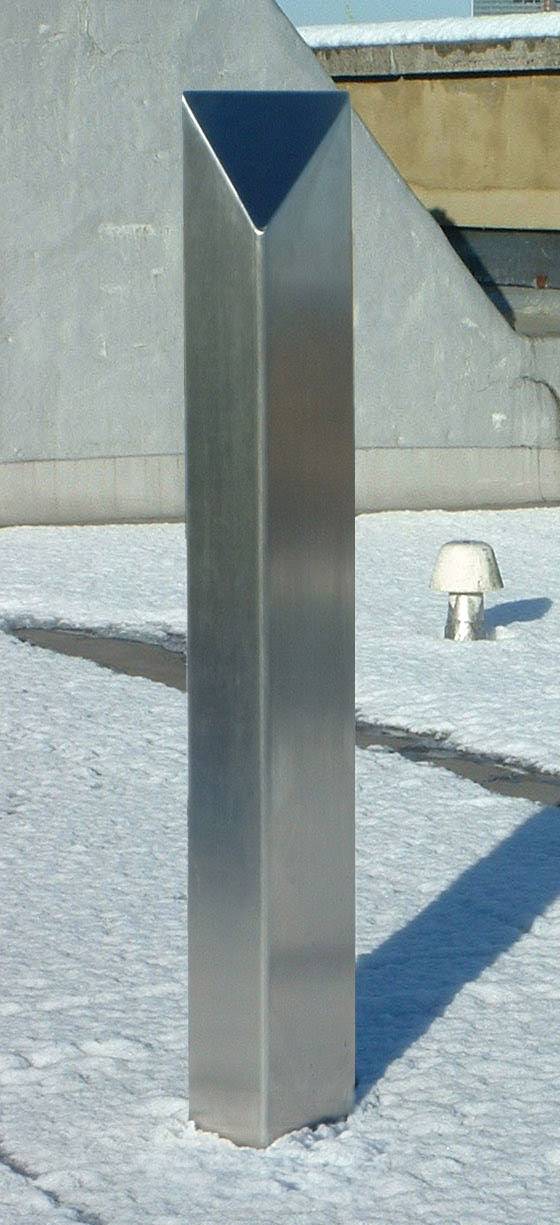

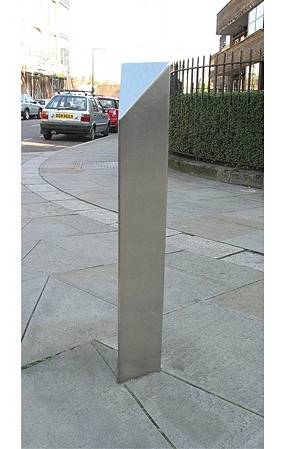

Pinnacle Bollard

Verified by manufacturer 3 months ago

Furnitubes International Ltd Third party certifications:
  • Made in Britain

    Made in Britain

    Certificate type

Triangular stainless steel bollard.

Jump to:
+44 (0)20 8378 3200 Website

Application

Suitable as pedestrian barrier protection for modern locations.

Description

Stainless steel polished bollard with triangular form, which serves as an enhancement to modern locations.


Features and benefits:

  • Available in grade 1.4301 (304) or 1.4401 (316) stainless steel with a satin polished finish.

General information

Color

Silver

Finish

Satin

Polished

Material

Stainless steel

Steel

Shape

Triangle

Guidance for specification option:

Triangular section.

Size

900 x 150 mm

Manufacturer guidance

H x W.

Warranty description

One year

Uniclass

Pr_20_76_08_82 Stainless steel bollardsPrimary

CAWS

Q50/190 Bollards

Q50/196 Removable bollards

Q50/30 Street furniture

Product range

Bollards

Specification data - Stainless steel bollards

Dimensions

-

Size and profile

150 mm wide, triangular.

Height

900 mm.

Length below ground

300 mm.

Top profile

Flat top with triangular truncation.

Base

Root fixed.

Guidance for specification option:

Standard.

Removable.

Finishes

-

Applied finishes

Stainless steel, grade 1.4301 (304), satin polished.

Stainless steel, grade 1.4401 (316), satin polished.

Socket

Not required.

Guidance for specification option:

Base plated or Root fixed.

FI75.

Guidance for specification option:

Small composite socket for 75 mm diameter bollards.

FI115.

Guidance for specification option:

Large composite socket for 115 mm diameter bollards.

SOCKSS.

Guidance for specification option:

Small steel socket for bollards under 170 mm diameter.

SOCKLS.

Guidance for specification option:

Large steel socket for bollards of at least 170 mm diameter.

Manufacturer guidance

  • Standard steel socket hinge plate for locking with an FB14 padlock or similar.
  • F1 series sockets can accommodate standard size circular bollards, or the bollards can include a welded on circular spigot for large diameter circular bollards and other shapes, such as triangular.


Weight

10 kg.

Sustainability data

Country of product manufacture

United Kingdom

Third party certifications

Made in Britain

Made in Britain

Made In Britain

Similar products from Furnitubes International Ltd

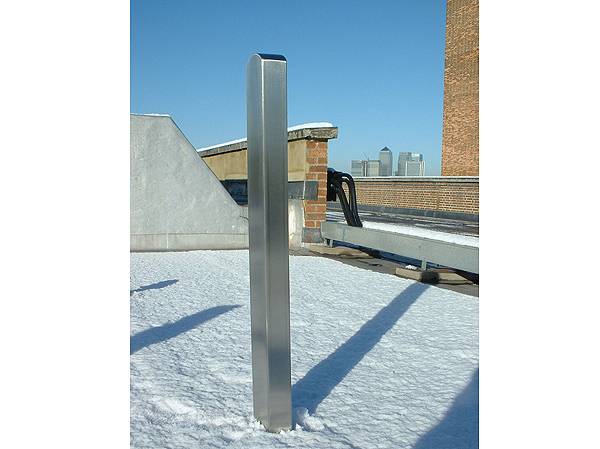

Millennium Bollard

Millennium Bollard

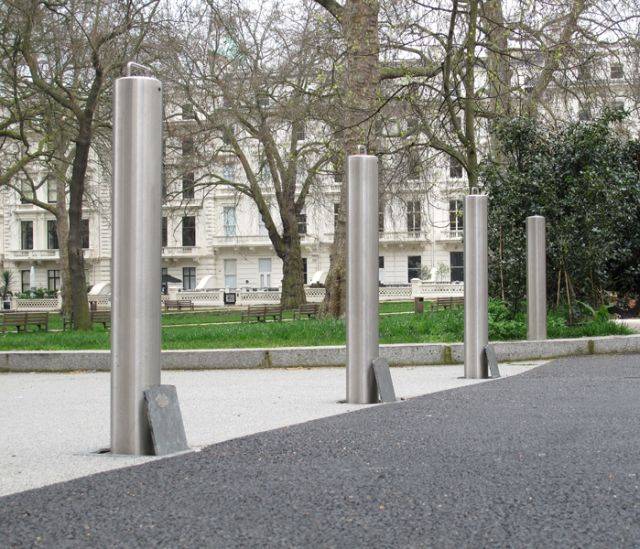

Telescopic Bollards

Telescopic Bollards

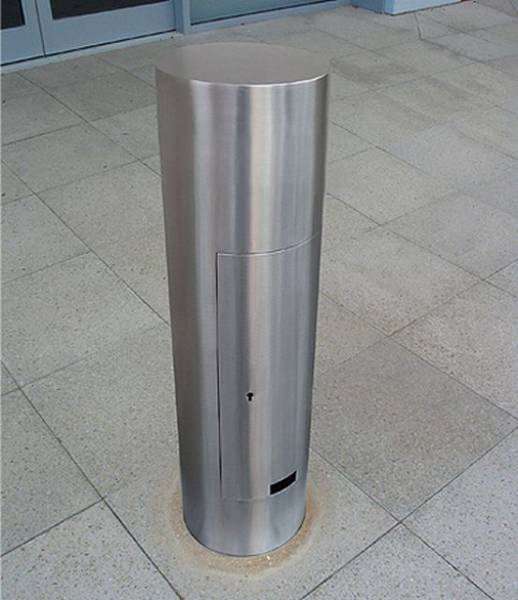

Zenith Service Bollard

Zenith Service Bollard

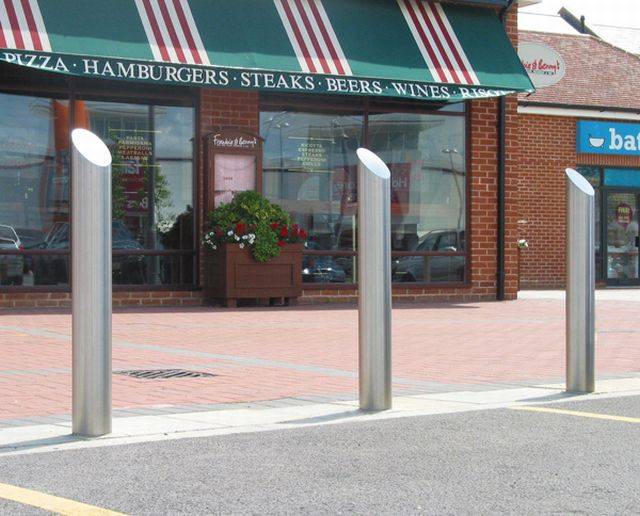

Zenith Sloped Bollard
