Yorktone Textured Flag Paving
Verified by manufacturer 4 months ago

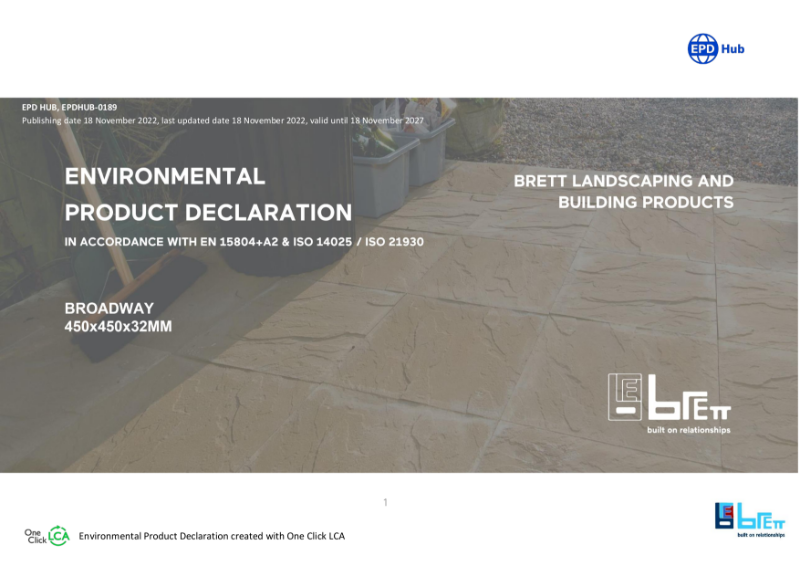

EPD
Certificate type
Brett Yorktone commercial flag paving is a range of textured paving flags available in three colours. This enables designers to create a modern contemporary aesthetic.
Application
Suitable for both pedestrian and lightly trafficked vehicular applications when designed and installed in accordance with the BS 7533 suite of standards.
Description
Yorktone textured flag paving has a fine grained surface which helps designers create a fresh contemporary feel for the urban environment whilst the square edge detail without a chamfer provides a safe, flat surface for users.
Yorktone textured flag paving is designed to be laid in conjunction with other flag paving products, such as tactile paving, to produce a modular solution.
Standards:
Brett Landscaping operate a number of independently audited management systems:
- BS EN ISO 9001: 2008 Quality Management System.
- BS EN ISO 14001: 2004 Environmental Management System.
- OHSAS 18001: 2007 Health and Safety Management System.
- BES 6001 Responsible Sourcing of Construction Products.
General information
Color | Grey Yellow |
Finish | Textured |
Material | Concrete Guidance for specification option: Precast (hydraulically pressed). |
Shape | Square Rectangle |
Length | 400 mm 450 mm 600 mm |
Width | 300 mm 400 mm 450 mm 600 mm |
Height | 50 mm 65 mm |
Uniclass | |
CAWS | Q25/31 Concrete flag paving systems Q25/315 Concrete flags |
Product range |
Specification data - Concrete flags
Standard | To BS EN 1339. |
Physical properties | |
Colour | Buff.Charcoal.Natural. |
Finish | Textured surface with square edge detail. |
Profile | |
Flag type | Regular plan form. |
Dimensions and associated tolerances | |
Nominal sizes | 400 x 400 x 65 mm.450 x 450 x 50 mm.600 x 300 x 50 mm.600 x 450 x 50 mm.600 x 600 x 50 mm. |
Tolerances on plan dimension and thickness (nominal) | Class 3 - Thickness: ±2 mm; Plan size: ±2 mm. |
Arrises | Square edge, textured. |
Weathering resistance | Class 3. |
Abrasion resistance | Class 3.Guidance for specification option: <23 mm. |
Skid resistance | ≥ 55 - Potential for slip - Low. |
Bending strength | ≥ 5.0 Mpa. |
Breaking load class | > 4.5 KN. |
Type | Hand lay. |
Third-party certification | CE marked. |
Water absorption | Class 2. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete Guidance for specification option: Precast (hydraulically pressed). |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 15.17 kg CO₂ eq/m² |
Recyclability | 100% |
Expected Life | 40 year |
Third party certifications
Third party certifications
Literature

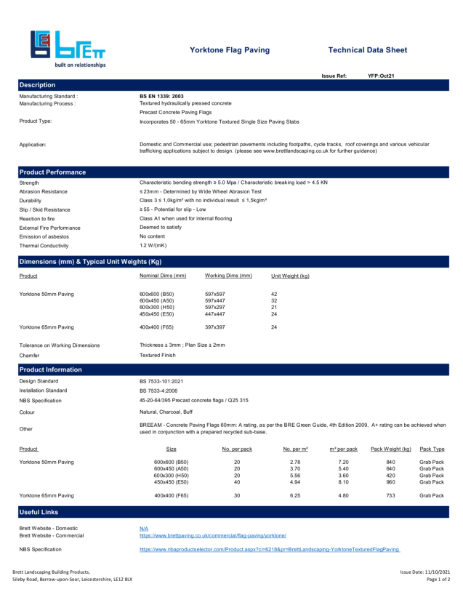

Yorktone Flag Paving TDS Oct 21
