British Standard Paving
Verified by manufacturer 4 months ago
EPD
Certificate type
British Standard flag paving offers a functional, durable, cost effective integrated flag range complying with British Standards.
Application
Domestic and commercial use: pedestrian pavements including footpaths, cycle tracks, roof coverings and various vehicular trafficking applications subject to design.
Description
British Standard flag paving is the established choice for both pedestrian and vehicular overrun areas. They provide a slip-resistant surface and are available as standard in natural grey British Standard flag paving is designed to be laid in conjunction with other flag paving products, such as tactile paving, to produce a modular solution.
Standards:
Brett Landscaping operate a number of independently audited management systems:
- BS EN ISO 9001: 2008 Quality Management System.
- BS EN ISO 14001: 2004 Environmental Management System.
- OHSAS 18001: 2007 Health and Safety Management System.
- BES 6001 Responsible Sourcing of Construction Products.
General information
Color | Grey |
Finish | Textured Guidance for specification option: Pimpled finish. |
Material | Concrete Guidance for specification option: Precast (hydraulically pressed). |
Shape | Square |
Length | 450 mm 600 mm |
Width | 450 mm 600 mm |
Height | 50 mm |
Uniclass | |
CAWS | Q25/31 Concrete flag paving systems Q25/315 Concrete flags |
Specification data - Concrete flags
Standard | To BS EN 1339: 2003. |
Physical properties | |
Colour | Natural.Guidance for specification option: Grey. |
Finish | Coarse textured. |
Profile | |
Flag type | Regular plan form. |
Arrises | Square. |
Dimensions and associated tolerances | |
Nominal sizes | 450 x 450 x 50 mm.600 x 600 x 50 mm.Manufacturer guidanceOther sizes available as made to order. |
Tolerances on plan dimension and thickness (nominal) | Thickness: ±3 mm ; Plan size: ±2 mm. |
Arrises | Square. |
Weathering resistance | Class 3. |
Abrasion resistance | Class 3.Guidance for specification option: ≤23 mm; determined by Wide Wheel Abrasion test. |
Slip resistance | ≥55; Potential for slip: Low. |
Bending strength | Class 2.Guidance for specification option: Characteristic bending strength: ≥5.0 MPa. |
Breaking load class | 45.Guidance for specification option: Characteristic breaking load:>4.5 kN. |
Recycled content (minimum) | Guidance for specification option: Manufacturer's standard. |
Type | Hand lay. |
Third-party certification | CE marked. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete Guidance for specification option: Precast (hydraulically pressed). |
Manufacturing plant location | |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 15.07 kg CO₂ eq/m² |
Recyclability | 100% |
Expected Life | 40 year |
Third party certifications
Third party certifications
Literature
Specialist Kerbs & Permeable Paving

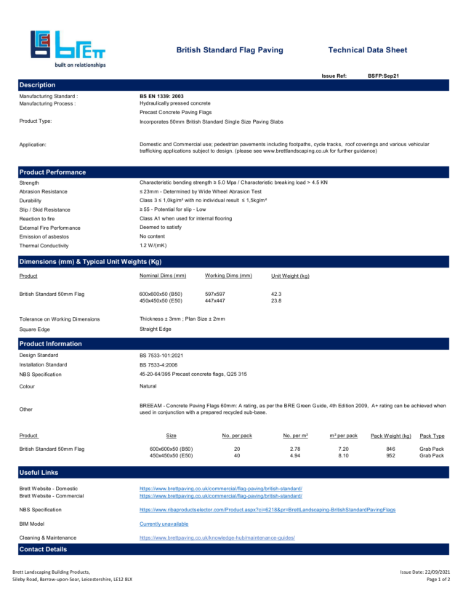

British Standard Paving TDS Sept 21
