Compare

Stamford Flag Paving

Name: Stamford Flag Paving
Brand: Brett Landscaping
SKU: vqTuA53E9L2HEjbo3LzLTF

Verified by manufacturer 5 months ago

Brett Landscaping

32 mm-thick precast concrete slab paving for domestic use.

Jump to:

+44 (0)345 60 80 570 Website

Application

Domestic use only: pedestrian pavements including home patios, pathways and internal floor coverings. They are not designed for vehicular trafficking or commercial applications.

Description

32 mm-thick precast concrete slab paving for domestic use. Stamford Ultra also available (specified separately).

Standards:

Brett Landscaping operate a number of independently audited management systems:

BS EN ISO 9001: 2008 Quality Management System.
BS EN ISO 14001: 2004 Environmental Management System.
OHSAS 18001: 2007 Health and Safety Management System.
BES 6001 Responsible Sourcing of Construction Products.

General information

Color	Grey Guidance for specification option: Grey with black flecks. Yellow
Finish	Textured
Material	Concrete Guidance for specification option: Precast (wet cast, vibrated).
Shape	Square
Length	450 mm 600 mm
Width	450 mm 600 mm
Height	32 mm

Uniclass	Pr_25_93_60_16 Concrete flagsPrimary
CAWS	Q25/52 Concrete flags Q25/315 Concrete flags

Specification data - Concrete flags

Standard	To BS EN 1339: 2003.
Physical properties	-
Colour	Buff. Natural. Charcoal.
Finish	Manufacturer's standard.
Profile	-
Flag type	Regular plan form.
Dimensions and associated tolerances	-
Nominal sizes	450 x 450 x 32 mm. 600 x 600 x 32 mm.
Tolerances on plan dimension and thickness (nominal)	Thickness: ±3 mm; Plan size: ±2 mm.
Arrises	Chamfered.
Weathering resistance	Class 1.
Slip resistance	Deemed to satisfy.
Bending strength	≥5.0 MPa. Guidance for specification option: Characteristic.
Breaking load class	>4.5 kN. Guidance for specification option: Characteristic.

Type	Hand lay.
Third-party certification	CE marked.
ThermalConductivity	1.2 W/m·K.

Literature

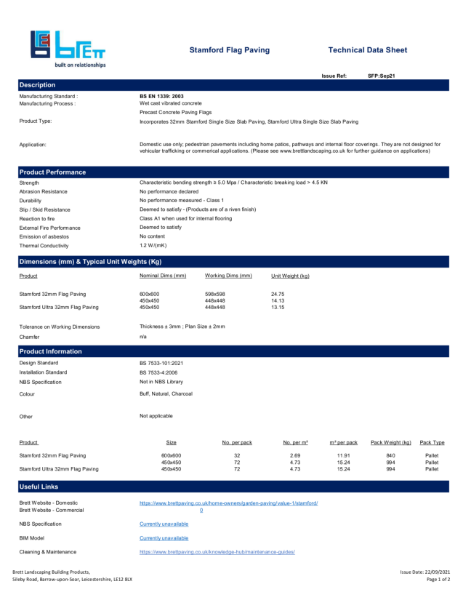

Stamford Paving TDS Sept 21

Stamford Flag Paving

Application

Description

General information

Color

Finish

Material

Shape

Length

Width

Height

Uniclass

CAWS

Specification data - Concrete flags

Standard

To BS EN 1339: 2003.

Physical properties

Colour

Buff.

Natural.

Charcoal.

Finish

Manufacturer's standard.

Profile

Flag type

Regular plan form.

Dimensions and associated tolerances

Nominal sizes

450 x 450 x 32 mm.

600 x 600 x 32 mm.

Tolerances on plan dimension and thickness (nominal)

Thickness: ±3 mm; Plan size: ±2 mm.

Arrises

Chamfered.

Weathering resistance

Class 1.

Slip resistance

Deemed to satisfy.

Bending strength

≥5.0 MPa.

Breaking load class

>4.5 kN.

Type

Third-party certification

ThermalConductivity

Literature
