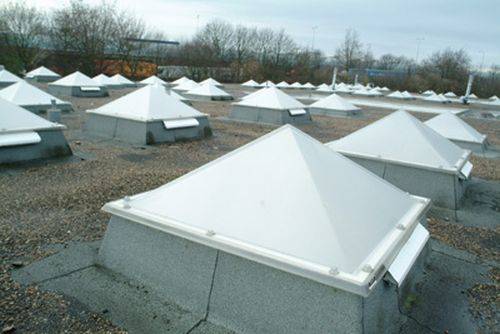

X5 Rooflight

Name: X5 Rooflight
Brand: VELUX Commercial
SKU: 38xcqA6XqjmDkhk3PcomPm

Verified by manufacturer 2 months ago

VELUX Commercial

Uninsulated, aluminium framed kerb with choice of glazing types.

Jump to:

+44 (0) 1592 778916 Website

Application

Flat roof 0–15°.

Description

Features and benefits:

Wide range of bespoke sizes from 600x600mm to 1800x2400mm.

Operation and ventilation options include;

Fixed
Access hatch
140 degree opening AOV (1500mm maximum span/opening width)
Electrically operated hinged and vertical lift natural vent
Kerb venting, Hinged Vent, Manual, Hit and Miss Vent.
Mechanical Ventilation with Fan Unit

Glazing options (Developed U-Values shown) include;

Polycarbonate:

Double Skin Polycarbonate 2.7 W/m²K/ Overall 3.6 W/m²K
Single Skin Polycarbonate 5.3 W/m²K/ Overall 5.4 W/m²K

Insulated Solid Lid

Insulated Solid Lid (single skin aluminium with 16mm structured polycarbonate) 2.2 W/m²K/ Overall 3.3 W/m²K

Various fixing/foot types depending on application available as splayed or vertical include;

Type A Foot – to suit flat board insulation
Type B Foot – To suit laid to falls
Type C Foot - Direct to deck – no insulation
Type D - Adaptor kerb – Fixing to a builders kerb or upstand
Type E Foot - Fixing to new timber ground
Type F – Sleeve Over existing kerb
Type G - for fixing to an existing kerb or plinth

General information

Color	White Other Guidance for specification option: (RAL colours, available on request).
Finish	Powder-coated Guidance for specification option: (PPC)
Material	Aluminium Polycarbonate
Shape	Square Rectangle Circle
Warranty description	Guidance for specification option: Available on request

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/45 Rooflights L10/460 Rooflights

Specification data - Framed rooflights

Form	Circular (CIR). Guidance for specification option: Polycarbonate only. Dome (DM). Guidance for specification option: Polycarbonate only. Flat glass (GL). Pyramid (PY). Guidance for specification option: Polycarbonate only.
Size	Up to 1200 x 2400 mm. Guidance for specification option: Consult manufacturer for options and insert requirements. Please note that available size will depend upon other specification choices made, including ventilation and application.
Product performance	-
Fire performance	-
Fire resistance	To BS 476, Part 7: Class 1, AA.
Reaction to fire	EN 13501-1: Class B-s1,d0. Guidance for specification option: Surface spread of flame: EN 13501-5 + A1: Broof (t4).
Whole window U-value	4 W/m²K.
Frame	-
Material	Aluminium.
Finish	-
Coating	Polyester powder-coating.
Colour	White. RAL. Guidance for specification option: Consult manufacturer and insert requirements.
Film thickness (minimum)	0.6 µm.
Glazing or infill	-
Type	Polycarbonate. Guidance for specification option: Not available with Flat glass (GL). Glass. Guidance for specification option: Flat glass (GL) only.
Construction	Single skin (Code 01). Guidance for specification option: Not available with Flat glass (GL). Double skin (Code 02). Guidance for specification option: Not available with Flat glass (GL). Single layer. Guidance for specification option: Glass only.
Colour	Bronze. Guidance for specification option: Reduces light transmission and solar gain. Clear. Guidance for specification option: Offers high light transmission and allows full vision of views or objects. Diffused. Guidance for specification option: Offers high light transmission and prevents vision of views and objects. Opal. Guidance for specification option: Prevents vision of views and objects.
Coating	Manufacturer's standard.
Integral kerb	Aluminium. Guidance for specification option: Consult manufacturer for details.
Operation	-
Type	Hit and Miss vent. Linear motor vent. Permanent vent. Controlled Louvre vent.
Control	Manual. Electric, 230 V. Guidance for specification option: Consult manufacturer for details.
Accessories	Intruder grid – Code IG Guidance for specification option: 3 mm diameter, fully welded, steel mesh in a 75 mm grid, which is fixed between the upstand and the roof structure. The grid will resist entry even when the rooflight has been compromised or removed. None.
Execution	Installation of framed rooflights.

Sustainability data

Country of product manufacture	United Kingdom
Material	Aluminium Polycarbonate
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	kg CO₂ eq/m² Self declared Guidance for specification option: Meets BRE EN 15804:2012+A1:2012
