Continuous Thermoformed Rooflights
Verified by manufacturer 2 months ago

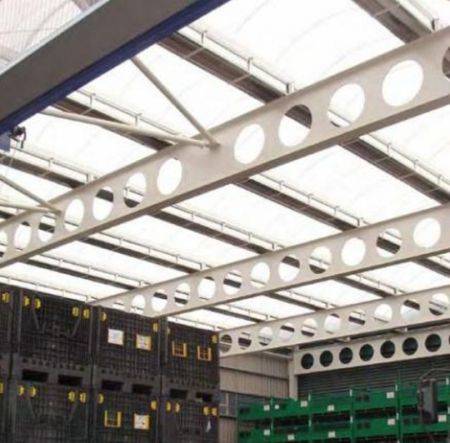

Continuous polycarbonate rooflights which create thermoformed units, joined without the use of glazing bars.
Application
Flat roof 0–15°.
Description
Polycarbonate linear rooflights which create thermoformed units, joined without the use of glazing bars. Available in widths up to 2.4 m, with no limit on length.
Features and benefits:
- Triple glazed (1.8W/m2K) as standard, and formed from enhanced UV-protected polycarbonate with vented airspaces to satisfy the requirements of Part L of the Building Regulations.
- Single (5.3W/m2K) and double-skin (2.7W/m2K) options (which fall outside Part L) are also available.
- Supplied in two options: as glazing only, or with a roof attachment.
- Non-fragile – achieves a Class B rating to ACR[M]001:2019.
General information
Color | Bronze Guidance for specification option: Reduces light transmission and solar gain. Clear Guidance for specification option: Offers high light transmission and allows full vision of views or objects. |
Material | Polycarbonate |
Shape | Square Rectangle |
Length | Bespoke |
Width | 600 mm 900 mm 1200 mm 1500 mm 1800 mm |
Warranty description | Guidance for specification option: Available on request |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Specification data - Framed rooflights
Form | Linked dome.Linked pyramid.Thermoformed barrel vault. |
Size | 600 mm wide x length.900 mm wide x length.1200 mm wide x length.1500 mm wide x length.1800 mm wide x length.2100 mm wide x length.2400 mm wide x length. |
Product performance | |
Fire performance | |
Fire resistance | To BS 476, Part 7: Class 1, AA. |
Reaction to fire | EN 13501-1: Class B-s1,d0.Guidance for specification option: Surface spread of flame: EN 13501-5 + A1: Broof (t4). |
Whole window U-value | 1.8 W/m²K.Guidance for specification option: Triple skin polycarbonate. |
Glazing or infill | |
Type | Polycarbonate |
Construction | Double skin (Code 02).Single skin (Code 01).Triple skin (Code 03).Guidance for specification option: Standard. |
Colour | Bronze.Guidance for specification option: Reduces light transmission and solar gain. Clear.Guidance for specification option: Offers high light transmission and allows full vision of views or objects. Diffused.Guidance for specification option: Offers high light transmission and prevents vision of views and objects. Opal.Guidance for specification option: Prevents vision of views and objects. |
Coating | Manufacturer's standard. |
Integral kerb | Guidance for specification option: Available on request, PVC-U or aluminium. Consult manufacturer and insert requirements. |
Operation | |
Type | Fixed. |
Accessories | None.Intruder grid – Code IG.Guidance for specification option: 3 mm diameter, fully welded, steel mesh in a 75 mm grid, which is fixed between the upstand and the roof structure. The grid will resist entry even when the rooflight has been compromised or removed. |
Execution | Installation of framed rooflights. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Polycarbonate |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | kg CO₂ eq/m² Self declared Guidance for specification option: Meets BRE EN 15804:2012+A1:2012 |
Recyclability | 95% |
