VELUX Glazing Panels Double Glazing - Roof Light
Verified by manufacturer 2 months ago
A bespoke double-glazed glass roof system with slim profiles for maximum daylight influx.
Application
The panels can be configured in multiple solutions by combining the various installation options with gable and corner solutions. The bespoke nature of the system enables the design of almost any roof light for public and commercial buildings. Also suitable for refurbishment projects of public and commercial buildings.
Description
The glazing panels enable the creation of a wide range of roof light designs, from flush installations in a pitched roof to pyramids on a flat roof.
Features and benefits:
- Flexible when designing, including shaped panels.
- Prefabricated yet bespoke.
- Aluminium profiles are thermally broken with a polyurethane core.
- Non-protruding glass solution in a sloped roof, creating a clean design.
- Allows maximum natural light into rooms.
- Panels are available in fixed and venting units. There is no visible difference between a fixed and venting panel from the outside.
- Smoke venting panels in accordance with EN 12101-2.

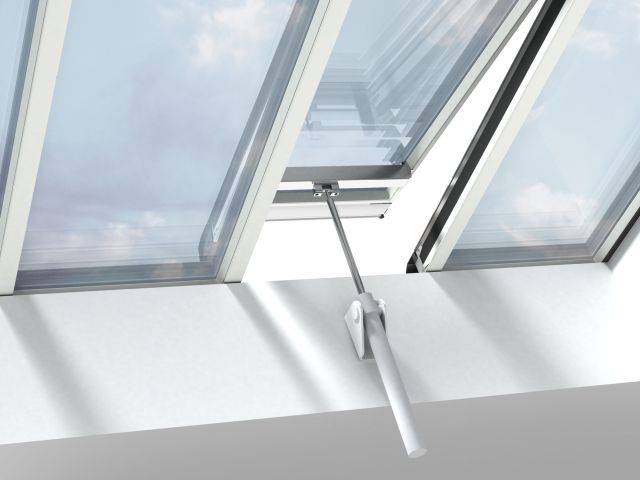

- All venting panels are top-hung, and are available in comfort and smoke ventilation versions.
- Individual panel is prefabricated off site; it is delivered assembled, with the glazed unit sealed into the frame.
- Maintains low thermal transmittance (U-values), helping to control costs.
- Gaskets sit between panels and at junctions around the perimeter of the glazing, providing a thermal and airtight seal.
- Can be tailored to suit project requirements.
General information
Color | Grey White Black |
Finish | Powder-coated Anodized |
Material | Polyurethane Aluminium |
Width | 264 mm Guidance for specification option: Minimum. 1200 mm Guidance for specification option: Maximum. |
Height | 260 mm Guidance for specification option: Minimum. 2900 mm Guidance for specification option: Maximum. |
Warranty description | Ten year Guidance for specification option: On modules and flashings. Three year Guidance for specification option: On actuators and electrical components. |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights L10/490 Roof ventilators |
Specification data - Framed rooflights
Form | Double glazing panel. |
Size | 2 m².Guidance for specification option: Maximum panel area. |
Product performance | |
Fire performance | |
Reaction to fire | To EN 13501-1 Class B, S1 d0. |
Whole window U-value | 1.8 W/m²K. |
Frame | |
Material | Aluminium. |
Finish | |
Coating | Anodized.Polyester powder coated. |
Colour | Not required.White RAL 9010.Black RAL 9005.Anthracite grey RAL 7016. |
Glazing or infill | |
Type | Toughened outer glass and laminated inner safety glass solution.Float outer glass and laminated inner safety glass solution. |
Construction | Double glazed. |
Colour | Not required.White RAL 9010.Black RAL 9005.Anthracite grey RAL 7016. |
Coating | Not required.Low E coating.Sun 1.Guidance for specification option: light sun protection |
Integral kerb | Timber.Structural steel.Concrete. |
Operation | |
Type | HFC, Fixed.HVC, Smoke ventilation.HVC, Natural ventilation. |
Control | Not required.Chain actuator. |
Accessories | Not required.Control Unit (WUC 102, WCC 310/320).Control Switch (WSK 102/103).Rain and wind sensor set (WLA 330).Rain Sensor (WLA 331). |
Execution | Installation of framed rooflights. |
Width | Guidance for specification option: Width between 264—1200 mm insert requirements. |
Height | Guidance for specification option: Height between 260—2900 mm insert requirements. |
Sustainability data
Country of product manufacture | Lithuania |
Material | Polyurethane Aluminium |
Case studies

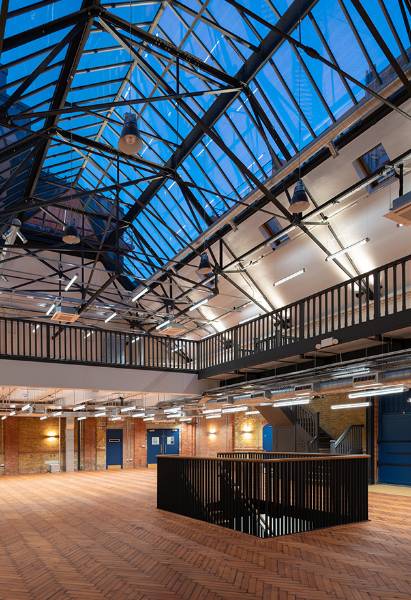

The Drill Hall
