Working platform and walkway system - Ascent Aluminium Walkway for standing seam roofs

Name: Working platform and walkway system - Ascent Aluminium Walkway for standing seam roofs
Brand: Safety Fabrications Limited
SKU: uGzkPwEFs6N8RV15DtKHgk

Verified by manufacturer 4 months ago

Ascent Aluminium Walkway System for Flat Roofs

Safety Fabrications Limited

Third party certifications:

Member of UK Slip Resistance Group (UKSRG)
Certificate type
TUV - Safety and Quality Report
Certificate type

Working platform and walkway system - the Ascent Aluminium walkway creates a level, anti-slip, free draining walking surface and can be supplied both with or without handrail. UKCA/ CE Manufactured.

Jump to:

BOS

+44 (0)1142852203 Website

Application

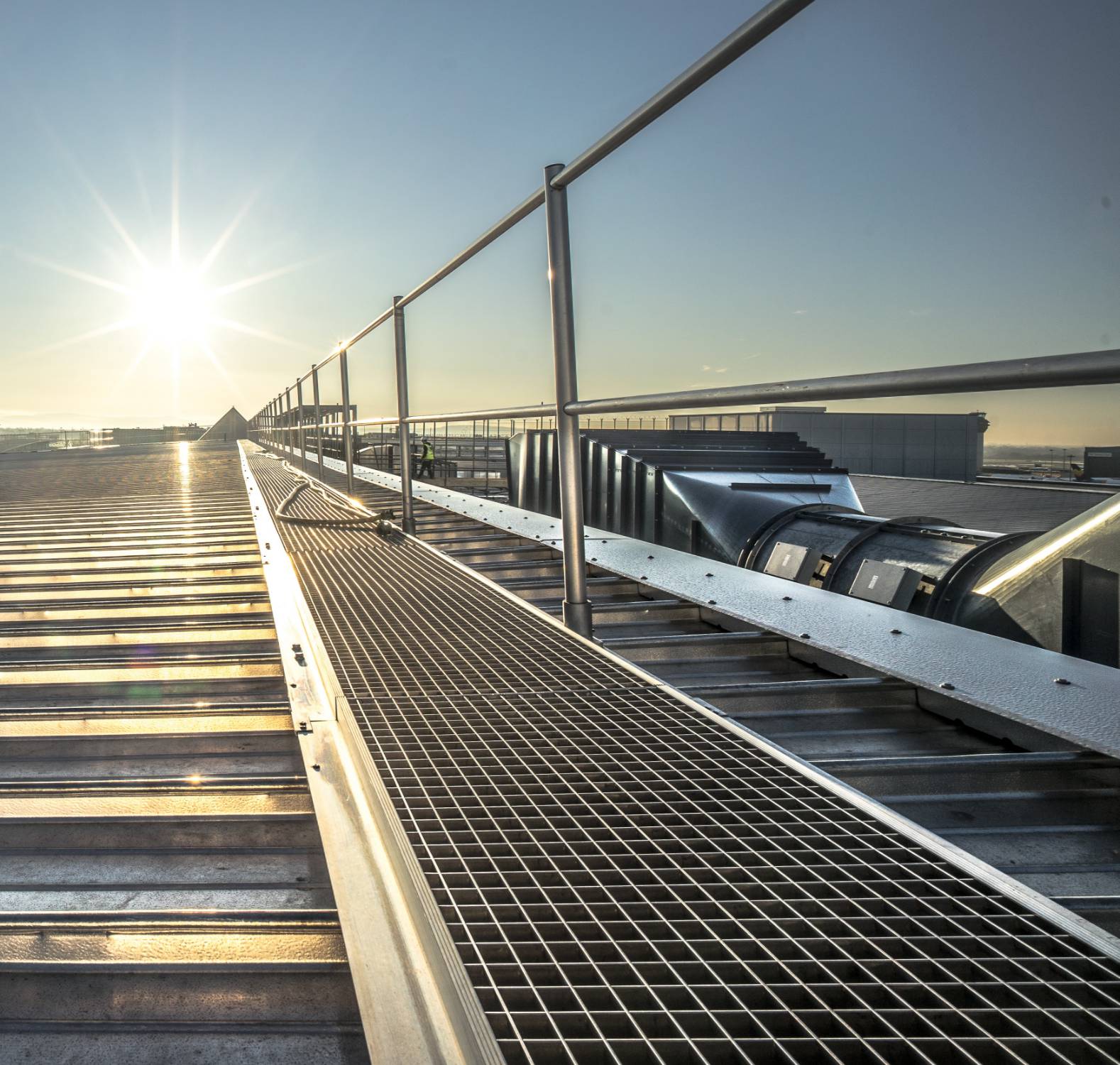

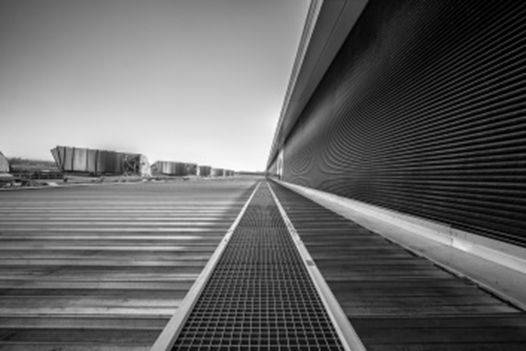

The Ascent Aluminium walkway is designed to create safe access for personnel crossing or working on a roof surface. On Aluminium standing seam roofs the walkway creates a level free-draining surface which both protects the roof from foot traffic and where fitted with guardrail provides collective protection to the worker. The walkway is affixed to the standing seam roof via non-penetrative standing seam clamps and can be levelled / stepped to suit the pitvch of the roof.

Description

The Ascent Aluminium walkway for standing seam roofs is a standardized modular system, allowing the design of anti-slip compliant walkways for access on all major standing seam roofing systems. A guardrail system can be added to either one or both sides of walkway. The Ascent walkway can be levelled to create a level anti-slip walking surface. The Anti-slip walkway can be stepped to aid passage up a steep roof slope.

Features and benefits:

The walkway can be configured with a handrail to withstand a loading of either 0.36 kN (general duty) or 0.74 kN (heavy duty) and can be supplied with an optional toeboard if required.
The system can achieve these loadings without the need for additional bracing, allowing the walkway to be placed against the area to be accessed.
UKCA / CE marked
Designed & Tested in accordance with BS EN 516:2006 Class 1 Type C.
Designed & Tested in accordance with BS EN ISO 14122-3:2016 where a handrail is fitted
Designed & Tested in accordance with BS 4592-0:2006+A1:2012 for loadbearing and BS 7976-2:2002+A1:2013 for anti-slip.
With or without handrail.
Non-penetrative support system.
Standardized modular system roof walkway system.
Can be supplied with a range of non-penetrative fixing kits to suit different standing seam roof types.

General information

Color	- Manufacturer guidance Can be powder-coated to meet clients requirements. Consult manufacturer and insert requirements.
Finish	Anti-slip Anti-skid Powder-coated Anodized
Material	Aluminium Guidance for specification option: Milled.
Length	2000 mm
Width	760 mm
Height	46 mm
Warranty description	20 year Manufacturer guidance Seek manufacturer guidance on terms & conditions of warranty

Uniclass	Ss_35_10_30_95 Working platform and walkway systemsPrimary Ss_35_10_30/510 Custom-made fixed ladder, working platforms, walkways and industrial stair components Pr_40_70_75_96 Working platforms
CAWS	L35/360 Working platforms L30/460 Walkways L35/140 High level walkway system L35/160 Working platform system L35/340 High level walkways L30/45 Ramps/ walkways

Specification data - Working platform and walkway systems

Decking and flooring	-
Material	Aluminium.
Balustrade guarding system	- Manufacturer guidance Guardrails can be designed to have closed, open or fixed end details dependent on requirements, consult manufacturer's literature for more information.
Handrail system	Not required. Both sides. One side. Guidance for specification option: Insert requirement.
System accessories	None. Aluminium Standing seam roofs. Guidance for specification option: Fixing kit. Metal profile, built up on site and composite roofs. Guidance for specification option: Fixing kit. Flat, single ply membrane, bitumous and felt roofs. Guidance for specification option: Fixing kit. Tiled and slate roofs. Guidance for specification option: Fixing kit. Toeboars. Self-closing gate.

Design	As drawing. Guidance for specification option: Include details of length (in metres), number of corners, number of T-junctions.
Fixings	- Manufacturer guidance Non-penetrative - dependent upon roof covering type. Type: Walkway feet. Spacing: maximum 1600 mm.
Standards	To BS EN 516:2006 Class 1 Type C.
Loading	0.36 kN (general duty). 0.74 kN (heavy duty).
ShapeType	Straight, corner and T junction.
Suitable for	Flat roof.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	8.3 kg CO₂ eq/unit Self declared
Recyclability	100
Recycled content As defined in clause 7.8 of BS EN ISO 14021	85 %
