Nylon/ Bright chrome coated wire shelving system.
Application
Nylon Coated Wire Racking:
- Coldrooms / Freezer rooms.
- Wet Storage.
- Chemical areas.
- Dry stores.
- Kitchen / potwash area.
Chrome Wire Racking:
- Drystores.
- Display / retail front of house.
- Glass / crockery.
- Linen / laundry.
- Unsuitable for chillers / wet / humid environments.
Description

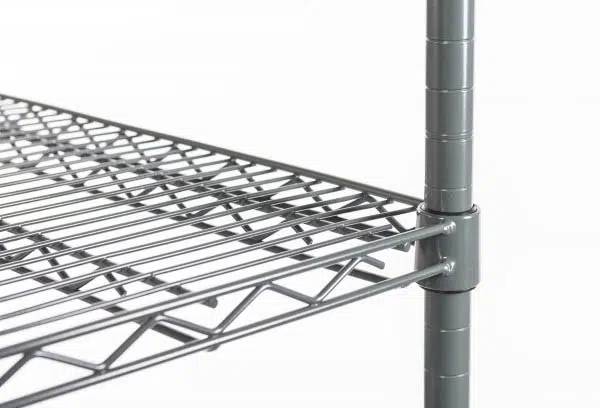

Grey nylon coated, bright chrome or stainless steel wire shelves with bright chrome poles and plastic tapered assembly collars. Temperature tolerance -40 to 110°C.
With bright chrome poles and plastic tapered assembly collars.
Four tier unit: 1800mm standard height.
Poles:
- 25 mm diameter poles.
- Grooved at 25 mm increments.
- Adjustable non-marking plastic.
- Feet fitted as standard.
- Stainless steel poles.
- Three-sided stability frame and post clamps.
- Label holders and wall fixings.
General information
Color | Grey |
Finish | Chrome |
Material | Nylon Stainless steel |
Shape | Rectangle |
Length | 400 mm 600 mm Manufacturer guidanceDepth |
Width | 900 mm 1000 mm 1200 mm 1500 mm 1800 mm |
Height | 1800 mm |
Uniclass | |
CAWS | N11/370 Shelving N10/160 Shelving systems N10/30 Shelving systems |
Specification data - Shelf units
Form | Four tier. |
Dimensions | |
Length | 900 mm.1000 mm.1200 mm.1500 mm.1800 mm. |
Height | 1800 mm. |
Depth | 400 mm.600 mm. |
Materials | |
Shelves | Bright Chrome Wire - 4 Tier.Nylon Coated Wire - 4 Tier.Stainless Steel Wire - 4 Tier. |
Finish | Manufacturer's standard. |
Integral accessories | Castors.Guidance for specification option: 100 or 125 mm castors (two braked). Label holders.Poles.‘S’ hooks for continuous runs and 90 degree angled units.Three-sided stability frame and post clamps.Wall fixings. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | United Kingdom |
Recyclability | Made from materials that are widely accepted by recycling facilities. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
