Solid Racking
Verified by manufacturer 6 days ago
ISO 9001 Quality Management
Certificate type
Health & Safety Accreditation
Certificate type
Acclaim Accreditation
Certificate type
Constructionline Gold
Certificate type

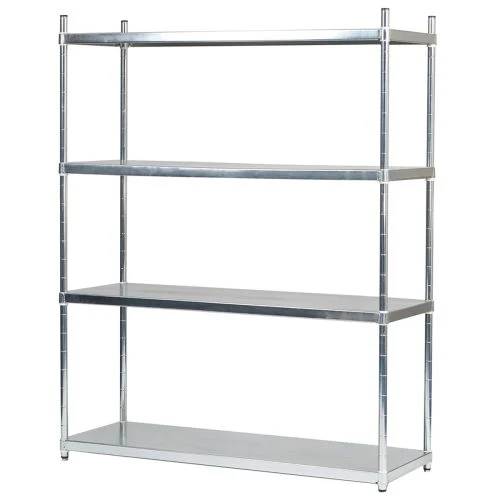

Solid racking.
Application
- Coldrooms / Freezer rooms.
- Potwash.
- Chemical areas.
- Dry stores.
- Linen / laundry rooms.
- Suitable for storage of glass ware / single items.
Description

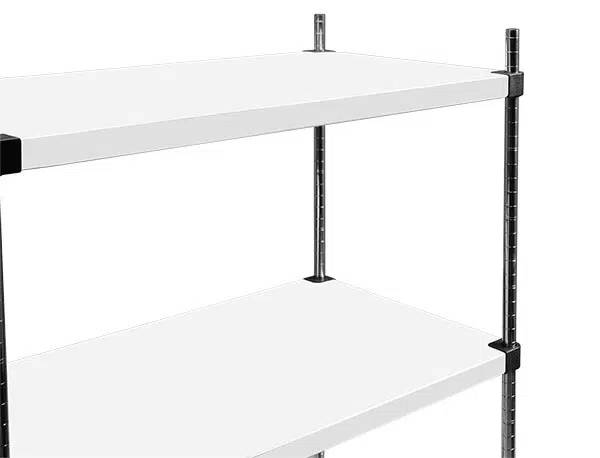

Solid stainless, perforated solid and white epoxy coated carbon steel shelves with bright chrome poles and plastic tapered assembly collars. Temperature tolerance -40 to 110°C.
Stainless steel grade 1.2 mm 1.4301 (304) shelves. One-piece high density polymer corners. Bright chrome poles. Plastic tapered assembly collars.
Poles:
- 25 mm diameter poles.
- Grooved at 25 mm increments.
- Adjustable non-marking plastic.
- Feet fitted as standard.
- Stainless steel poles.
- Three-sided stability frame and post clamps.
- Label holders and wall fixings.
Load capacity:
- 600–1200 mm long: 300 kg per shelf.
- 1500/ 1800 mm long: 275 kg per shelf.
- Mobile unit: 300 kg per bay.
General information
Color | Silver White |
Finish | Powder-coated Stainless steel |
Material | Carbon steel Stainless steel |
Shape | Rectangle |
Length | 400 mm 600 mm Manufacturer guidanceDepth |
Width | 900 mm 1000 mm 1200 mm 150 mm 1800 mm |
Height | 1800 mm |
Uniclass | |
CAWS | N11/370 Shelving N10/135 Storage and display units N10/160 Shelving systems N10/30 Shelving systems |
Specification data - Shelf units
Form | Four tier. |
Dimensions | |
Length | 900 mm.1000 mm.1200 mm.1500 mm.1800 mm.Manufacturer guidanceDepth |
Height | 1800 mm. |
Depth | 400 mm.600 mm. |
Materials | |
Shelves | Powder Coated Solid - 4 Tier.Guidance for specification option: Colour: White epoxy. Stainless Steel Solid - 4 Tier.Guidance for specification option: Chrome finish. Stainless Steel Perforated - 4 Tier.Guidance for specification option: Chrome finish. |
Finish | Manufacturer's standard. |
Integral accessories | Castors.Guidance for specification option: 100 or 125 mm castors (two braked). Label holders.Poles.‘S’ hooks for continuous runs and 90 degree angled units.Three-sided stability frame and post clamps.Wall fixings. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | United Kingdom |
Recyclability | Made from materials that are widely accepted by recycling facilities. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ISO 9001 Quality Management
ISO 9001
Health & Safety Accreditation
CHAS
Acclaim Accreditation
Acclaim SSIP
Constructionline Gold
Facilitiesline Gold
Literature
Powder Coated Solid Racking
Stainless Steel Perforated Racking
Stainless Steel Solid Racking
