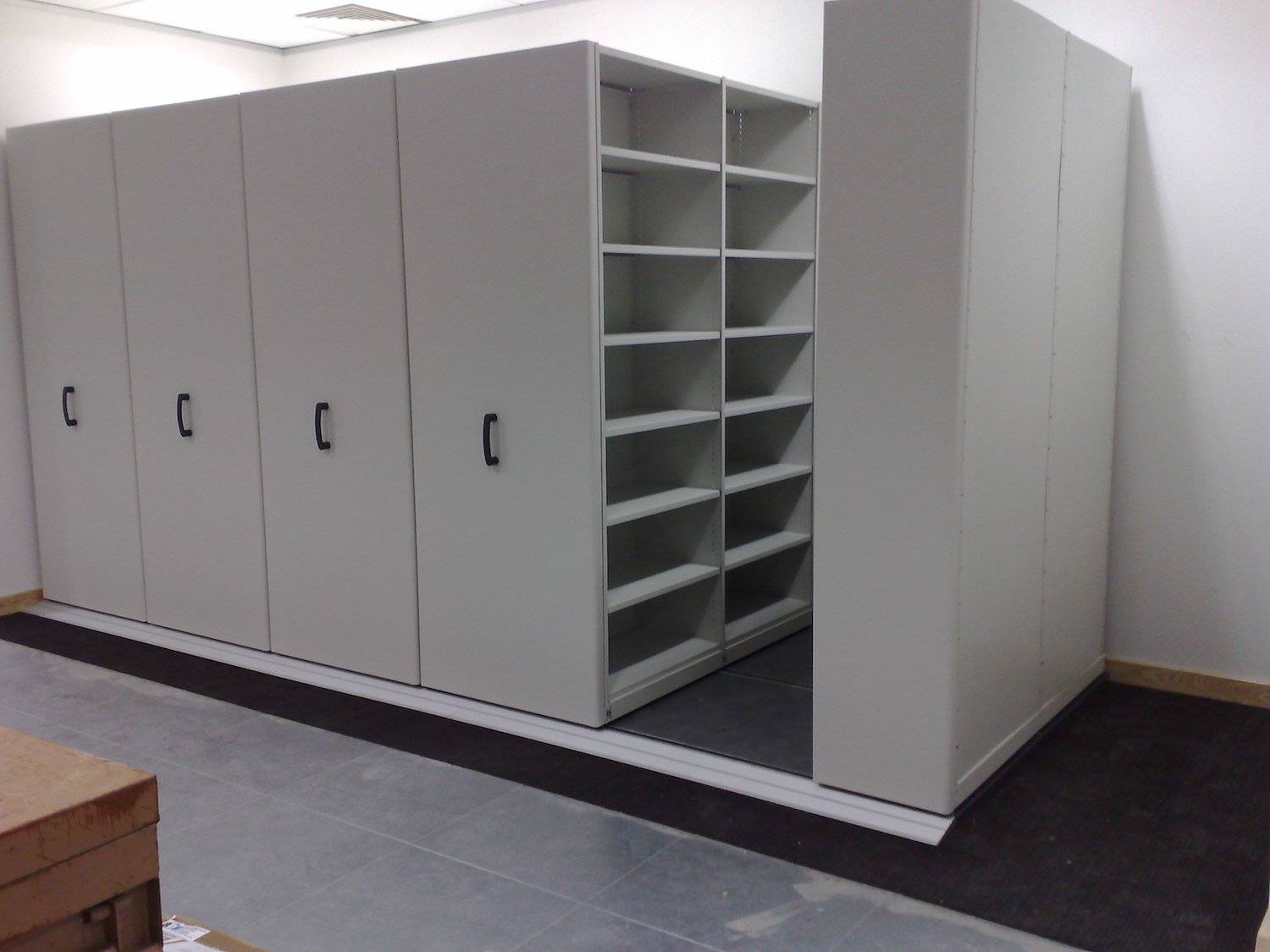

Roller Racking - Mobile Shelving

A complete free standing mobile shelving system that requires no drilling, no fixing down, no ground or civil works and no damage to flooring.

The basis of the system is a totally free-standing base. This base is made up of a track and a floor assembly. The track is a composite steel assembly. The composite track consists of an outer formed section with an inner steel ‘C’ section used as the load bearing member. This combination provides the necessary loading capacity with minimum deflection. The track assembly is light and easy to install and transport. The track is fitted along its length with levelling shims to provide a means of accurately levelling the tracks on an uneven floor.

The integral floor system creates a safe and strong false floor for personnel to walk on. The floor is produced from 18 mm flooring grade particle board. The floor is located and simply secured between the tracks on an up stand on the edge of the track and an integral groove on the underside of the boards. The boards are then slid and connected by tongue and grooves to give a strong and flush fitting surface. Board support angles can be reduced to accept free issue carpet tiles.

The movement of the system is created with the base carriages that comprise of initial and extension bays. Both these bases have three widths – nominally 1200 mm, 1000 mm, 900 mm and 750 mm and various depths.

The bases can be both single or double sided depending upon the quantity of storage needed and space available. The mobile bases are comprised of carriage units: that provide housings for the mobile’s wheels, facing channels; used to tie the carriages together and wheel axles that join the driving wheels together.

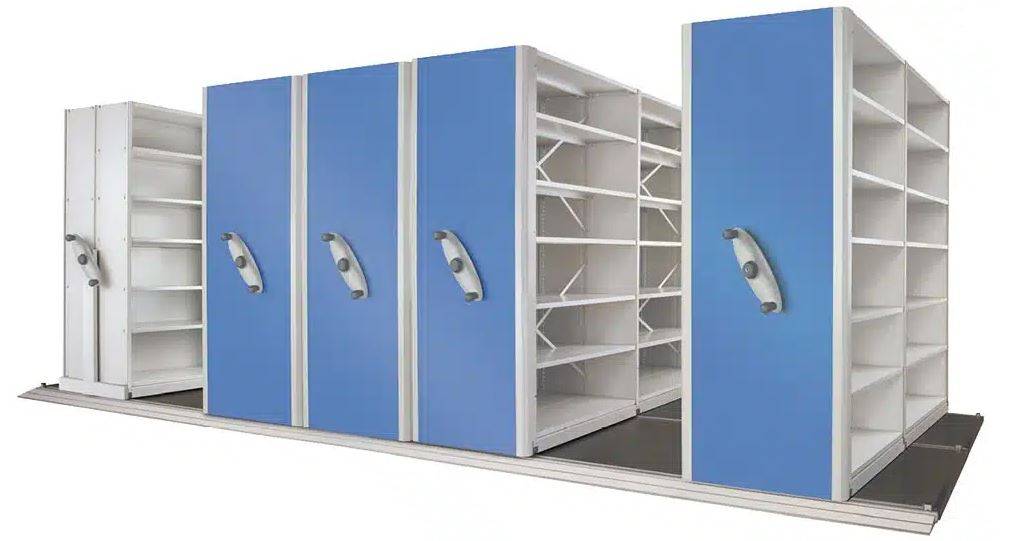

Each initial bay (starter) can have either drive channel (capstan) or a push/pull handle secured direct to the shelving upright. Movement of the bases is gained by turning the capstans hand wheel in left or right direction. The drive is then transmitted to the wheels by a series of chain and sprockets on one side of the base.

Features and benefits:

• Slotted uprights for easy and quick adjustment of shelves 1 mm thickness mild steel CR4.
• Shelves with safe edges to front and rear flanges 0.9 mm thickness mild steel.
• Recessed shelf clips ensure concealed fittings for clear access.
• A choice of back cladding or cross brace (open).
• Shelves adjustable in 25 mm increments, simply clip into place.
• Bay loading (maximum): 500 kg (dependent on specification).
• Shelves, uniform distributed load (maximum): 80 kg.
• Full range of accessories.
• Designed and manufactured in the UK, conforming to ISO 9001:2000.
• Constructed in a facility running an environment system ISO 1400:2004.
