Weinor I/ K/ N 2000 Awning
Verified by manufacturer 4 months ago

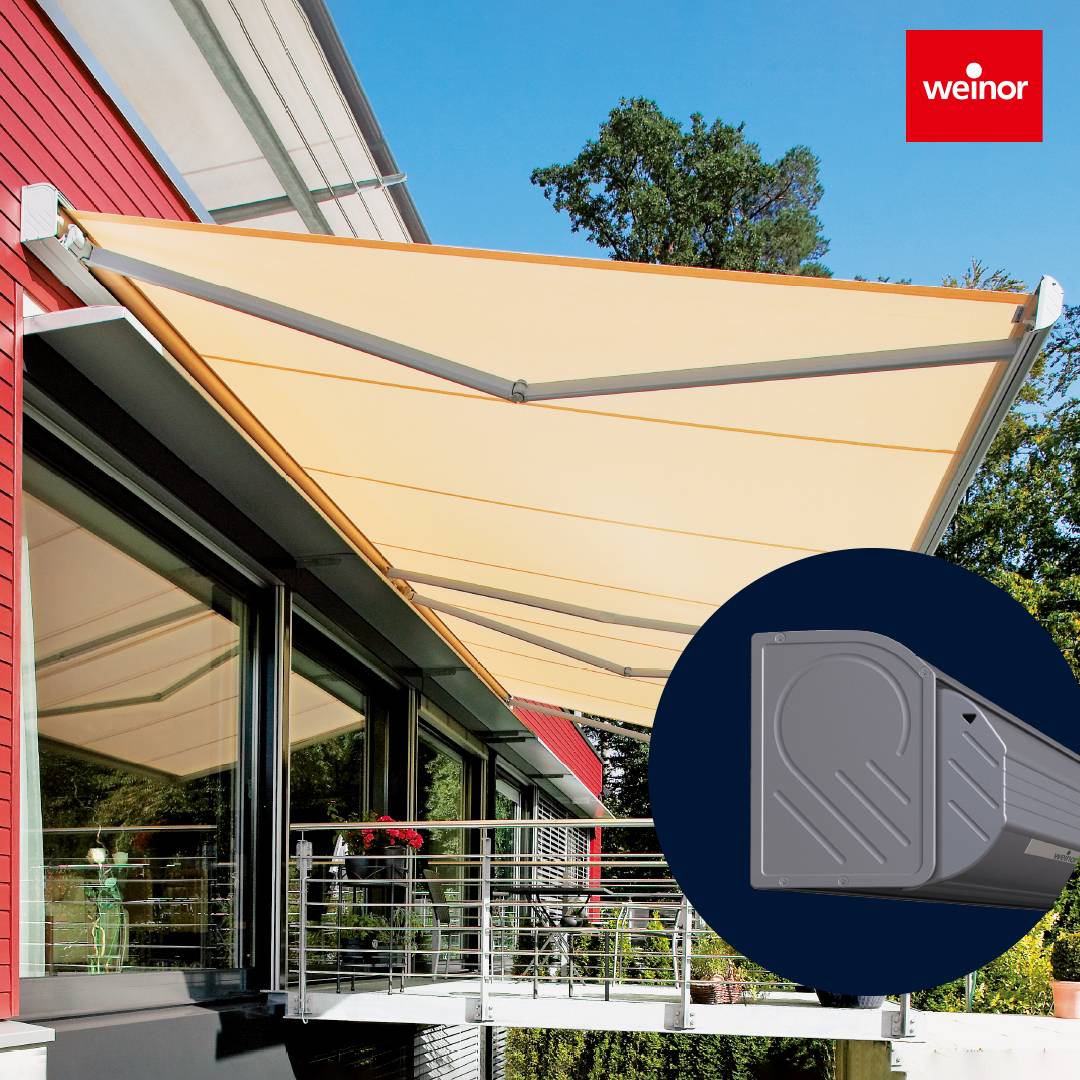

The Weinor I/K/N 2000 is a classic full cassette awning. The I / K / N 2000 can be up 12 m wide wide with up to a 4 m projection.
Application
This Weinor awning with its carrier bar can be installed within a facade for niche fixing. Suitable for shopfronts, bars, restaurants and office spaces requiring weather protection.
Description
Cassette awning. The I 2000 is without backplate for level building facades, the K 2000 (closed cassette) is supplied with a back plate for uneven bases.
The I/ K 2000 tends towards a more traditional design. The optional LED light bar makes the awning part of any stylish evening. The N 2000 is literally a niche item: with its projection profile, the awning disappears almost completely into the facade – with simple, straight lines, it is designed to meet a specific need.
Features and benefits:
- Simple installation with wall bracket and carrier bar.
- Wind lock safety device, prevents the awning from lifting up in gusts of wind from below.
- Couple/ jointed units, with roller supports or jockey cover.
- Optional LED lighting.
- Weiner LongLife arm which is very durable, low-noise and requires no maintenance.
- Motor drive as standard.
- 5–40° angle of pitch on awning available.
General information
Color | Manufacturer guidanceOther Momentum, Melange and Not Crazy collections. Over 140 patterns to choose form. |
Finish | Silk Gloss Powder-coated |
Material | Aluminium Polyester Acrylic |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | B91/330 Canopy |
Product range |
Specification data - Awnings
Size (width x depth) | 12000 x 4000 mm (coupled).Guidance for specification option: Maximum size when coupled. 7000 x 4000 mm.Guidance for specification option: I/K 2000. Maximum projection: 4000 mm. Maximum width 1-section with jockey cover or roller support: 7000 mm. 6000 x 3500 mm.Guidance for specification option: N 2000. Maximum projection: 3500 mm. Maximum width 1-section with jockey cover or roller support: 6000 mm. |
Frame | |
Material | Aluminium. |
Canopy | |
Material | Polyester/ acrylic. |
Colour and pattern | Manufacturer guidanceOver 140 patterns to choose from. |
Operation | |
Mode | Weinor BiConnect radio-controller.Guidance for specification option: With radio remote control for ease of use. Somfy io-homecontrol radio technology.Somfy RTS radio technology. |
Wind resistance | Wind resistance class 2 according to DIN 13561 (wind strength 5 on the Beaufort scale). |
Accessories | Heating system Tempura/Tempura Quadra.LED design light bar.BiSens Agido-3V product protection sensor.No remote.Guidance for specification option: Standard Sun/wind rain sensor.Wind sensor. |
Mounting | Wall mounted. Ceiling mounted. Rafter mounted. |
Pitch | Manufacturer guidance5–40°, insert requirements. |
Cassette size | 198/ 200 x 211 mm. Guidance for specification option: I/K 2000. 197 x 210 mm. Guidance for specification option: N 2000. |
Sustainability data
Country of product manufacture | Germany |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
