Markilux 990 Awning

Name: Markilux 990 Awning
Brand: Roché Systems Ltd
SKU: byXGfWZcdVgz63aSYi28Rp

Verified by manufacturer 5 months ago

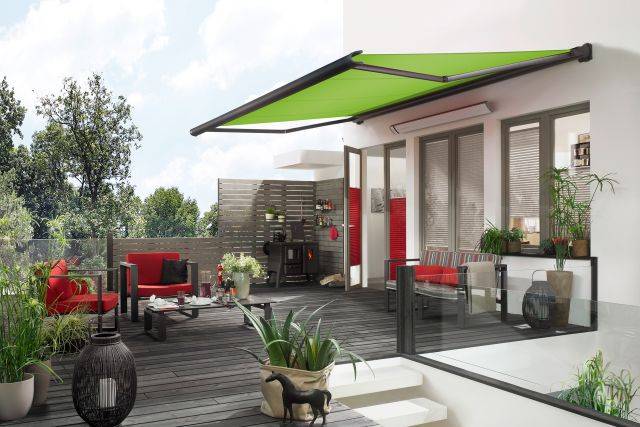

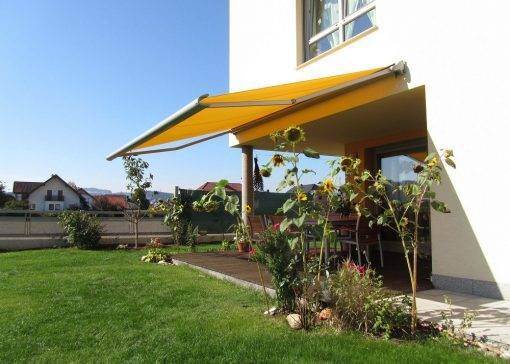

The Markilux 990 is a slim full cassette awning made from forged aluminium and is ideal for domestic applications. The Markilux 990 can be up to 5 m wide with up to a 3 m projection.

Jump to:

BOS

03330347967 Website

Application

Suitable for domestic settings with patio and balcony areas.

Description

The perfectly designed compact cassette awning. The outstanding 'lightweight' for balcony and patio.

Features and benefits:

Self-supporting cassette profile construction, the brackets being installed at each end of the awning – also suitable for bridging larger distances.
Cassette with arms situated in front and at each end, which - when the awning is closed - are encompassed fully by the front profile and which lends a harmonious overall appearance to the awning
Even when the awning is fully extended, the roller tube is completely protected.
The cassette is in two parts and has a semi-circular front profile with integrated gutter.

General information

Color	Other Guidance for specification option: RAL available for surcharge.
Finish	Powder-coated
Material	Aluminium
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Five year

Uniclass	Pr_30_59_07_05 AwningsPrimary
CAWS	B91/330 Canopy

Product range	Patio Awnings

Specification data - Awnings

Classification data
Size (width x depth)	Guidance for specification option: 5 x 3 m (maximum size when coupled), insert requirements. Manufacturer guidance Cassette in the standard version: depth 217 mm, height 124 mm Single unit: minimum width 179 cm at the smallest projection of 150 cm, maximum width 500 cm at the largest projection of 300 cm. Overall awning width: 250, 300, 350, 400, 450 or 500 cm. Awning height: 150, 200, 250, 300 cm.
Frame	-
Material	Aluminium. Guidance for specification option: Folding arms: Profiles in extruded aluminium (powder coated). Moving parts are drop-formed aluminium, pivot bolts are stainless steel run in Teflon-coated bronze brushes. Roller tube: 85 mm diameter galvanized steel. Lateral arm bearers: die-cast aluminium (powder coated). Manufacturer guidance Power transference via corrosion-protected twin steel-link chains at the elbow joint, optionally with innovative bionic tendon made of high tensile, high-tech fibre – low in friction, noiseless, insensitive to corrosion and UV resistant
Canopy	-
Material	Sunvas. Guidance for specification option: Standard. fabric range no 301.. / 309..–315. Sunsilk. Guidance for specification option: Standard. fabric range no 324.. / 325.. / 328../ 369.. Sunbow. Perla FR. Guidance for specification option: Optional. fabric range no 374.. / 375..
Valance detail	None. Valance. Guidance for specification option: Optional.
Headrail	-
Material	Extruded aluminium.
Colour	Traffic white, RAL 9016. Metallic aluminium, RAL 9006. Grey brown, similar to RAL 8019. Off-white, textured finish, RAL 5233. Stone grey, metallic, RAL 5215. Anthracite, metallic, RAL 5204. Havana brown, textured finish, RAL 5229.
Operation	-
Mode	Hard-wired motor operation. Radio-controlled motor io, 868 MHz. Guidance for specification option: Optional Spring-assisted crank handle. Guidance for specification option: Optional. Radio-controlled motor RTS 433 MHz. Guidance for specification option: Optional Crank handle. Guidance for specification option: Standard.
Wind resistance	Beaufort 5 - 17–23 mph.
Accessories	None. Wall sealing profile (effective up to a maximum awning pitch of 15°). Guidance for specification option: To cover the gap between awning and wall. Folding arm technology with bionic tendon. Only 2.5 kW infrared heater io or RTS. Guidance for specification option: io receiver is integrated, RTS receiver is external. LED spotline – light bar 110 x 70 mm at 1800 mm long with 3 W LED spotlights. Guidance for specification option: With integrated io radio receiver or external RTS receiver. LED spotline – light bar 110 x 70 mm at 3000 mm long with 5 W LED spotlight. Guidance for specification option: With integrated io radio receiver or external RTS receiver. Automatic controls (light, wind and rain).
Brackets	Face fixture bracket 150 mm. Face fixture bracket 300 mm L. Face fixture bracket 300 mm R. Spreader plate A 430 x 160 x 12 mm. Spreader plate B 300 x 400 x 12 mm. Spreader plate A 310 x 130 x 12 mm. Stand-off bracket 80–300 mm. Top fixture bracket 150 mm. Eaves fixture bracket 90 mm, 150 mm plate. Eaves fixture bracket 90 mm, 270 mm plate. Flat plate and angled bracket for eaves fixture, machine finish aluminium, 500 mm plate. Spreader plate 260 × 60 × 12 mm for eaves fixture bracket./ Angled profile for eaves fixture 100 x 100 mm, machine finished aluminium. Manufacturer guidance Face fixture, top fixture, eaves fixture. Extruded aluminium, powder coated. Available in intermediate widths made to order (on request) Pitch range 5°–35° (face fixture) or 5°–70° (top or eaves fixture), infinitely variable. Spacer plates, stand-off brackets and other accessories are available.
Caps	Polished chrome. Guidance for specification option: Optional. Colour as frame. Manufacturer guidance Side caps The cassette insert sections are made of high-quality plastic, powder coated or in a polished chrome finish. The front profile end caps are made of high-quality plastic, powder coated, with drainage holes.
