The Markilux 3300 is a compact full cassette awning made from forged aluminium and with an angular design. The Markilux 3300 can be up to 13.9 m wide with up to a 3.5 m projection when coupled.

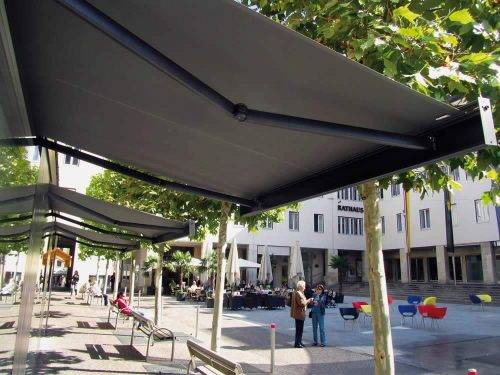

Suitable to commercial settings including hotels, restaurants, cafes, shopfronts, schools, hospitals and pubs.

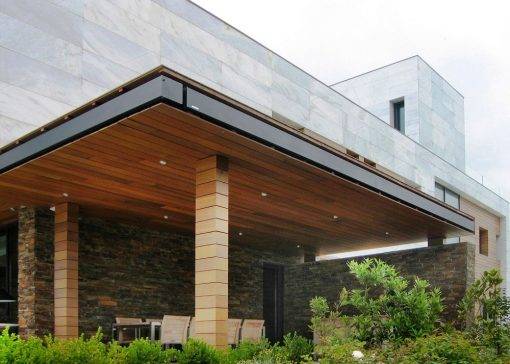

Extremely robust, angular cassette, ideally suited for installation in niches and reveals, under overhangs and to business premises.
Features and benefits:
Color | Other Guidance for specification option: RAL available for surcharge. |
Finish | Powder-coated |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Material | Aluminium |
Uniclass | |
CAWS | B91/330 Canopy |
Product range |
Size (width x depth) | Guidance for specification option: 13.9 x 3.5 m (maximum size when coupled), insert requirements. Manufacturer guidance
|
Frame | |
Material | Aluminium.Guidance for specification option: Awning profile, folding arms and side caps: extruded aluminium and powder coated (moving parts are drop-forged aluminium). Pivot bolts are stainless steel. Manufacturer guidance
|
Canopy | |
Material | Sunvas.Guidance for specification option: Standard. fabric range no 301.. / 309..–315. Sunsilk.Guidance for specification option: Standard. fabric range no 324.. / 325.. / 328../ 369.. Sunbow.Perla FR.Guidance for specification option: Optional. fabric range no 374.. / 375.. |
Valance detail | None.Valance.Guidance for specification option: Optional. Drop valance . Height: 170 cm. 300 cm projection (maximum). |
Headrail | |
Material | Galvanized steel.Guidance for specification option: Round roller tube 85 mm diameter with keyway, galvanized steel – excellent stability ensures near perfect cover performance even at the largest widths, the roller support bracket is made of extruded aluminium, integrated into the cassette. Manufacturer guidanceThe front profile is shaped like a smooth panel, with integrated rain gutter. |
Colour | Traffic white, RAL 9016.Metallic aluminium, RAL 9006.Grey brown, similar to RAL 8019.Off-white, textured finish, RAL 5233.Stone grey metallic, RAL 5215.Anthracite metallic, RAL 5204.Havana brown, textured finish, RAL 5229. |
Operation | |
Mode | Radio-controlled motor io, 868 MHz.Guidance for specification option: Optional. Spring-assisted crank handle.Guidance for specification option: Optional. Radio-controlled motor RTS 433 MHz.Guidance for specification option: Optional. Crank handle.Guidance for specification option: Standard, manual operation only possible up to a 6000 mm width. |
Wind resistance | Beaufort 5 - 17–23 mph |
Accessories | None.Wall sealing profile (effective up to a maximum awning pitch of 15°).Folding arm technology with bionic tendon.Only 2.5 kW infrared heater io or RTS.LED spotline – light bar 110 x 70 mm at 1800 mm long with 3 W LED spotlights.Guidance for specification option: io receiver is integrated, RTS receiver is external. LED Lighting. LED spotline io – light bar 110 x 70 mm at 3000 mm long with 5 W LED spotlight.Guidance for specification option: With integrated io radio receiver or external RTS receiver. Halogen spotline – light bar 89 mm x 40 mm with 20 W halogen spotlights.Guidance for specification option: With integrated io radio receiver or external RTS receiver. Automatic controls (light, wind, rain). |
Fixing | Face fixture bracket 100 mm. Face fixture bracket 60 mm. Spreader plate A 430 x 160 x 12 mm. Spreader plate B 300 x 400 x 12 mm. Stand-off bracket 80–300 mm. |
Contains Red List materials | No |
Country of product manufacture | Germany |
Material | Aluminium |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
