wedi Sanoasa Shower Bench - shower seating

Verified by manufacturer 29 days ago

076447020

Wedi Systems (UK) Ltd Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

wedi Sanoasa benches are prefabricated in the factory, and suitable for individual tiling. Custom designs are possible.

Jump to:
BOS
+44 (0)161 864 2336 Website

Application

  • Applications include showers or wet rooms, areas with private and commercial use indoors, with direct contact with process and cleaning water.
  • The base must be sufficiently load bearing and even.


The bench is delivered in four parts: Bench element, substructure element and two BA 6 (as the cover plate or compensating panels).

Description

wedi Sanoasa benches are pre-fabricated and suitable for individual tiling. Custom designs are also available upon request - consult manufacturer for information.

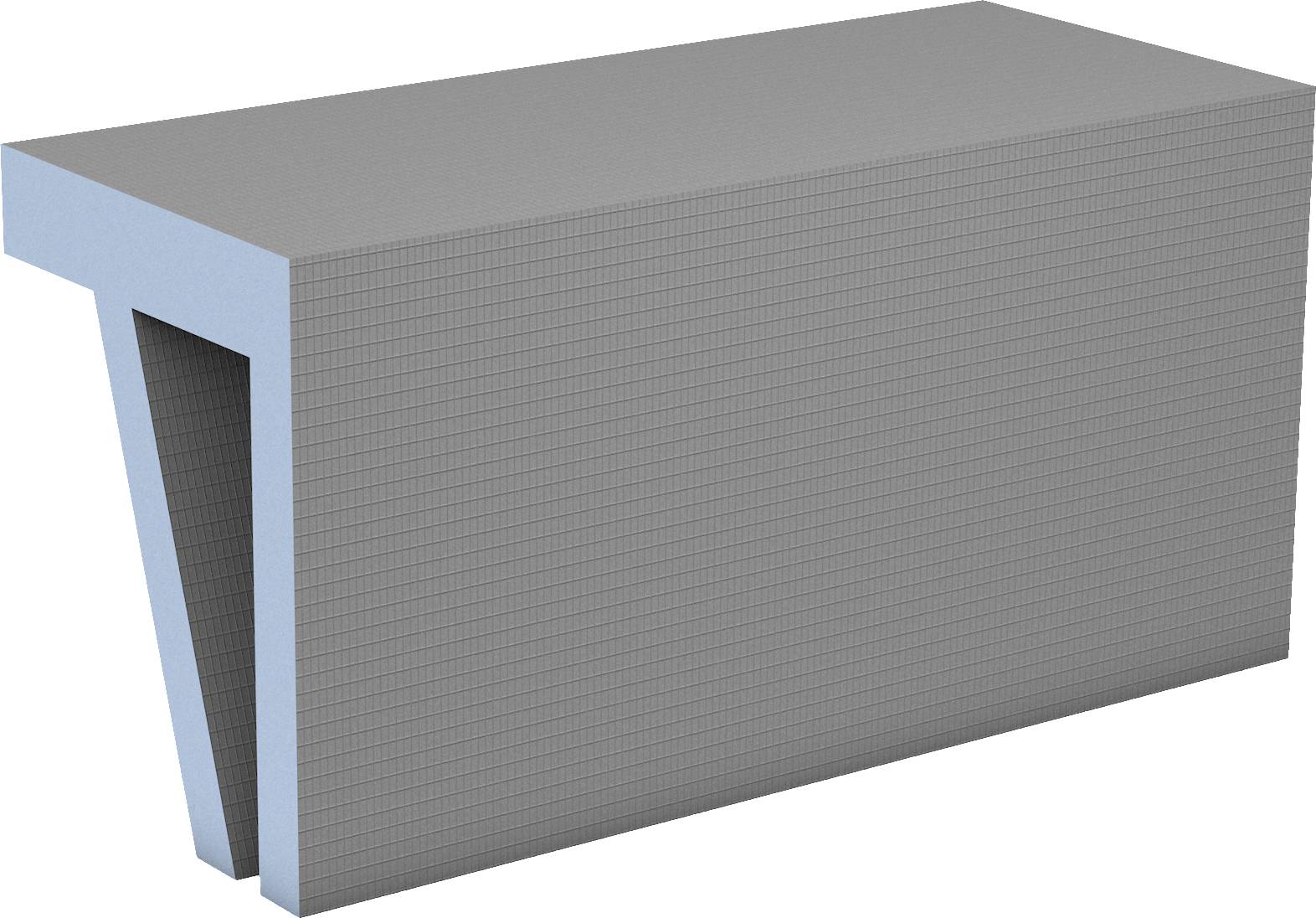

Sanoasa bench 1 - Straight:

Bench with a right-angled front edge to the seating element. If this seating is combined with the straight edge of the substructure element, the result is an easy to tile and level front edge. As a design variant, the seating area can also be easily fitted so that it protrudes. The Fundo Riolito Discreto wall drain can be integrated into the support element. Rotating the support element provides further design options.

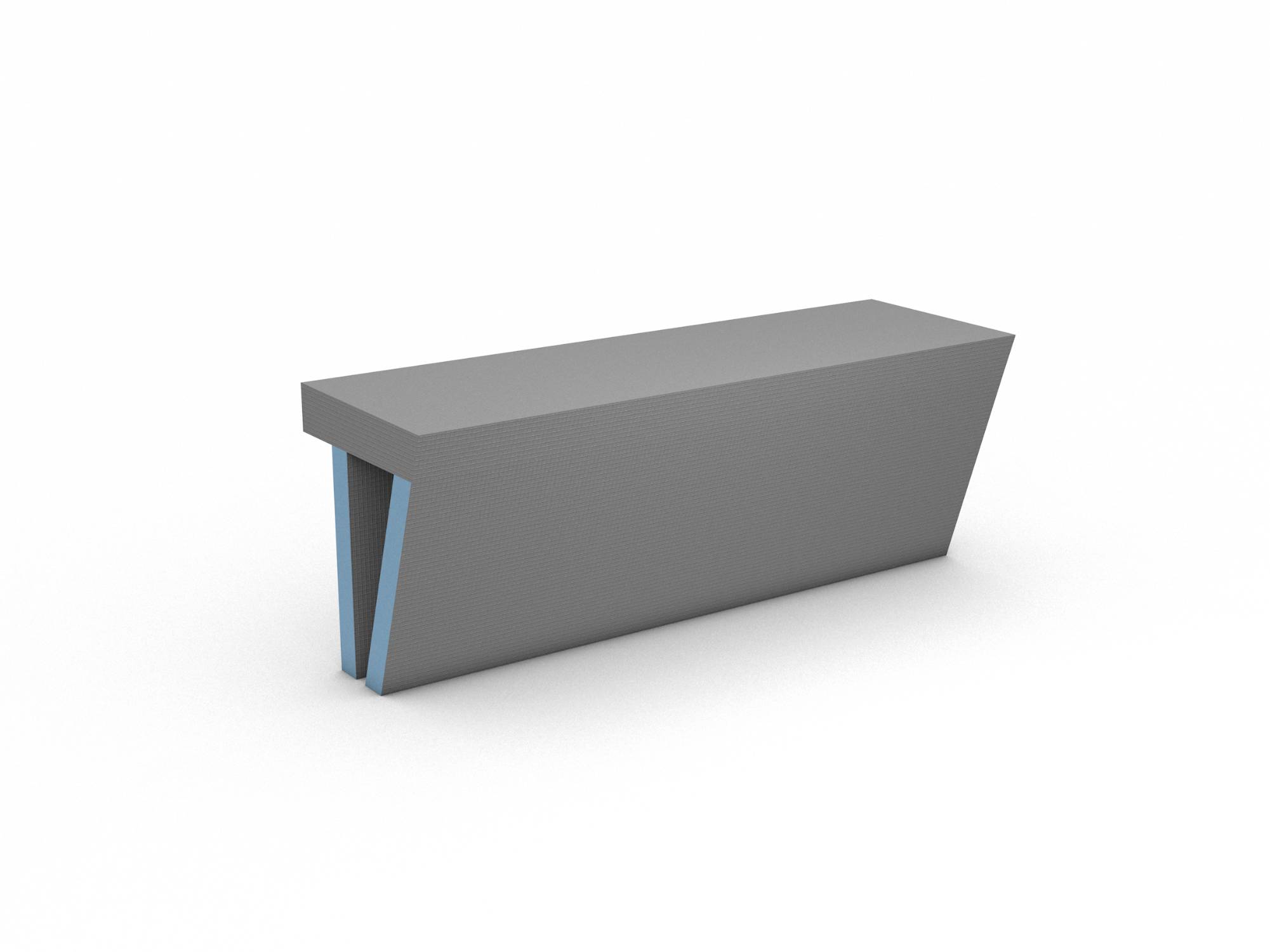

Sanoasa bench 2 - Angled:

Distinguished by an angled front edge on the seat, resulting in a flush transition to the equally angled support element. This bench variant also enables further design options when rotating the support element.

Sanoasa bench 3 - Rounded:

The front edge is rounded off so that there is a flush transition with both the angled and the vertical sides of the support element.


Features and benefits:

  • Watertight.
  • Stable.
  • Lightweight.
  • 100% waterproof extruded polystyrene insulation (XPS) core.
  • Available in the widths 900 and 1200 mm.
  • Three different edge finishes to choose from.
  • Width and depth can be shortened.
  • Can be combined with the attachment element Fundo Riolito Discreto.
  • CO²-foamed, extruded polystyrene rigid foam with closed cell structure and flame-retardant additive.
  • The polystyrene rigid foam is hydrochlorofluorocarbon (HCFC) and chlorofluorocarbon (CFC) free.
  • wedi 610 is required for adhesion.
  • Joint reinforcement tape is required at the wall connections.

General information

Color

Grey

Blue

Finish

Cement

Unfinished

Material

High density extruded polystyrene (XPS)

Shape

Rectangle

Other

Length

900 mm

1200 mm

Bespoke

Width

380 mm

Bespoke

Height

454 mm

Bespoke

Warranty description

Ten year

Uniclass

Pr_40_20_06_83 Shower seatsPrimary

CAWS

N13/40 Shower units

N13/448 Seats

Product range

Design Line / Benches & Loungers

Specification data - Shower seats

Materials

-

Frame

Extruded polystyrene (XPS) rigid form core.

Seat

Extruded polystyrene (XPS) rigid form core.

Integral accessories

None.

Building board.

Guidance for specification option:

Various options available, consult literature and insert requirements.

Fundo Plano.

Fundo Plano Linea.

Fundo Primo.

Fundo Riofino.

Fundo Riolito.

Fundo Riolito Discreto.

Fundo Riolito Neo.

Joint reinforcement tape.

wedi 320 tile adhesive.

wedi 610 – adhesive sealant.

wedi border Insulating strips.

wedi building board XL.

Guidance for specification option:

Various options available, consult literature and insert requirements.

wedi building board XXL.

Guidance for specification option:

Various options available, consult literature and insert requirements.

wedi Nonstep Pro.

Guidance for specification option:

Various options available, consult literature and insert requirements.

wedi tools sealing tape.

Dimensions

900 x 380 x 454 mm.

Configuration

Straight.

Fire performance

To EN 13501, Class E.

Compressive strength (minimum) at 10% compression

To EN 826, 0.25 N/mm².

Elastic modulus

To EN 826, 10–18 N/mm².

ThermalConductivity

To EN 13164, 0.036 W/mK.

TensileStrength

To EN 1607, 0.45 N/mm².

ShearModulus

To EN 12090, 7 N/mm².

Density

To EN 1602, 32 kg/m³.

Water vapour diffusion resistance

To EN 12086, 100 µ.

Water absorption

To EN 12087, ≤1.5% by volume.

Linear thermal expansion coefficient

0.07 mm/mK.

Temperature limiter

-50°C to +75°C.

Global warming potential (GWP)

1.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

XPS core fully recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %
