wedi Sanoasa Bellina Carrier/Base Element

Verified by manufacturer 29 days ago

Wedi Systems (UK) Ltd

Benches consisting of a support and a bench element. Unlike the Sanoasa Comoda wellness benches, the Sanoasa Bellina benches do not have an integrated back rest.

Jump to:
BOS
+44 (0)161 864 2336 Website

Application

Suitable for both the public and private bathrooms.

Description

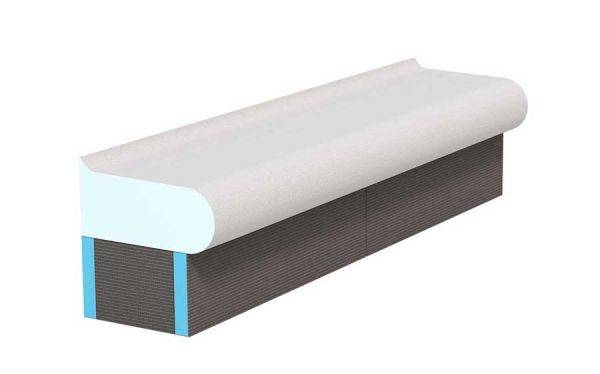

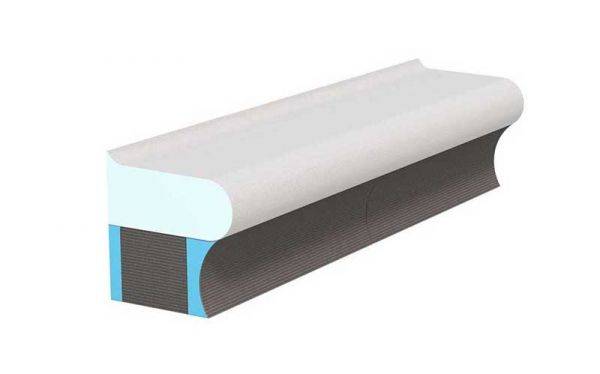

Sanoasa Bellina benches consist of a carrier/base and a bench element.


Features and benefits:

  • Available as benches, corner constructions or clean end solutions, and can be individually tiled.
  • The bench element is supplied in two parts, a back rest and a seat. Each bench element (2000 mm) requires two carrier elements.
  • The corner elements can only be supplied with the downwards-running substructure.
  • The armrest can be installed equally on the right or the left using wedi 610 adhesive sealant.


Unlike the Sanoasa Comoda wellness benches, the Sanoasa Bellina benches do not have an integrated back rest. This makes them particularly suitable for seamless, flush fitting against walls (using wedi building board).


General information

Color

Grey

Finish

Unfinished

Material

High density extruded polystyrene (XPS)

Shape

Rectangle

Other

Length

1000 mm

Bespoke

Width

386 mm

425 mm

Bespoke

Height

250 mm

Bespoke

Warranty description

Ten year

Uniclass

Pr_40_20_06_83 Shower seatsPrimary

CAWS

N13/40 Shower units

N13/448 Seats

Product range

Design Line / Benches & Loungers

Specification data - Shower seats

Materials

-

Frame

A waterproof extruded polystyrene rigid foam core with a special, resistant and glass fibre reinforced cement coating.

Slope

1000 mm.

Dimensions

486 x 1000 x 240 mm.

Accessories

None.

wedi 320 tile adhesive.

wedi 610 – adhesive sealant.

Guidance for specification option:

One cartridge required per 1000 mm bench.

wedi tools joint reinforcement tape.

Guidance for specification option:

Required to reinforce joints.

wedi tools sealing tape.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

2

Revit
-

2

Literature

2019 Product Brochure

2019 Product Brochure
