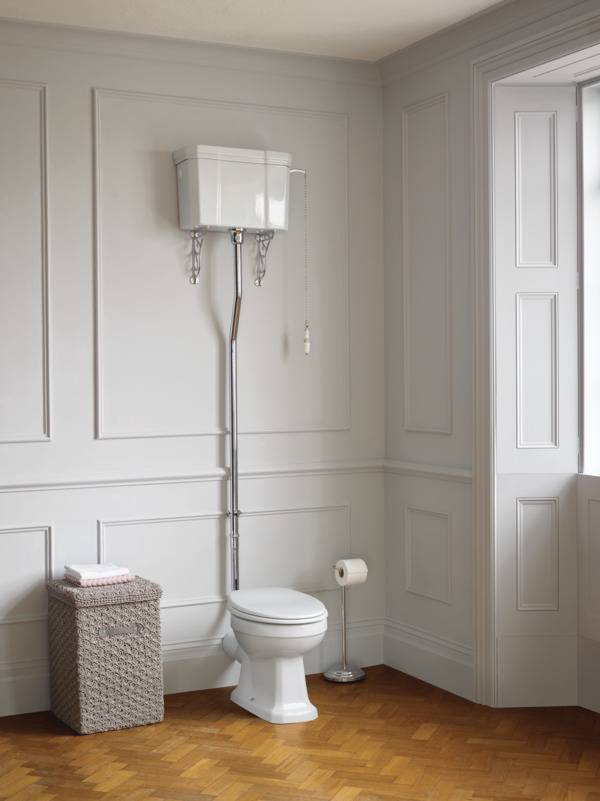

Waverley High Level/ Low level Toilet Bowl
Verified by manufacturer 26 days ago
EPD
Certificate type
High level/ low level toilet bowl with horizontal outlet.
Application
For use as high level/low level toilet bowl with horizontal outlet.
Description
Waverley high level/low level toilet bowl with horizontal outlet.
Features and benefits:
- Domestic and hotel use.
- Classic Edwardian styling.
- For us with High level cistern with Ornate brackets (U470701)
- WC pan screwed to floor and cistern screwed to wall.
General information
Color | White |
Finish | Polished |
Material | Vitreous china |
Shape | Square |
Length | 480 mm |
Width | 360 mm |
Height | 400 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC pans
Standard | To BS EN 997. |
Form | Back-to-wall, washdown. |
Connecting dimensions | To BS EN 33. |
Pan height | 400 mm. |
Materials | |
Body | Vitreous china. |
Finish and colour | Polished, white. |
Water supply, outlet and seat holes | |
Water supply | Back inlet. |
Outlet | Horizontal back outlet. |
Dimensions | 380 x 515 x 390 mm. Guidance for specification option: W x D x H. |
Sustainability data
Material | Vitreous china |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
EPD
EPD - Ceramic Vitreous China
