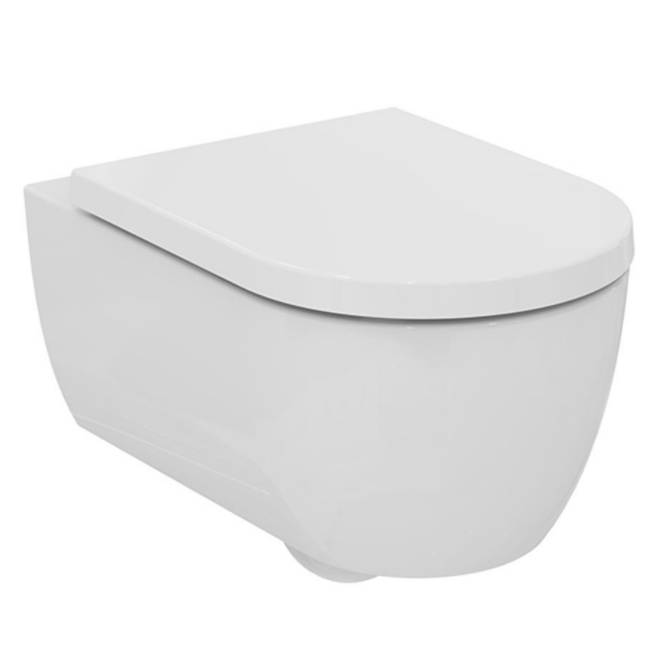

Name: Blend Curve Wall Hung Toilet Bowl
Brand: Ideal Standard (UK) Ltd
SKU: i1Q1P6M7Ra8bWTPgxJf7qN

Not required.

R0115 - Control plate.

Guidance for specification option:

OLEAS™ M1 CONTROL PLATE.

R0153 - WC frame.

Guidance for specification option:

ProSys 1150 mm height, mechanical wall hung WC frame, 120 depth, front actuation.

T3760 - WC seat.

Guidance for specification option:

Blend Curve toilet seat - Soft Close.

E0060 - WC Support Bracket.

Guidance for specification option:

Support frame with bolts for wall mounted toilet bowls.

E2125 - Cistern.

Guidance for specification option:

Conceala 2 concealed cistern universal height, side inlet cistern - pneumatic dual flush valve - no flushplate - 6/4 litre flush.

E4465 - WC Actuator.

Guidance for specification option:

Karisma flush plate, dual flush, branded for Conceala 2 cisterns.

P0109 - WC Actuator.

Guidance for specification option:

Septa Pro XS pneumatic push button no logo - chrome.

R0100 - WC In-wall System.

Guidance for specification option:

ProSys half frame for wall hung WC pans (no cistern).

R0110 - WC Actuator.

Guidance for specification option:

Solea P2 pneumatic dual flushplate Ideal Standard - white.

R0116 - WC Actuator.

Guidance for specification option:

Oleas P1 pneumatic dual flushplate Ideal Standard - white.

R0119 - WC Actuator.

Guidance for specification option:

Oleas P2 pneumatic dual flushplate Ideal Standard - white.

R0121 - WC Actuator.

Guidance for specification option:

Oleas M2 mechanical dual flushplate Ideal Standard - white.

R0123 - WC Actuator.

Guidance for specification option:

Oleas M3 mechanical dual flushplate Ideal Standard - white.

R0124 - WC Actuator.

Guidance for specification option:

Oleas P3 pneumatic dual flushplate Ideal Standard - white.

R0129 - WC Actuator.

Guidance for specification option:

Symfo NT1 electronic (proximity) glass dual flushplate Ideal Standard - white.

R0130 - WC Actuator.

Guidance for specification option:

Altes NT1 electronic (proximity) ceramic dual flushplate Ideal Standard - white.

R0140 - WC In-wall System.

Guidance for specification option:

ProSys 820mm height, mechanical wall hung WC frame, 150 depth, front or top actuation.

R0158 - Ancillary.

Guidance for specification option:

ProSys electronic conversion kit for proximity actuated flushplates (Altes & Symfo) (120 depth frames and cisterns only).

R0176 - Ancillary.

Guidance for specification option:

Prosys conversion kit (front to top actuation) for mechanical 150 depth frames & cisterns (for when using Oleas flushplates).

R0184 - WC Actuator.

Guidance for specification option:

Septa Pro XS pneumatic push button, no logo.

R0312 -WC In-wall System.

Guidance for specification option:

ProSys 820 mm height, pneumatic wall hung wc frame 150 depth, front or top actuation.

R0313 - WC In-wall System.

Guidance for specification option:

ProSys 1150 mm height, pneumatic wall hung WC frame, 120 depth, front actuation.

R0314 - WC In-wall System.

Guidance for specification option:

ProSys 1150 mm height, freestanding mechanical wall hung WC frame, 120 depth, front actuation.

S3643 - Cistern.

Guidance for specification option:

Conceala 2 4.5/3 or 4/2.6 litre cistern, dual flush valve, side supply, internal overflow, alternative height plastic flushbends, no flushplate/button.

Color	White Guidance for specification option: White (01) or Silk white (V1).
Finish	Gloss
Material	Vitreous china Guidance for specification option: Vitreous china.
Shape	Other Guidance for specification option: Curved.
Length	540 mm
Width	355 mm
Height	340 mm
Warranty description	Lifetime

Uniclass	Pr_40_20_93_94 WC pansPrimary
CAWS	N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns

Standard	To BS EN 997.
Form	Wall-mounted.
Connecting dimensions	To BS EN 33.
Pan height	400 mm.
Materials	-
Body	Vitreous china.
Finish and colour	White (01). Silk white (V1).
Water supply, outlet and seat holes	-
Outlet	Horizontal back outlet.
Integral accessories	Not required. R0115 - Control plate. Guidance for specification option: OLEAS™ M1 CONTROL PLATE. R0153 - WC frame. Guidance for specification option: ProSys 1150 mm height, mechanical wall hung WC frame, 120 depth, front actuation. T3760 - WC seat. Guidance for specification option: Blend Curve toilet seat - Soft Close. E0060 - WC Support Bracket. Guidance for specification option: Support frame with bolts for wall mounted toilet bowls. E2125 - Cistern. Guidance for specification option: Conceala 2 concealed cistern universal height, side inlet cistern - pneumatic dual flush valve - no flushplate - 6/4 litre flush. E4465 - WC Actuator. Guidance for specification option: Karisma flush plate, dual flush, branded for Conceala 2 cisterns. P0109 - WC Actuator. Guidance for specification option: Septa Pro XS pneumatic push button no logo - chrome. R0100 - WC In-wall System. Guidance for specification option: ProSys half frame for wall hung WC pans (no cistern). R0110 - WC Actuator. Guidance for specification option: Solea P2 pneumatic dual flushplate Ideal Standard - white. R0116 - WC Actuator. Guidance for specification option: Oleas P1 pneumatic dual flushplate Ideal Standard - white. R0119 - WC Actuator. Guidance for specification option: Oleas P2 pneumatic dual flushplate Ideal Standard - white. R0121 - WC Actuator. Guidance for specification option: Oleas M2 mechanical dual flushplate Ideal Standard - white. R0123 - WC Actuator. Guidance for specification option: Oleas M3 mechanical dual flushplate Ideal Standard - white. R0124 - WC Actuator. Guidance for specification option: Oleas P3 pneumatic dual flushplate Ideal Standard - white. R0129 - WC Actuator. Guidance for specification option: Symfo NT1 electronic (proximity) glass dual flushplate Ideal Standard - white. R0130 - WC Actuator. Guidance for specification option: Altes NT1 electronic (proximity) ceramic dual flushplate Ideal Standard - white. R0140 - WC In-wall System. Guidance for specification option: ProSys 820mm height, mechanical wall hung WC frame, 150 depth, front or top actuation. R0158 - Ancillary. Guidance for specification option: ProSys electronic conversion kit for proximity actuated flushplates (Altes & Symfo) (120 depth frames and cisterns only). R0176 - Ancillary. Guidance for specification option: Prosys conversion kit (front to top actuation) for mechanical 150 depth frames & cisterns (for when using Oleas flushplates). R0184 - WC Actuator. Guidance for specification option: Septa Pro XS pneumatic push button, no logo. R0312 -WC In-wall System. Guidance for specification option: ProSys 820 mm height, pneumatic wall hung wc frame 150 depth, front or top actuation. R0313 - WC In-wall System. Guidance for specification option: ProSys 1150 mm height, pneumatic wall hung WC frame, 120 depth, front actuation. R0314 - WC In-wall System. Guidance for specification option: ProSys 1150 mm height, freestanding mechanical wall hung WC frame, 120 depth, front actuation. S3643 - Cistern. Guidance for specification option: Conceala 2 4.5/3 or 4/2.6 litre cistern, dual flush valve, side supply, internal overflow, alternative height plastic flushbends, no flushplate/button.

Weight	24.70 kg. Manufacturer guidance Net weight.
Dimensions	355 x 540 x 340 mm. Guidance for specification option: W x D x H.

Contains Red List materials	No
Country of product manufacture	China
Recyclability	100

Blend Curve Wall Hung Toilet Bowl

Application

Description

General information

Color

Finish

Material

Shape

Length

Width

Height

Warranty description

Uniclass

CAWS

Specification data - WC pans

Standard

To BS EN 997.

Form

Wall-mounted.

Connecting dimensions

To BS EN 33.

Pan height

400 mm.

Materials

Body

Vitreous china.

Finish and colour

White (01).

Silk white (V1).

Water supply, outlet and seat holes

Outlet

Horizontal back outlet.

Integral accessories

Not required.

R0115 - Control plate.

R0153 - WC frame.

T3760 - WC seat.

E0060 - WC Support Bracket.

E2125 - Cistern.

E4465 - WC Actuator.

P0109 - WC Actuator.

R0100 - WC In-wall System.

R0110 - WC Actuator.

R0116 - WC Actuator.

R0119 - WC Actuator.

R0121 - WC Actuator.

R0123 - WC Actuator.

R0124 - WC Actuator.

R0129 - WC Actuator.

R0130 - WC Actuator.

R0140 - WC In-wall System.

R0158 - Ancillary.

R0176 - Ancillary.

R0184 - WC Actuator.

R0312 -WC In-wall System.

R0313 - WC In-wall System.

R0314 - WC In-wall System.

S3643 - Cistern.

Weight

Manufacturer guidance

Dimensions

Sustainability data

Contains Red List materials

Country of product manufacture

Recyclability
