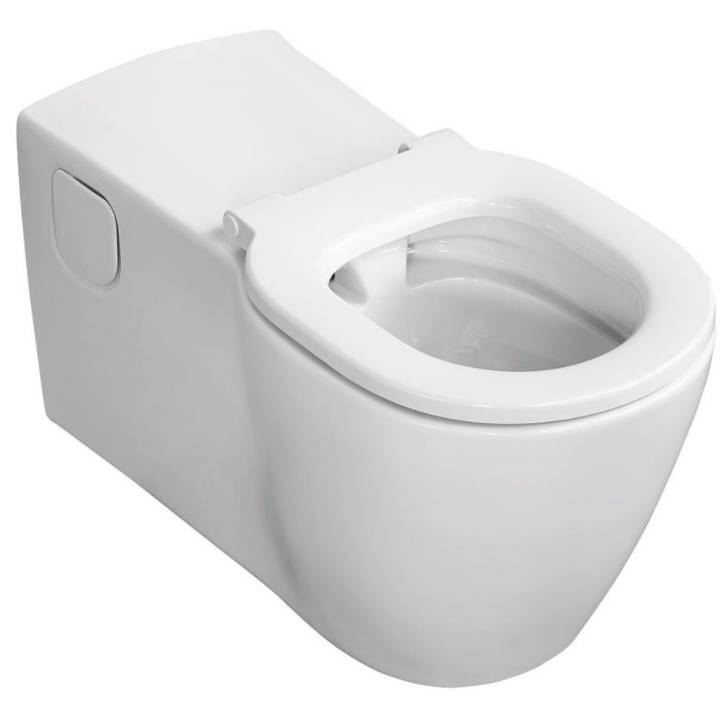

Concept Freedom Wall Hung 75 cm Projection Rimless Toilet
Verified by manufacturer over a year ago
Wall hung elongated toilet bowl.
Application
Suitable for domestic or commercial use.
Description
Concept Freedom wall hung rimless toilet bowl with horizontal outlet, 75 cm projection. The 75 cm projection bowl is Doc M compliant.
Features and benefits:
- Domestic and commercial use.
- Part of the extensive Concept suite.
- Slow close seat option.
- 75 cm projection.
- Doc M Compliant.
- Luxury design.
General information
Color | White |
Material | Vitreous china Guidance for specification option: Vitreous china. |
Width | 361 mm |
Height | 377 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC pans
Standard | To BS EN 997. |
Form | Wall-mounted. |
Connecting dimensions | To BS EN 33. |
Pan height | 377 mm. |
Materials | |
Body | Vitreous china. |
Finish and colour | White. |
Water supply, outlet and seat holes | |
Outlet | Horizontal back outlet. |
Integral accessories | Not required.E2124 - Cistern.Guidance for specification option: Conceala 2 concealed cistern, bottom inlet. E4465 - Flush Plate.Guidance for specification option: Karisma dual flush plate. E8226 - WC Sat.Guidance for specification option: Concept Freedom Seat ring only for elongated bowl. S4302 - Inlet Connector.Guidance for specification option: Contour 21 inlet connector for 70 cm or 75 cm projection back to wall or wall hung toiet bowls. S6637 - Back Support.Guidance for specification option: Multi system back support, fixed 220 mm. S9139 - Support Brackets.Guidance for specification option: Commercial wall hung toilet bowl support brackets. E8225 - WC Seat.Guidance for specification option: Concept Freedom seat and cover for elongated pan. S3643 - Cistern.Guidance for specification option: Conceala 2 4.5/3 or 4/2.6 litre cistern, dual flush valve, side supply, internal overflow, alternative height plastic flushbends, no flushplate/button. |
Weight | 33 kg. Manufacturer guidanceNet weight. |
Dimensions | 361 x 750 mm. Guidance for specification option: W x D. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
