Walraven RapidRail® - Fixing Channel
Verified by manufacturer 1 month ago
WH0, hanging on single side
WH0, hanging on single side
EPD
Certificate type
Light rail fixing system alternative to strut.
Application
For many installations like standard plumbing and heating pipework, ventilation pipes and cable trays, which would otherwise use heavy and bulky 41 × 41 struts.
Description
Light rail fixing system alternative to strut.
Features and benefits:
- Exclusive lightweight but strong design
- Easier to cut, store, transport and install
- Fast-fit, pre-assembled accessories for faster installation
- Save up ro 40% fixing time
- C-profile
- Distance between rail end and first hole is always equal
- Complete range of modular fixing accessories for frame constructions
- Material: steel 1.0242 .
- Yield strength 240 N/mm².
- Pre-galvanized.
General information
Color | Silver |
Finish | Galvanized Guidance for specification option: Pre-Galvanized. |
Material | Steel Guidance for specification option: Grade 1.0242. |
Shape | Other Guidance for specification option: C - profile. |
Length | 2000 mm 3000 mm 6000 mm |
Width | 27 mm 30 mm |
Height | 18 mm 20 mm |
Uniclass | |
CAWS | H71/710 Fixings S90/815 Supports for exposed thermoplastics pipework S90/810 Supports for copper and stainless steel pipework S90/815 Supports for exposed thermoplastics pipelines S90/810 Supports for copper and stainless steel pipelines |
Specification data - Channel supports
Channels | |
Format | Slotted. |
Dimensions | 2000 x 27 x 18 mm.3000 x 27 x 18 mm.6000 x 27 x 18 mm. |
Type | C-profile, continuous perforation.Guidance for specification option: Standard. C-profile, without perforation.Guidance for specification option: On request; consult manufacturer for details. |
Material | Carbon steel. |
Finish | Pre-galvanized. |
Accessories | BIS RapidRail® cantilever arm (BUP1000), length.Guidance for specification option: Wall plate with welded C-profile. Insert length requirements; lengths available: 150 mm; 200 mm; 300 mm; 500 mm. BIS RapidRail® wall plate.Guidance for specification option: U-profile welded on wall plate. BIS RapidRail® wall plate (hinged).Guidance for specification option: Wall plate with hinging U-profile. BIS RapidRail® slide nut, M6.Guidance for specification option: Slide nut with washer and BIS RapidRail® spring. BIS RapidRail® slide nut, M8.Guidance for specification option: Slide nut with washer and BIS RapidRail® spring. BIS RapidRail® slide nut, M10.Guidance for specification option: Slide nut with washer and BIS RapidRail® spring. BIS RapidRail® Hammerfix,M8, length.Guidance for specification option: Slide nut with stud bolt, washer and BIS RapidRail® spring. Insert required length: 25 mm; 30 mm; 40 mm; 50 mm; 60 mm; 70 mm; 80 mm; 90 mm; 100 mm; 120 mm; 150 mm; 180 mm; 200 mm. BIS RapidRail® Hammerfix,M10, length.Guidance for specification option: Slide nut with stud bolt, washer and BIS RapidRail® spring. Insert required length: 25 mm; 30 mm; 40 mm; 50 mm; 60 mm; 80 mm; 100 mm; 160 mm. BIS RapidRail® ball swivel hanger,M8, length.Guidance for specification option: Slide nut with ball swivel hanger, washer and BIS RapidRail® spring. Insert required length: 45 or 70 mm. BIS RapidRail® ball swivel hanger,M10, length.Guidance for specification option: Slide nut with ball swivel hanger, washer and BIS RapidRail® spring. Insert required length: 45 or 70 mm. BIS RapidRail® connector 90°, long/long.Guidance for specification option: Connector with pre-assembled BIS RapidRail® slide nuts. BIS RapidRail® connector 90°, short/long.Guidance for specification option: Connector with pre-assembled BIS RapidRail® slide nuts. BIS RapidRail® connector 90°, short/short.Guidance for specification option: Connector with pre-assembled BIS RapidRail® slide nuts. BIS RapidRail® connector 135°, long/long.Guidance for specification option: Connector with pre-assembled BIS RapidRail® slide nuts. BIS RapidRail® connector 135°, short/long.Guidance for specification option: Connector with pre-assembled BIS RapidRail® slide nuts. BIS RapidRail® connector 135°, short/short.Guidance for specification option: Connector with pre-assembled BIS RapidRail® slide nuts. BIS RapidRail® connector.Guidance for specification option: Connector with pre-assembled BIS RapidRail® slide nuts. BIS RapidRail® T-connector.Guidance for specification option: Connector with pre-assembled BIS RapidRail® slide nuts. BIS RapidRail® X-connector.Guidance for specification option: Connector with pre-assembled BIS RapidRail® slide nuts. BIS RapidRail® cross connector.Guidance for specification option: Connector with pre-assembled BIS RapidRail® slide nuts. BIS rail end cap.Guidance for specification option: For clean finishing of rail end, covers all burrs. BIS stud bolt, M8.Guidance for specification option: Cut studs for use with RapidRail® slide nut. Insert required length: 25 mm; 30 mm; 40 mm; 50 mm; 60 mm; 70 mm; 80 mm; 90 mm; 100 mm. Consult manufacturer for lengths >100 mm, up to 200 mm. BIS stud bolt, M10.Guidance for specification option: Cut studs for use with RapidRail® slide nut. Insert required length: 25 mm; 30 mm; 40 mm; 50 mm; 60 mm; 70 mm; 80 mm; 90 mm; 100 mm. Consult manufacturer for lengths >100 mm, up to 200 mm. |
Sizes | 27 x 18 mm. 30 x 15 mm. 30 x 20 mm. 30 x 30 mm. 30 x 45 mm. |
Yield strength | 240 N/mm². |
Profile | C-profile. |
Sustainability data
Country of product manufacture | Netherlands |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 4.40 kg CO₂ eq/kg |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Third party certifications
Third party certifications
EPD

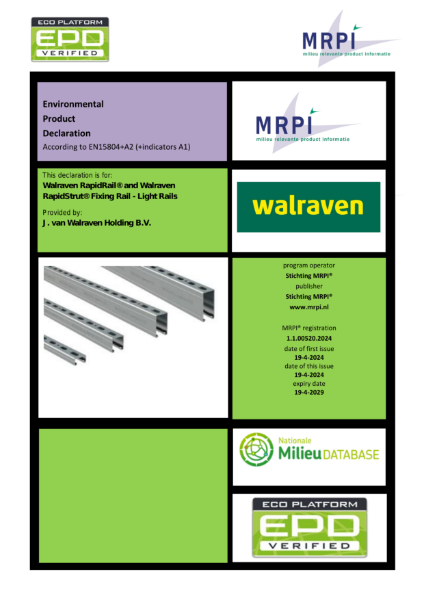

Walraven RapidRail® EPD
Literature
Certificate_LUL_RapidRail_Walraven
Certificate_RAL_QualityMark_RapidRail
Load_Tables_RapidRail_Walraven

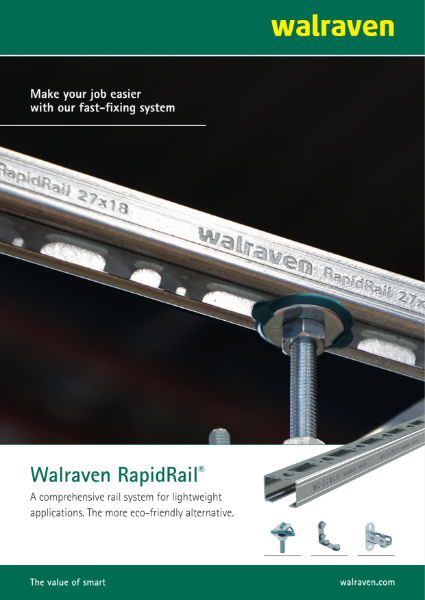

Brochure_RapidRail_Walraven
RAL-GZ-655 Brochure
Case studies

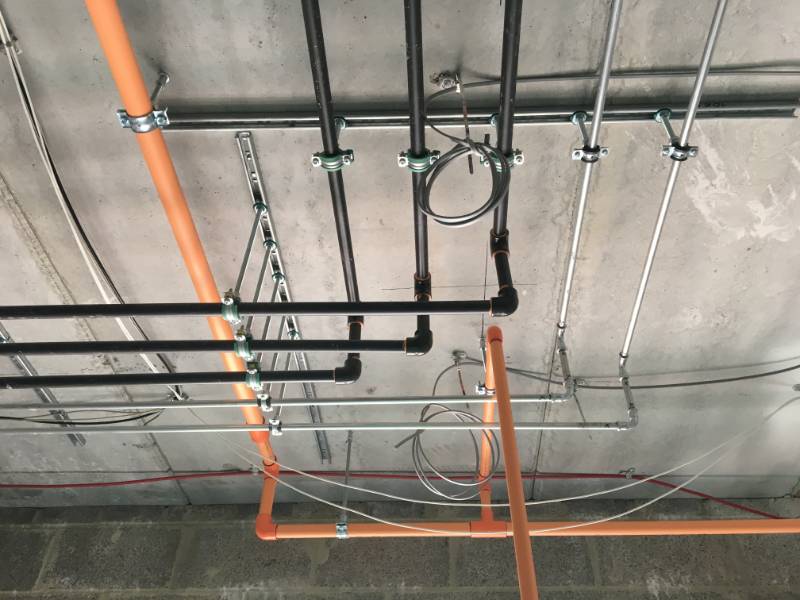

Case study - Walraven RapidRail light strut system
Similar products from Walraven Ltd
Britclips® RSWB - Rapid Sliding Wall Bracket

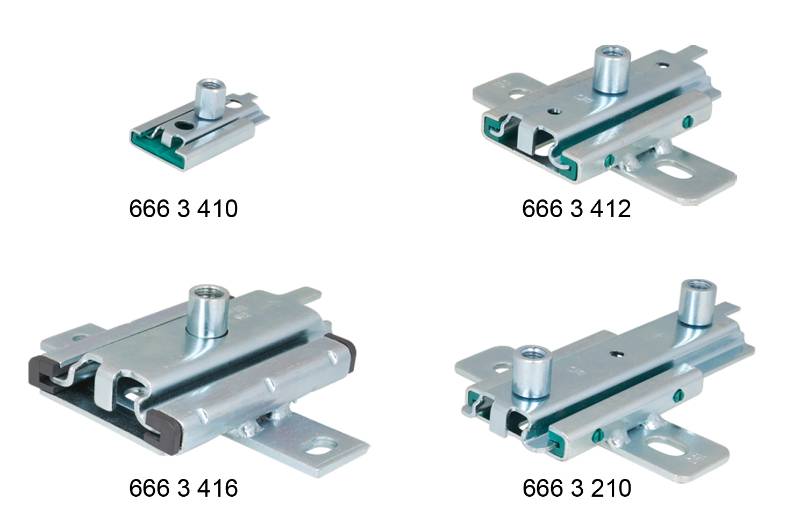

Walraven Expansion Device
