Walraven Expansion Guide

Verified by manufacturer 1 month ago

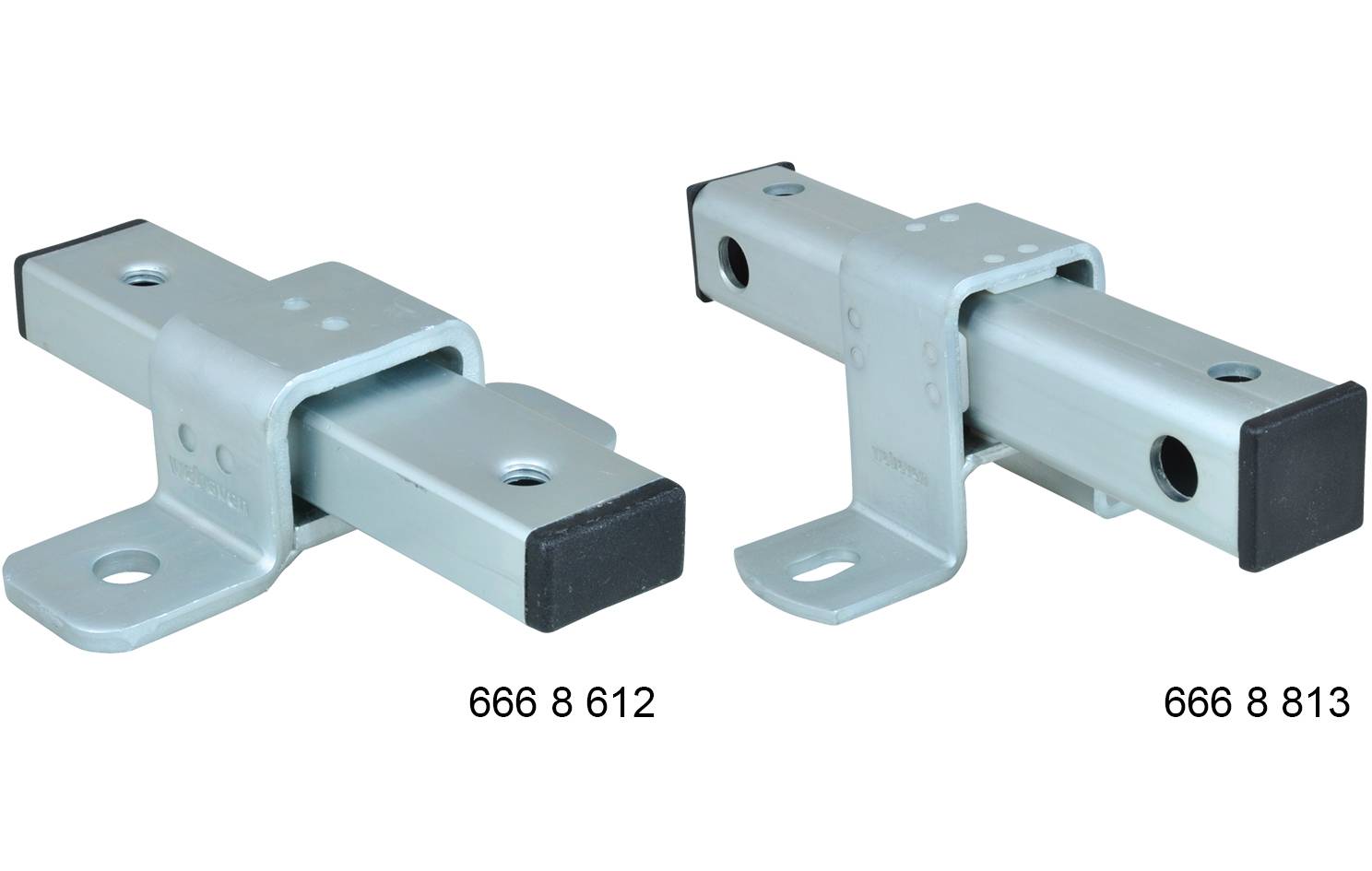

6668612 - M10/12

Walraven Ltd Variant:

Stable and safe double support for pipe expansion.

Jump to:
+44 (0)1295 753400 Website

Application

Supports for pipe expansions; indoor and outdoor applications.

Suitable for ceiling mounting (suspended) and floor mounting (standing mounted).

Description

Stable and safe double support for pipe expansion.


Features and benefits:

  • Fix directly on the building structure or in combination with rail systems.
  • Suitable for ceiling mounting (suspended) and floor mounting (standing mounted).
  • Tapped with different sized threads on opposing faces.
  • A variety of connection possibilities; can be combined with Bifix® G2 or HD1501 Pipe Clamps.
  • Material: metal parts made of steel; plastic parts made of polyethylene (PE).
  • Surface protection:
  • Product is part of the BIS UltraProtect® 1000 system.
  • Suitable for indoor and outdoor applications.
  • Stands min. 1000 hours salt spray test (maximum 5% red rust) according to ISO 9227.

General information

Color

Silver

Material

Steel

Plastic

Guidance for specification option:

Polyethylene (PE).

Uniclass

Pr_80_77_27_15 Channel supportsPrimary

CAWS

P20/30 Proprietary

P20/170 Proprietary

Specification data - Channel supports

Channels

-

Load capacity

1500 N.

Format

Sliding bracket.

Dimensions

170 x 135 x 46 mm.

Guidance for specification option:

Length x width x height.

Type

FG2.

Material

Carbon steel; plastic.

Guidance for specification option:

Plastic parts made of polyethylene (PE).

Finish

BIS UltraProtect® 1000 system.

Sustainability data

Country of product manufacture

Czechia

Literature

BIS UltraProtect® 1000 Leaflet

BIS UltraProtect® 1000 Leaflet
