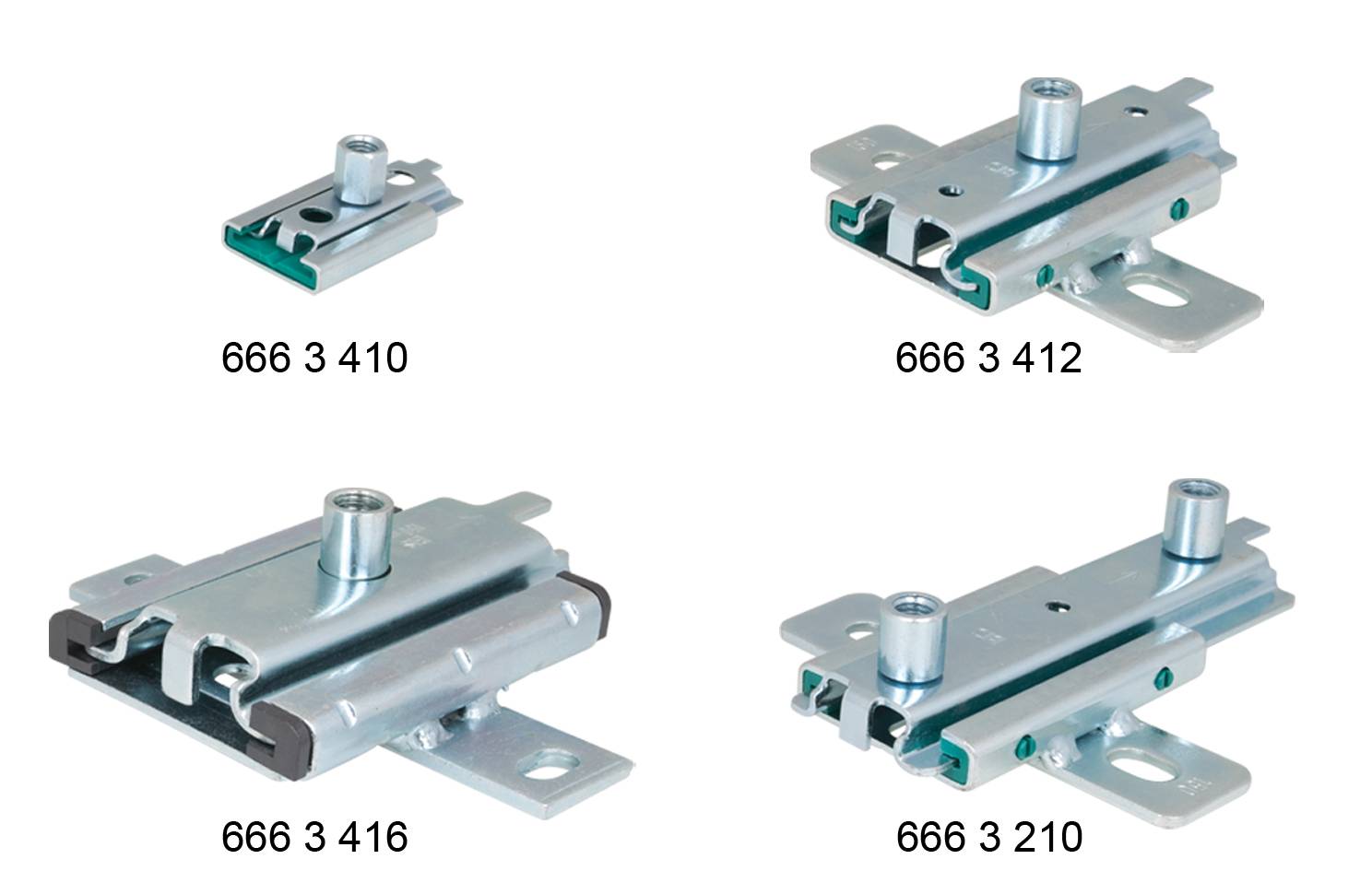

Walraven Expansion Device

Verified by manufacturer 20 days ago

6663410 - single, M8/10

Walraven Ltd Variant:

Single and double brackets for pipe extensions.

Jump to:
+44 (0)1295 753400 Website

Application

Brackets for pipe extensions; can be combined with all pipe clamps.

Suitable for ceiling mounting (suspended) and floor mounting (standing mounted).

Description

Single and double brackets for pipe extensions.


Features and benefits:

  • Fix directly on the building structure or in combination with rail systems.
  • Suitable for ceiling mounting (suspended) and floor mounting (standing mounted).
  • A variety of connection possibilities; can be combined with all pipe clamps.
  • Material: metal parts made of steel; plastic parts made of polyoxymethylene/ polyamphenylensulfid.
  • Temperature resistance up to +120°C (Part No. 6663416: temperature resistance up to +240 °C).
  • Friction coefficient μ = 0.18; Sliding friction coefficient μ = 0.14.
  • Zinc plated.

General information

Color

Silver

Finish

Zinc plated

Material

Steel

Plastic

Guidance for specification option:

Polyoxymethylene (POM)/ Polyamphenylensulfid (PPS).

Uniclass

Pr_80_77_27_15 Channel supportsPrimary

CAWS

P20/30 Proprietary

P20/170 Proprietary

Specification data - Channel supports

Channels

-

Load capacity

700 N.

Format

Sliding bracket.

Dimensions

37 x 29 mm.

Guidance for specification option:

Width x height.

Type

Single, M8/10.

Material

Carbon steel; plastic.

Guidance for specification option:

Plastic parts made of polyoxymethylene (POM)/ polyamphenylensulfid (PPS).

Finish

Zinc plated.

Sustainability data

Country of product manufacture

Germany
