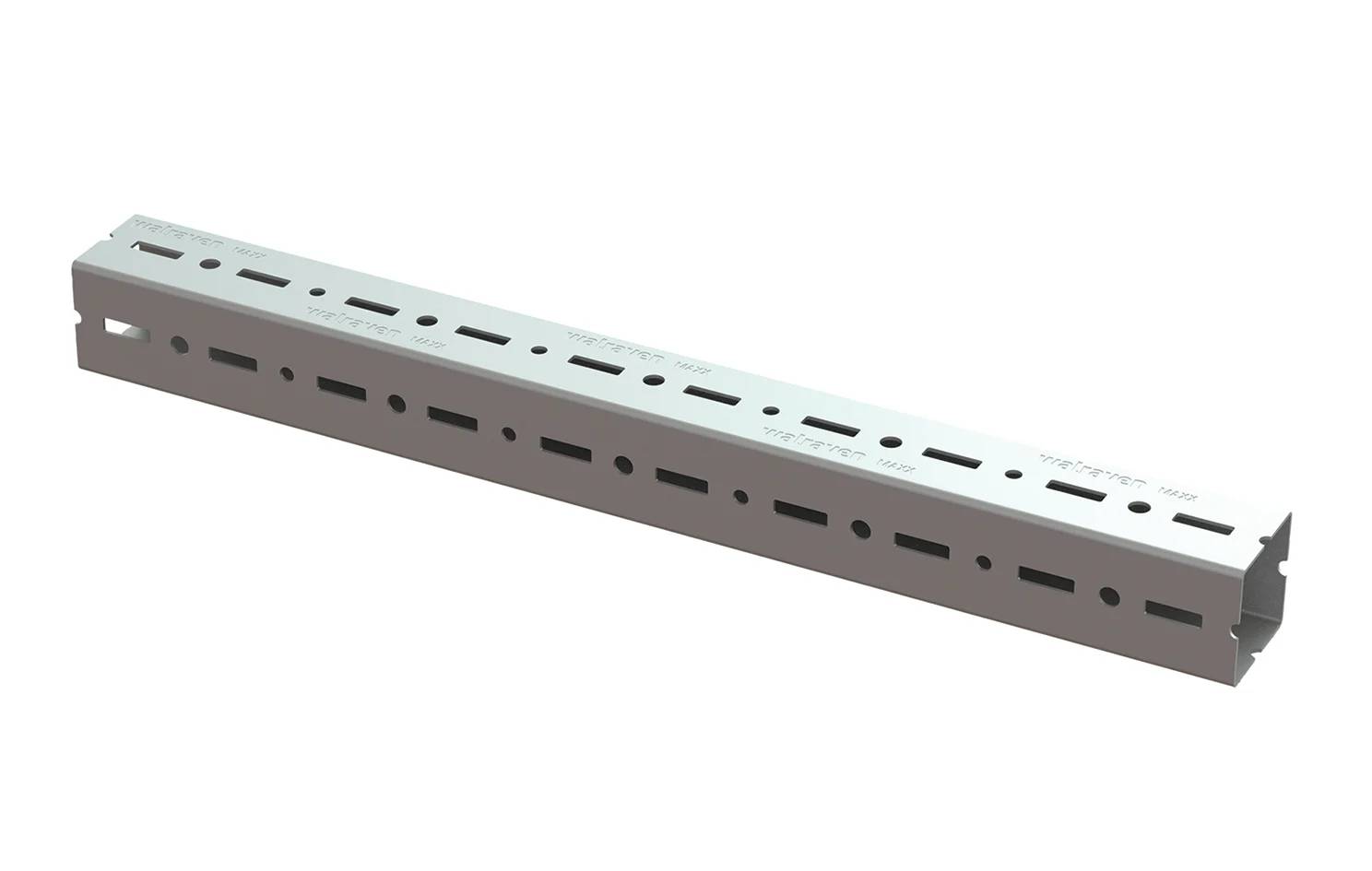

Walraven Maxx Heavy Rail Profile - Modular Support System

Verified by manufacturer 6 days ago

Walraven Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

Modular support system, safe, versatile, and corrosion-resistant system designed for heavy-duty applications.

Jump to:
+44 (0)1295 753400 Website

Application

For heavy duty pipework and industrial installation.

Description

Modular support system, safe, versatile, and corrosion-resistant system designed for heavy-duty applications.


Features and benefits:

  • Closed square profile.
  • For heavy loads.
  • Torsion stiffness for high safety.
  • Cut-to-length service on request (contact manufacturer's Technical Sales Service).
  • With continuous perforation on all sides.
  • Material: steel 1.0039 (S235JRH).
  • Hot dip galvanized.
  • Can be used with Walraven Maxx base plate (specified separately).

General information

Color

Silver

Finish

Galvanized

Material

Carbon steel

Shape

Square

Rectangle

Length

6000 mm

Width

80 mm

100 mm

120 mm

150 mm

Height

80 mm

100 mm

Uniclass

Pr_20_76_51_12 Carbon steel beams, columns, channels and teesPrimary
Pr_80_77_27_15 Channel supports

CAWS

S90/815 Supports for exposed thermoplastics pipework

S90/810 Supports for copper and stainless steel pipework

G10/150 Steel framing system

Specification data - Carbon steel beams, columns, channels and tees

Standard

-

Grades and qualities

S235JRH.

Corrosion protection

-

Galvanizing

-

Standard

Hot-dip galvanized.

Coating thickness (minimum)

Manufacturer's standard.

Dimensional tolerances

Manufacturer's standard.

Size

80 x 80 mm.

Guidance for specification option:

MX80.

Wall thickness: 3 mm.

100 x 100 mm.

Guidance for specification option:

MX100.

Wall thickness: 3 mm.

100 x 120 mm.

Guidance for specification option:

MX120.

Wall thickness: 4 mm.

100 x 150 mm.

Guidance for specification option:

MX150.

Wall thickness: 4 mm.

Manufacturer guidance

Profile.

Unit length

6 m.

Cut to length.

Guidance for specification option:

Consult manufacturer and insert requirements.

Accessories

Guidance for specification option:

A wide range of accessories are available including:

  • Matching base plate (specified separately).
  • Beam clamp.
  • U-shape bracket.
  • Connectors.
  • Hammerfix.
  • End caps.
  • Bolts.


Consult manufacturer's literature and insert requirements.

Sustainability data

Third party certifications

Third party certifications

EPD

EPD

Walraven Maxx Heavy Rail EPD
