Wallbarn Integrated Substructure for CDeck Cement Fibre Decking System - Decking System

Name: Wallbarn Integrated Substructure for CDeck Cement Fibre Decking System - Decking System
Brand: Wallbarn Ltd
SKU: 38y9raEADhSLKS3gRTbauf

Verified by manufacturer 30 days ago

Wallbarn Ltd

Product certifications:

Load Tolerance Test Certificate
Certificate type
Load Tolerance Test Certificate
Certificate type
Load Tolerance Test Certificate
Certificate type

Complete Class A Fire Decking System with integrated pedestal, aluminium joists with Cement Fibre Deck Boards (All fixings included).

Jump to:

Request BIM

+44 (0)20 8916 2222 Website

Application

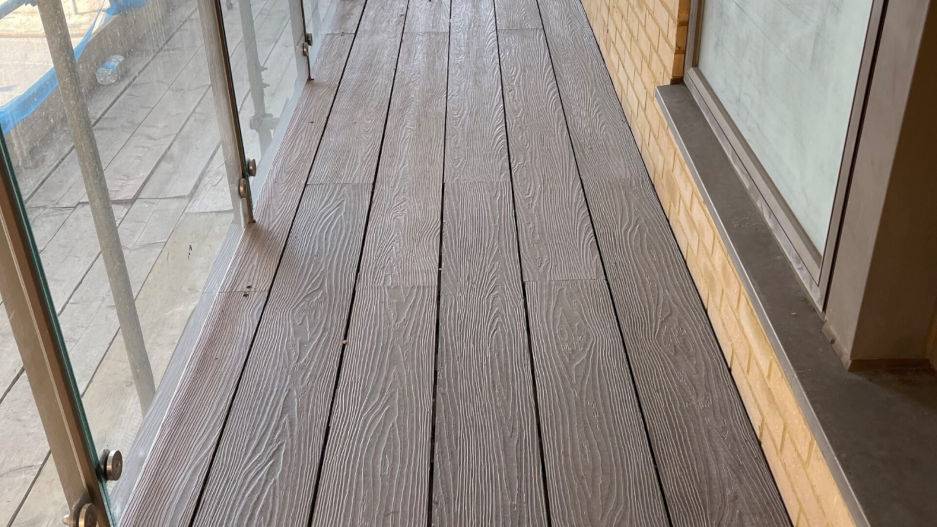

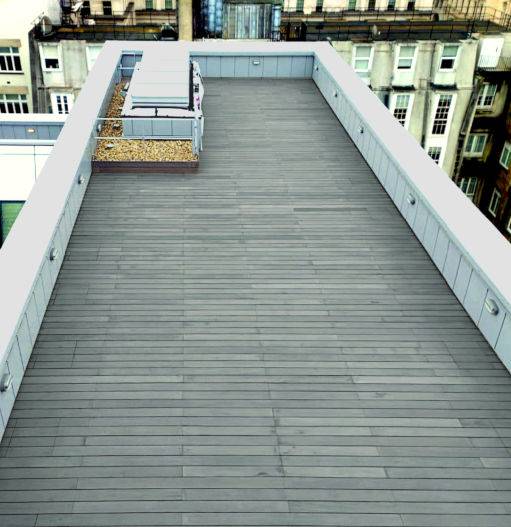

Designed for Class A specified Balconies, Terraces, Podiums and Flat Roofs.
Ideal for high traffic areas
Suited to projects that will subject to harsh weather conditions, including seaside projects.

Description

Comprehensive decking system for Class A projects. Suited for retro-fit and refurbishment projects on high rise projects.

Non-combustible fibre cement deck board with the natural appearance of timber. It is hard wearing and requires little maintenance. It meets A2-S1, D0 and A1fl ratings for fire regulation BS EN 13501-1.

Features and benefits:

A1fl-s1 fire rated – Meets the latest building regulations and fire safety advice for UK balcony market.
Easy to install on our Class A Substructure (Adjustable Pedestals & Joists).
Low maintenance.
Water, frost and heat resistant.
Timber look/ grain effect finish.
Life expectancy of 50+ years.

General information

Color	Grey
Finish	Textured Guidance for specification option: Timber look/grain effect finish. Embossed
Material	Fibre cement
Shape	Rectangle
Length	2400 mm
Width	200 mm
Height	25 mm
Warranty description	15 year Manufacturer guidance Life Expectancy for these deck boards is 50 years

Uniclass	Ss_30_20_30_25 Decking systemsPrimary
CAWS	Q37/460 Support pedestals Q55/395 Support pedestals Q55/110 Deck

SKU Code	FR-AB-CDECK-024-200-2400-DG-Z, FR-AB-CDECK-024-200-2400-QG-Z, FR-AB-CDECK-024-200-2400-SG-Z, FR-AB-CDECK-025-200-2440-AG-Z

Product range	Fire Rated Paving and Decking Systems Decking and Substructure

Specification data - Decking systems

Classification data
System performance	Guidance for specification option: Consult manufacturer and insert requirements.
Ground preparation	Guidance for specification option: Consult manufacturer and insert requirements, specify separately or omit.
Barrier membrane	Guidance for specification option: Consult manufacturer and insert requirements, specify separately or omit.
Structure	-
Foundations	Guidance for specification option: Consult manufacturer and insert requirement or omit.
Primary structure	MetalPad EX adjustable pedestal. Guidance for specification option: Height range: 26–675 mm. Mild steel pedestals with Zintec 200 exterior protective coating for long-term exterior applications. Fire classification: To BS EN 13501-1, Class A1. Consult manufacturer's literature for details and insert requirements.
Subframe	Aluminium Box & I-beam Rails, 15 mm Box Rail. Guidance for specification option: Weight: 0.80 kg/m. Dimensions (H x W x L): 15 x 60 x 2500 mm. Aluminium Box & I-beam Rails, 20 mm Box Rail. Guidance for specification option: Weight: 0.90 kg/m. Dimensions (H x W x L): 20 x 60 x 2500 mm. Aluminium Box & I-beam Rails, 25 mm Box Rail. Guidance for specification option: Weight: 0.99 kg/m. Dimensions (H x W x L): 25 x 60 x 2500 mm. Aluminium Box & I-beam Rails, 50 mm Box Rail. Guidance for specification option: Weight: 1.99 kg/m. Dimensions (H x W x L): 50 x 60 x 2500 mm. Aluminium Box & I-beam Rails, 50 mm I-Beam. Guidance for specification option: Weight: 1.61 kg/m. Dimensions (H x W x L): 50 x 60 x 3600 mm. Aluminium Box & I-beam Rails, 75mm I-Beam. Guidance for specification option: Weight: 1.92 kg/m. Dimensions (H x W x L): 75 x 60 x 3600 mm. Aluminium Box & I-beam Rails, 100 mm I-Beam. Guidance for specification option: Weight: 2.19 kg/m. Dimensions (H x W x L): 100 x 60 x 3600 mm. Manufacturer guidance Material: Aluminium 6063 T6. Fire classification: To BS EN 13501-1, Class A1.
Fasteners	Box Rail - Straight & Right Angle Bracket – Screw Fixing. Box Rail - M8 Straight & Right Angle Bracket with Wingnut. I-Plus Beam Straight & Right Angle Bracket – Screw Fixing. I-Plus Beam - M8 Straight & Right Angle Bracket with Wingnut. Manufacturer guidance Consult manufacturer's literature for details.
Deck boards	-
Material	Fibre cement deck board.
Fasteners	Guidance for specification option: Consult manufacturer and insert requirement.
Board accessories	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Guarding	Required. Guidance for specification option: Insert requirements. Not required.
Edge protection	Required. Guidance for specification option: Insert requirements. Not required.
System accessories	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Samples required	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Connections	Aluminium joists. Guidance for specification option: Aluminium joists mimic the build of traditional timber substructure but with many key advantages: Can achieve ultra-low height thresholds. As little as 55 mm total buildup depending on board choice. Will not rot, warp or bend like timber joists. 100% recyclable material. Aluminium will not expand and contract like timber joists. Lightweight and easy to work with material. Special headpiece on our pedestals to accommodate the aluminium joists. Depending on board choice, we have a number of hidden fixings available – i-Fly, 4 Hook, Remo. Composite joists. Guidance for specification option: Composite joists are sturdy and suitable for use with almost any board on the market. Will not rot, warp or bend like timber joists. Dimensions 3600 x 38 x 88 mm. 3.7 kg/m (linear). Suitable for decking joists/sub-frame. Compatible with our pedestals to lift to required height. Depending on board choice, we have a number of hidden fixings available – i-Fly, 4 Hook, Remo. iDecking EasyChange. Guidance for specification option: The EasyChange i-Decking system uses a hidden fixing that allows for the boards to be unlocked using a key. This is suitable for when access to the sub floor for maintenance or repairs is needed. Sustainable, non-rotting decking system. Integrated substructure and deck board. Clean lines, uninterrupted surface. Composite, bamboo and tropical hardwood options available. Bare foot friendly. Suitable for low thresholds (whole system from 83 mm). Faster, easier installation. Suitable for domestic or commercial use. iDecking EasyClick. Guidance for specification option: The Easyclick i-Decking system uses a hidden fixing that allows for the boards to be clicked into place. This makes for a dramatically easy and faster installation. Double aluminium rail substructure system. Profiled rail clicks into headpiece of adjustable height pedestals without need for mechanical fixings. Aluminium rail with integrated clips to secure and opposition boards. Boards extruded with special profiles to fit into clips. Self-aligning system drastically reduces errors. Faster installation. No top fixings mean no surface holes, splits or lifting.
Dimensional stability	- Manufacturer guidance Average cumulative value (24 hours of immersion in water at 20°C).
Biological durability	Guidance for specification option: Very durable - CEN/TS 15083.
Fire reaction (EN 13501-1)	A2-S1, D0 and A1fl.
