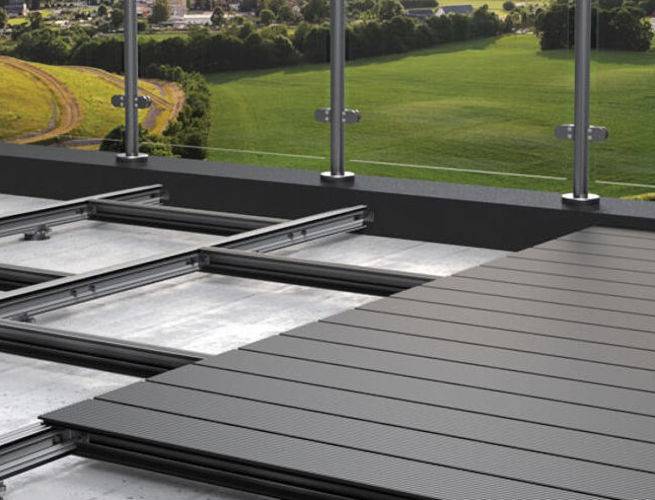

Aluminium Decking System with Wallbarn Integrated Class A Substructure - Decking System
Verified by manufacturer 30 days ago
Load Tolerance Test Certificate
Certificate type
Load Tolerance Test Certificate
Certificate type
Load Tolerance Test Certificate
Certificate type
Wallbarn Class A fire proof Aluminium Decking System. Complete system heights starting from 50mm up to over 1,000mm.
Application
- Suitable for a range of applications including high rise balconies, flat roofs, roof terraces and walkways.
- Ideal for refurbishment projects
- Ideal for projects with low finished floor levels, ensuring a complete aluminium decking system fits without compromising on performance.
Description
Aluminium decking is a lightweight, non-combustible and low maintenance system.
The aluminium decking presents with clean lines and a sleek appearance. With concealed fixings, it reflects the trends of modern building aesthetics and design. It is manufactured from 100% recycled aluminium with a durable coating that provides both excellent slip and wear resistance. It is more than up to the task of handling the rigours of everyday living.
Features and benefits:
- Meets and is tested to EN 13501-1 / A2,s1-do.
- Lightweight.
- Non-combustible.
- Low maintenance.
- 100% recycled aluminium.
General information
Color | Grey Manufacturer guidanceColour is Anthracite Grey (Dark Grey) |
Finish | Matt |
Material | Aluminium |
Shape | Rectangle |
Length | 3600 mm |
Width | 145 mm |
Height | 30 mm |
Warranty description | Ten year Manufacturer guidance10 Year Limited Warranty on boards with a 25 year life expectancy. Wallbarn Class A Substructure has a 15 Year Limited Warranty with 50 year life expectancy. |
Uniclass | |
CAWS | Q37/460 Support pedestals Q55/395 Support pedestals Q55/110 Deck |
SKU Code | FR-AD-FHBR-30-145-3600-Z |
Product range |
Specification data - Decking systems
Classification data | |
System performance | Guidance for specification option: Consult manufacturer and insert requirements. |
Ground preparation | Guidance for specification option: Consult manufacturer and insert requirements, specify separately or omit. |
Barrier membrane | Plastics sheets. |
Structure | |
Foundations | Guidance for specification option: Consult manufacturer and insert requirement or omit. |
Primary structure | Guidance for specification option: Consult manufacturer and insert requirement. |
Subframe | Guidance for specification option: Consult manufacturer and insert requirement. |
Fasteners | Guidance for specification option: Consult manufacturer and insert requirement. |
Deck boards | |
Material | Aluminium deck boards. |
Fasteners | Guidance for specification option: Consult manufacturer and insert requirement. |
Board accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Guarding | Required. Guidance for specification option: Insert requirements. Not required. |
Edge protection | Required. Guidance for specification option: Insert requirements. Not required. |
System accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Samples required | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Connections | Aluminium joists. Guidance for specification option: Aluminium joists mimic the build of traditional timber substructure but with many key advantages:
|
Rails | Single beam with noggins, cross bracing sections of rail fixed with L shaped brackets. |
Dimensional stability | Manufacturer guidanceAverage cumulative value (24 hours of immersion in water at 20°C). |
Biological durability | Guidance for specification option: Very durable - CEN/TS 15083. |
Resistance | Manufacturer guidanceBlue Stain fungi resistance. |
Fire reaction (EN 13501-1) | A2,s1-do. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Expected Life | 25 year |
Product certifications
Load Tolerance Test Certificate
Certification - Aluminium Rails / Joists Maximum Displacement Test
Load Tolerance Test Certificate
Certification - Aluminium Rails / Joists Span Test
Load Tolerance Test Certificate
Certification - MetalPad Ex - 10mm Fixed + Spreader Plate Load Test
Literature
Literature type
Brochure - Class A Substructure
Datasheet - Aluminium I-Plus Rail / Joist
Datasheet - Box Aluminium Rails / Joists
O & M Manual - Aluminium Box & I-Plus Rails / Joists
Datasheet - Class A Aluminium Deck Board
