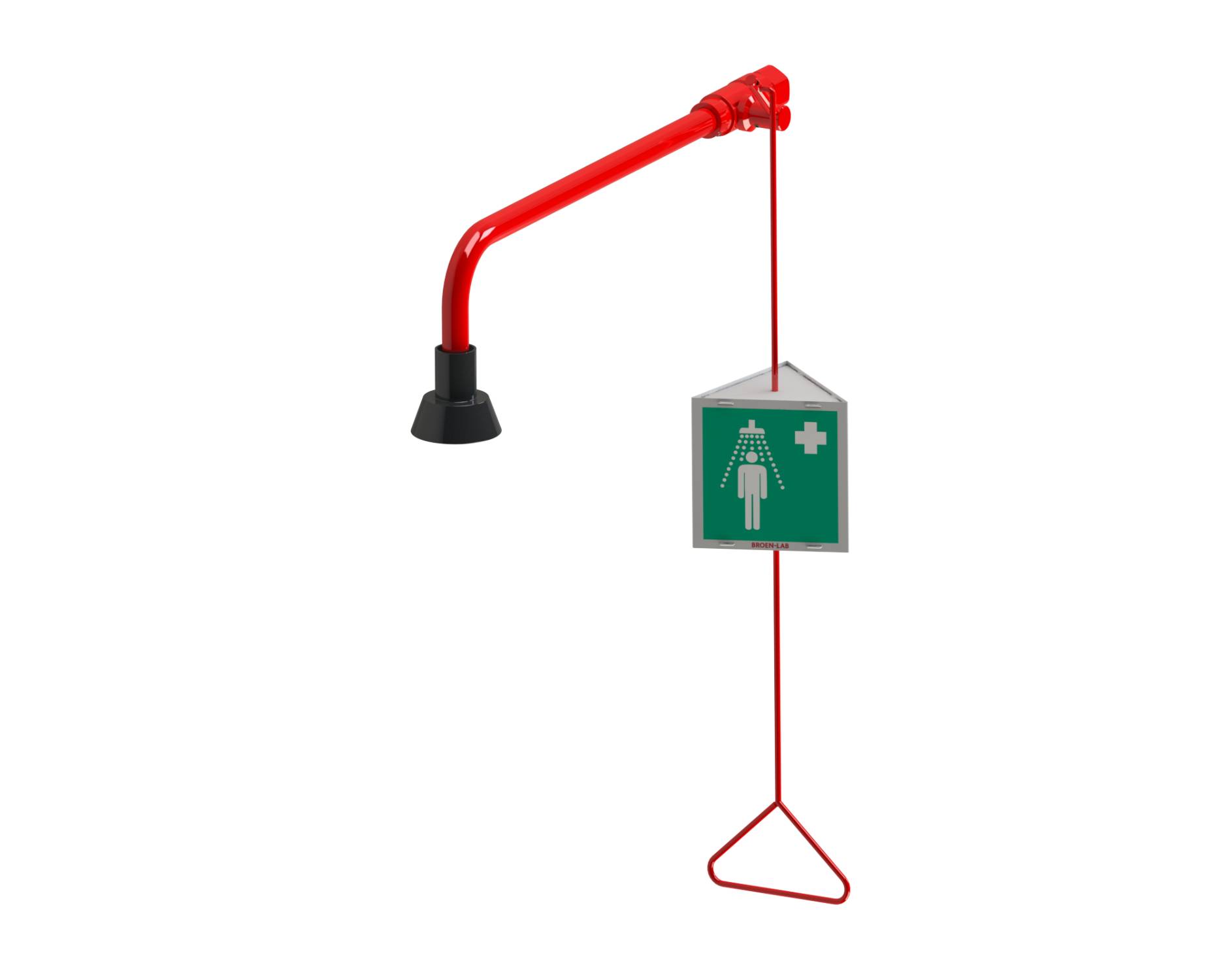

Wall Mounted G1" Emergency Drench Shower

Name: Wall Mounted G1" Emergency Drench Shower
Brand: BROEN-LAB
SKU: mBC3QebHAbcuYWvUcaGEdS

Verified by manufacturer 4 months ago

BROEN-LAB

Product certifications:

QA Certificate
Certificate type
Certificate of Compliance
Certificate type
Certifire Certificate
Certificate type

Wall-mounted emergency shower with G 1" female inlet, designed in accordance with BS EN 15154-1.

Jump to:

+45 63766376 Website

Application

For use where employees are at risk of direct contact with harmful substances. For use in pharma, industrial and education establishments and hospitals.

Description

Wall-mounted emergency shower with G 1" female inlet.

Features and benefits:

Designed in accordance with BS EN 15154-1.
Safety signs according to ISO 3864-1.
Illuminating 3D sign to be attached on pull rod, for easy and clear identification of emergency station.
Self-draining shower head.
Instruction and test sign to be wall mounted.

Installation:

If possible and based on local regulations, ensure thermostatic mixing valve for body shower in installation, designed for delivering tepid water (20-25°C) with fail-safe on hot side i.e. 17512009.
Wall bracket 17001079 is recommended in order to ensure ensure better support from wall.

Certificates

CSA - Eye Wash Models
DVGW - Combination and Safety Shower

General information

Color	Red Guidance for specification option: Signal red. Grey Guidance for specification option: Dark grey. Green
Finish	Powder-coated Guidance for specification option: BROEN-LAB Polycoat.
Material	Stainless steel Brass
Shape	Other
Length	607 mm
Width	Bespoke
Height	760 mm
Warranty description	Two year

Uniclass	Pr_40_20_27_75 Safety showersPrimary
CAWS	N13/41 Shower heads N13/375 Shower units N13/40 Shower units

SKU Code	17 575 009

Specification data - Safety showers

Classification data
Accessories	None. Supporting wall bracket. Guidance for specification option: See manufacturer's literature for details. Manufacturer guidance Safety signs (supplied) must be included.
Capacity	Single user.
Water supply	Lever action shower head. Guidance for specification option: Minimum operating pressure: 1 bar. Inlet: female ISO 228-1 G 1".
Operation	Manual - lever via pull rod.
Body	AISI 304 stainless steel/ brass.
Finish and colour	Polyester powder-coated in signal red.
Weight	3 kg (approx).
