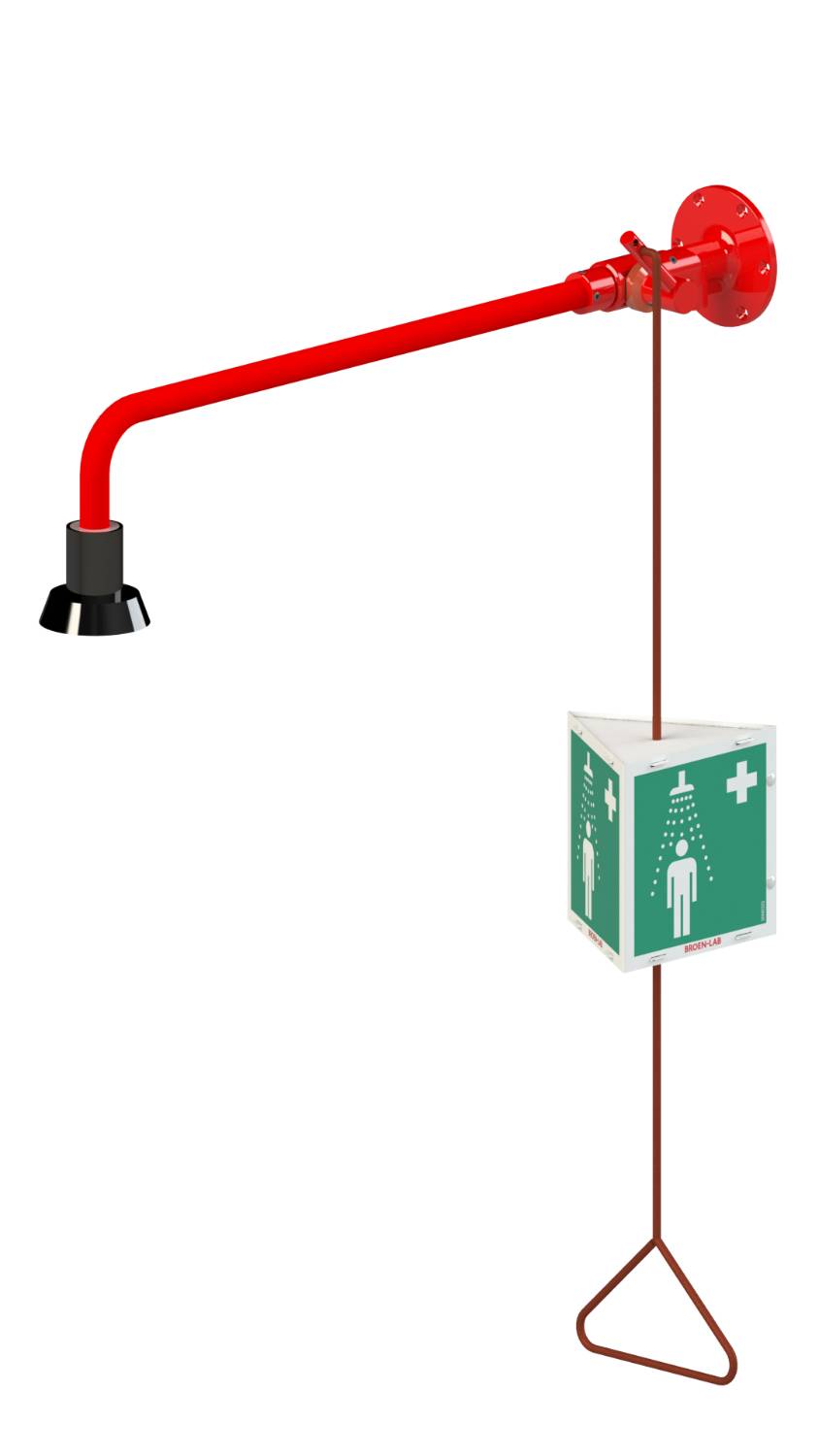

Emergency Body Drench Shower for Exposed Pipework Wall Mounted
Verified by manufacturer 4 months ago
QA Certificate
Certificate type
Wall-mounted emergency shower with G3/4" female inlet for external piping. Designed in accordance with BS EN 15154-1.
Application
For use where employees are at risk of direct contact with harmful substances. For use in pharma, industrial and education establishments and hospitals.
Description
Wall mounted emergency shower with G3/4" female inlet for external piping.
Features and benefits:
- Designed in accordance with BS EN 15154-1.
- Sign according to ISO 3864-1.
- Self-draining shower head.
- Illuminating 3D sign to be attached on pull rod, for easy and clear identification of emergency station.
- Instruction and test sign (to be wall mounted).
- Plug and play assembly.
Installation:
If possible and based on local regulations, ensure thermostatic mixing valve for body shower in installation, designed for delivering tepid water (20-25°C) with fail-safe on hot side i.e. 17513009.
General information
Color | Red Green |
Finish | Powder-coated Guidance for specification option: BROEN-LAB Polycoat. |
Material | Stainless steel Brass |
Shape | Other |
Length | 622 mm |
Height | 760 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N13/375 Shower units N13/41 Shower heads N13/40 Shower units |
Specification data - Safety showers
Accessories | Not required.Supporting wall flange.Guidance for specification option: Optional mounting; consult manufacturer's literature for details. 700 mm connection hose.Guidance for specification option: With union nut ½" inlet. Specified as SKU 17 582 009E; see manufacturer's literature for details. |
Capacity | Single user. |
Water supply | Lever action shower head. Guidance for specification option: Minimum operating pressure: 1 bar. |
Operation | Manual - lever via pull rod. |
Body | AISI 304 stainless steel/ brass. |
Finish and colour | Polyester powder-coated in signal red. |
Weight | 3 kg (approx). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Denmark |
Material | Stainless steel Brass |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
QA Certificate
ISO9001
