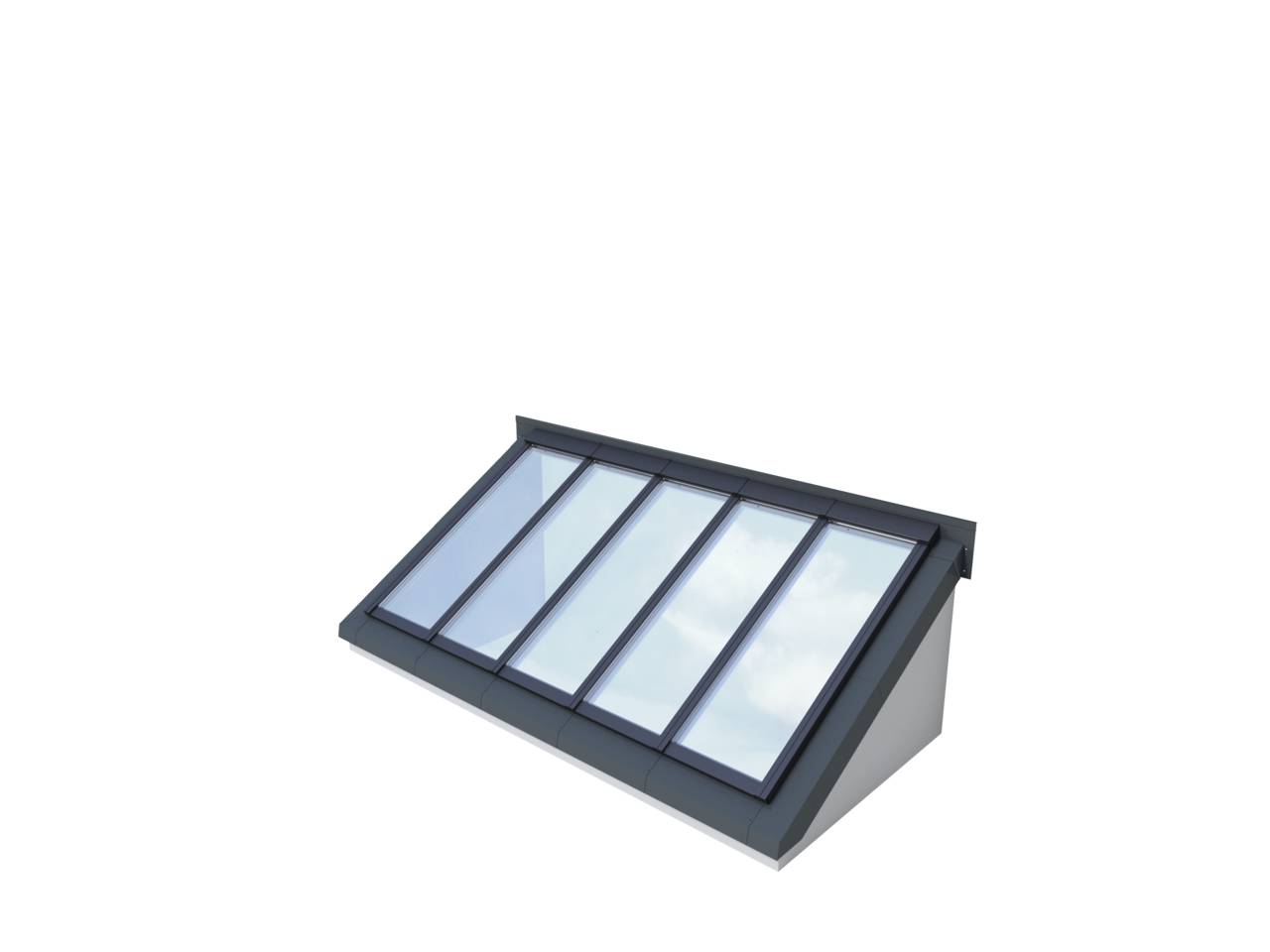

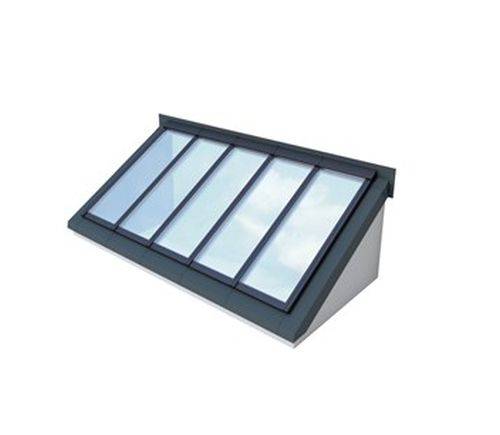

VMS Wall Mounted Longlight 5-45° - Rooflight

Name: VMS Wall Mounted Longlight 5-45° - Rooflight
Brand: VELUX Commercial
SKU: pbYEtTt1WBnurf2NkgE827

Verified by manufacturer 2 months ago

VELUX Commercial

Modular rooflight.

Jump to:

BOS

+44 (0) 1592 778916 Website

Application

A roof light series used to connect different building heights with a flat roof as the base and a vertical wall at the top.

Description

A rooflight system for commercial and public buildings.

The system consists of prefabricated modular skylights, including profiles, panes, flashings, control systems for natural and smoke ventilation and roller blinds.

Features and benefits:

Framing material ensures very low U-value.
Complete daylight and ventilation control.
Superior environmental profile compared to aluminium rooflights.
Slim profiles and flush exterior surface provide an elegant appearance.
Integrated chain actuator creates an identical look for fixed and venting modules.
Internal blinds complete the interior with a 'free-floating' design.
Bands of modular skylights pre-fitted with installation brackets and clamps that guarantee a fast and secure installation. The design of the flashing allows for configurations with pitches between 5° and 40°.

General information

Color	Grey White Black
Finish	Powder-coated Lacquered
Material	Aluminium Composite Guidance for specification option: (80% Fibreglass / 20% Polyurethane).
Shape	Rectangle
Width	675 mm 750 mm 800 mm 900 mm 1000 mm
Height	1200 mm 1400 mm 1600 mm 1800 mm 2000 mm 2200 mm 2400 mm 2600 mm 2800 mm 3000 mm Show more
Warranty description	Ten year Guidance for specification option: On modules and flashings.

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/45 Rooflights L10/460 Rooflights

Specification data - Framed rooflights

Form	Wall-mounted long light modular skylight.
Size	Available in modules from 675 x 1200 mm to 1000 x 2400 mm.
Product performance	-
Fire performance	-
Fire resistance	To EN 1365-2 / EN 13501-2 + A1.
Reaction to fire	To EN ISO 11925-2 / EN 13823, Class B.
Whole window U-value	1.2 W/m²K / 1.4 W/m²K. Guidance for specification option: Double glazed 0.7 W/m²K / 1.0 W/m²K. Guidance for specification option: Triple glazed
Frame	-
Material	Aluminium.
Finish	-
Coating	Scratch-resistant powder lacquer.
Colour	White. Guidance for specification option: Inside surface / Granite grey – cladding
Glazing or infill	-
Type	Mono-pitched toughened outer glass and laminated inner safety glass solution.
Construction	Double glazed. Triple glazed.
Colour	Not required. Grey (4083). White (4084). Black (4085). White, fire resistant (4094).
Coating	Not required. Low E coating. Sun 1. Guidance for specification option: light sun protection Sun 2. Guidance for specification option: advanced sun protection
Integral kerb	Timber with metal plate - not suitable for Ridgelight or Atrium Ridgelight. Structural steel. Concrete with metal plate.
Operation	-
Type	HFC, Fixed. HVC, Smoke ventilation. HVC, Natural ventilation.
Control	Not required. Chain actuator.
Accessories	Not required. Control Unit (WUC 102, WCC 310/320). Control Switch (WSK 102/103). Rain and wind sensor set (WLA 330). Rain Sensor (WLA 331).
Execution	Installation of framed rooflights.

Sustainability data

Contains Red List materials	No
Country of product manufacture	Denmark
Material	Aluminium Composite Guidance for specification option: (80% Fibreglass / 20% Polyurethane).
