vebroflex Comfort UV
Verified by manufacturer 4 months ago
vebroflex Comfort UV
vebroflex Comfort UV
A seamless, water-based, flexible, liquid-vinyl, polyurethane comfort resin flooring system with a pigmented, water-based UV seal coat.
Application
- Poured liquid polyurethane comfort floors, sometimes known as liquid vinyl or liquid linoleum, are increasingly being used in commercial venues – healthcare environments, sporting facilities, wellness centres, office developments and mixed-use, multi-occupancy spaces.
- The material is applied using a a notched steel trowel with tooth size no. 25 onto a primed concrete substrate or cementitious levelling screed before being spike rolled to release any entrapped air.
- Once the resin body coat has cured and hardened, an aliphatic pigmented or clear polyurethane seal coat is applied.
Application suitability:
- Medium duty, frequently trafficked public spaces.
- Healthcare facilities and residential homes.
- Schools, colleges and crèche facilities.
- Health clubs, leisure and sports facilities.
- Museums and libraries.
- Commercial offices and mixed-use or multi-occupancy spaces.
Description

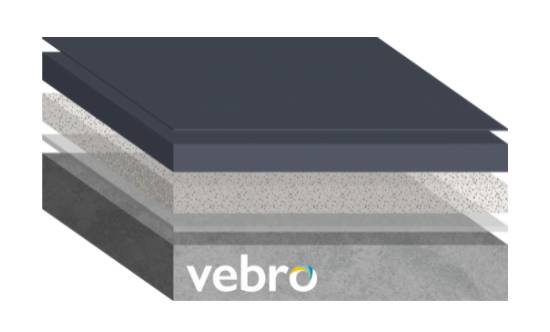

vebroflex Comfort UV / UV Plus and Decorative UV Plus is a seamless, multi-layer, flexible, polyurethane comfort resin flooring system with a pigmented UV seal coat.
vebroflex Comfort UV is a liquid-applied, environmentally friendly alternative to vinyl floor coverings, providing a hygienic finish as well as an elastic cushioning effect underfoot.
Features and benefits:
- Cushioning effect provides high levels of user comfort.
- Absorbs impact sound by up to 3 dB, or 20 dB with rubber matting.
- Reduces heat loss in multi-occupancy spaces.
- Excellent cleanability and seamless hygienic finish.
- Formulated from natural biopolymers and meets stringent low emissions criteria.
- Available in special colours, marble effects and other custom patterns.
General information
Color | Other Guidance for specification option: Choose from the RAL classic colour chart. |
Material | Polyurethane Guidance for specification option: Flexible, AgBB low emissions polyurethane body-coat (aromatic and alipatic options available). |
Uniclass | |
CAWS | M12/110 Resin flooring M12/10 Resin flooring |
Specification data - Resin flooring systems
Levelling screed | Concrete bases and suitable cement/ sand levelling screeds.Cementitious underlayments designed to receive resin flooring. |
Primer | vebro EP Primer.Guidance for specification option: Use vebro EP Primer if the substrate is below 75% RH (Relative Humidity) or 4% CM. vebro EP DPM.Guidance for specification option: Use two coats of vebro EP DPM if the substrate exceeds 75% RH or 4% CM. vebro EP DPM Plus.Guidance for specification option: Use one coat of vebro EP DPM Plus if the substrate exceeds 75% RH or 4% CM. |
Resin flooring | Resin floor coatings. |
Primer | vebro 52 Silica Sand. Guidance for specification option: Scatter final coat of primer with vebro 52 Silica Sand ( while still wet). Allow to cure. Manufacturer guidanceFinish primer. |
System thickness | 2.0—3.0 mm. Guidance for specification option: Full system once ground. |
Body coat | vebroflex PU SL (aromatic). vebroflex PU SL UV Plus (aliphatic). vebroflex PU SL UV Decorative. |
Seal coat | vebro PU UV WB Seal (Clear Matt). Guidance for specification option: Water-based, AgBB low emissions, aliphatic, polyurethane sealer. Additional slip resistance can be achieved using vebro Anti-Slip Additive in the seal coat. |
Setting time | 24 hours (light foot traffic); 72 hours (wheeled traffic). |
Cure time | Full chemical cure in 5 days. |
Colour | Light Grey RAL 7035. Agate Grey RAL 7038. Dusty Grey RAL 7037. Concrete Grey RAL 7023. Graphite Grey RAL 7024. |
Slip resistance | To DIN 51130, Class R11 (Dry). Guidance for specification option: Additional slip resistance can be achieved using vebro Anti-Slip Additive in the seal coat. |
Chemical resistance | Resistant to a very wide range of aggressive chemicals and corrosive byproducts. Guidance for specification option: For a full chemical resistance breakdown contact Vebro Polymers' Technical Services team. |
VOC content | ≤100 μg/m³. Manufacturer guidanceAgBB Low Emissions: |
Elongation at break | To DIN 53504, 200%. |
Impact sound reduction | To DIN 4109, <12 dB. Guidance for specification option: Use vebroflex Matting for additional impact sound absorption <20 dB. |
Fire resistance | To EN 13501-1, Bfl-S1. |
Adhesion strength | To EN ISO 4624, >1.5 N/mm². |
Skid resistance | To BGR 181 / DIN 51130, class R9 / R10. |
Impact resistance | To EN 13813, ≥4 Nm (IR4. Manufacturer guidanceImpact strength. |
Wear resistance | To EN ISO 5470-1, ≤80 mg. |
Standard | To EN 685, 23 (private buildings); 34 (public buildings). |
Shore hardness - A | To EN ISO 868, 80 (after 28 days). |
Tear resistance | To DIN 53515, 15 N/mm². Guidance for specification option: Approx. |
TensileStrength | To DIN 53504, 9 N/mm². Guidance for specification option: Approx. |

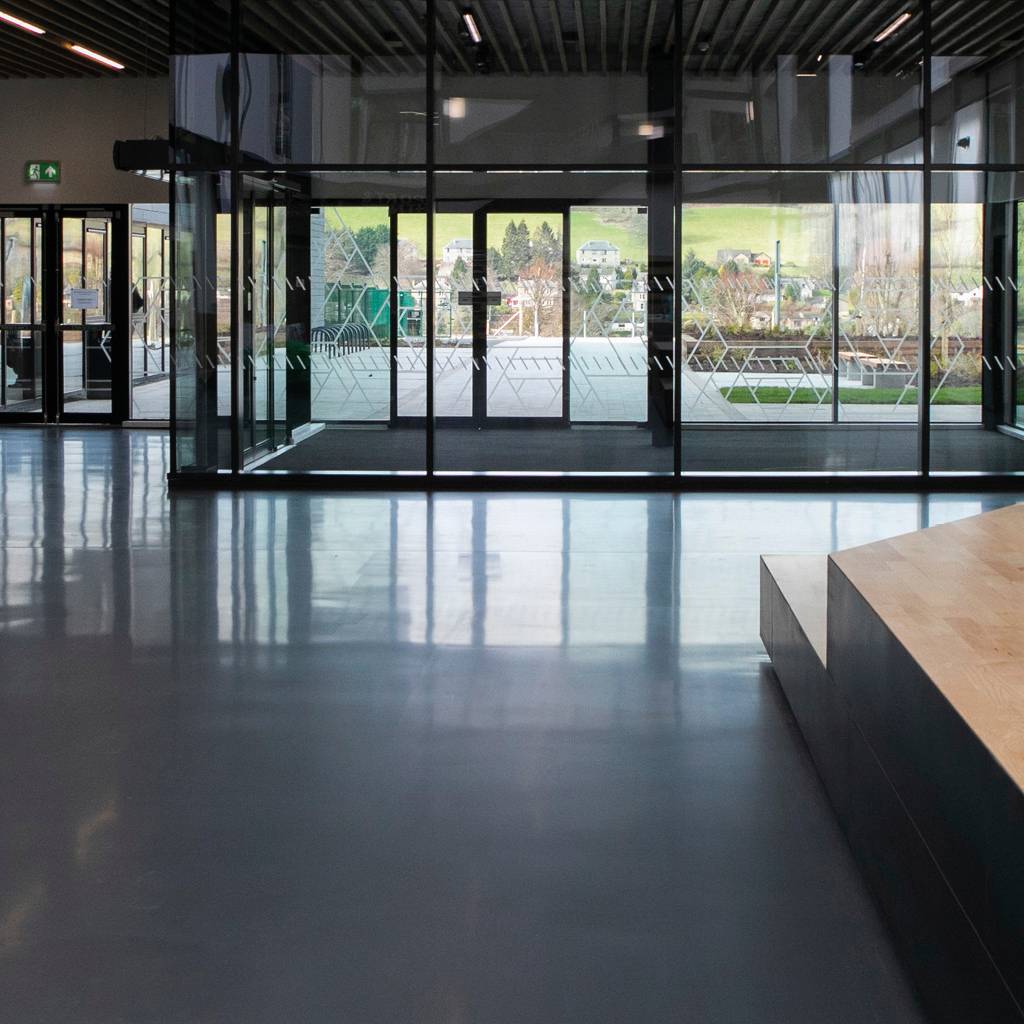

Case studies
Wedding Cake, Waddesdon, UK
