V216 Wall Hung Wash Basin - Fully Shrouded Stainless Steel Basin
Verified by manufacturer 2 months ago
Fully shrouded wall hung stainless steel wash basin.
Application
Designed for applications including public, commercial, industrial, domestic and anti-vandal environments.
Suitable for:
Bathroom
Toilet
Commercial Projects
Description
Fully enclosed (shrouded) wall-hung stainless steel basin with 32 mm diameter grated waste and overflow and captive plug. Optionally grated waste only, excluding plug.
Features and benefits:
- Low maintenance, hygienic and very durable.
- Concealed, integral wall fixings.
- Tapholes as required.
- EN 1.4301 brushed satin stainless steel.
- Option: EN 1.4401 acid resisting grade stainless steel.
- Also available as drinking fountain.
General information
Color | Silver |
Finish | Brushed Satin |
Material | Stainless steel Steel |
Shape | Circle |
Length | 390 mm |
Width | 400 mm |
Height | 280 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Product range |
Specification data - Wall-hung washbasins
Form | Wall hung wash basin.Guidance for specification option: Concealed, integral wall fixings. |
Materials | |
Body | Stainless steel to EN 1.4301.Guidance for specification option: As standard. Stainless steel to EN 1.4401, acid-resisting grade. |
Finish and colour | Brushed satin. |
Size | 390 x 400 x 280 mm.Guidance for specification option: 300 mm diameter bowl. |
Water supply, overflow and waste holes | |
Water supply | No tap holes.Single tap hole, offset.Two tap holes. |
Overflow | Rear overflow hole. |
Waste | 32 mm diameter outlet, overflow and captive plug. |
Integral accessories | Concealed integral fixings. |
Type: | Basin. Guidance for specification option: As standard. Drinking fountain. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature
GEC Anderson Combined Product Literature- The Complete Range Overview with Detailed Specification Data, Examples, Applications, History & Insight into GEC Anderson Stainless Steel
Stainless Steel Sanitaryware - A Comprehensive and Economic Range of Safe, Highly Durable, Hygienic Sanitary Appliances, Including WCs, Basins, Urinals, Mirrors, Baths and Bins

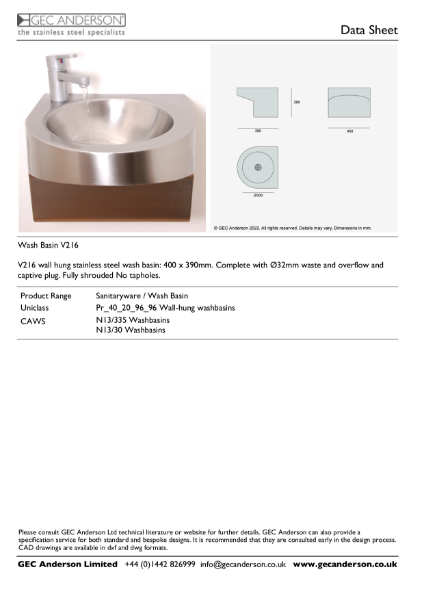

GEC Anderson Data Sheet - Wash Basin V216
