V216 HCP Wall Hung Wash Basin - Fully Shrouded Wheelchair Accessible
Verified by manufacturer 2 months ago

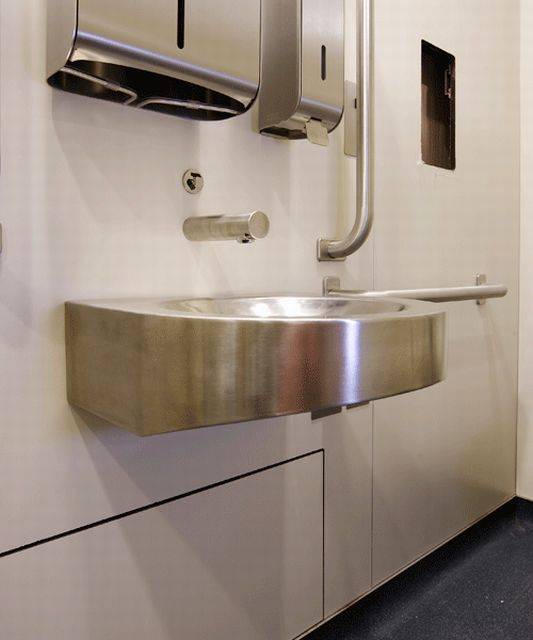

Fully shrouded wall hung wheelchair accessible stainless steel wash basin.
Application
Designed for applications including public, commercial, industrial, domestic and anti-vandal environments. Low maintenance, hygienic and very durable.
Suitable for:
Worktops
Kitchens
Commercial Projects
Sinktops
Combination Bowl
Sink With Drainer
Description
Fully enclosed (shrouded) wall-hung stainless steel basin with ultra-low profile, for wheel chair access. 32 mm diameter grated waste and overflow and captive plug. Optional grated waste only, excluding plug.
Features and benefits:
- Concealed, integral wall fixings.
- Tapholes as required.
- EN 1.4301 brushed satin stainless steel.
- Option: EN 1.4401 acid resisting grade stainless steel.
General information
Color | Silver |
Finish | Satin Brushed |
Material | Stainless steel Steel |
Shape | Circle |
Length | 390 mm |
Width | 400 mm |
Height | 130 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Product range |
Specification data - Wall-hung washbasins
Form | Wall hung wash basin.Guidance for specification option: Concealed, integral wall fixings. |
Materials | |
Body | Stainless steel to EN 1.4301.Guidance for specification option: As standard. Stainless steel to EN 1.4401, acid-resisting grade. |
Finish and colour | Brushed satin. |
Size | 390 x 400 x 130 mm.Guidance for specification option: 300 mm diameter bowl. |
Water supply, overflow and waste holes | |
Water supply | No tap holes.Guidance for specification option: No tap or chainstay, with overflow. Single tap hole.Two tap holes. |
Overflow | No tap or chainstay, with overflow.Guidance for specification option: Manufacturer standard. |
Waste | 32 mm captive plug.Guidance for specification option: 32 mm diameter outlet, overflow and captive plug. |
Integral accessories | Concealed integral fixings. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature

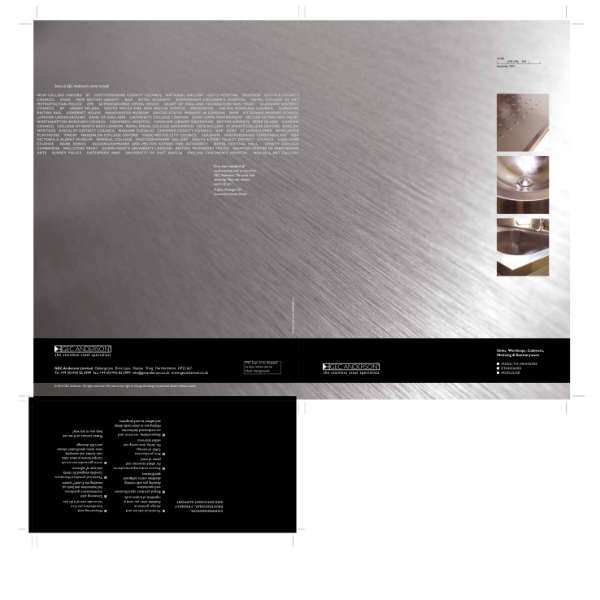

GEC Anderson Combined Product Literature- The Complete Range Overview with Detailed Specification Data, Examples, Applications, History & Insight into GEC Anderson Stainless Steel

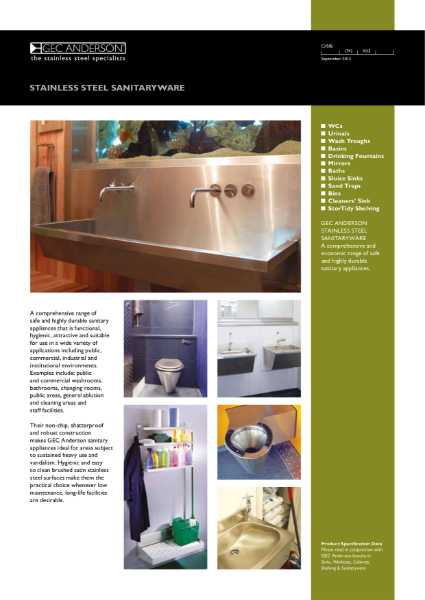

Stainless Steel Sanitaryware - A Comprehensive and Economic Range of Safe, Highly Durable, Hygienic Sanitary Appliances, Including WCs, Basins, Urinals, Mirrors, Baths and Bins

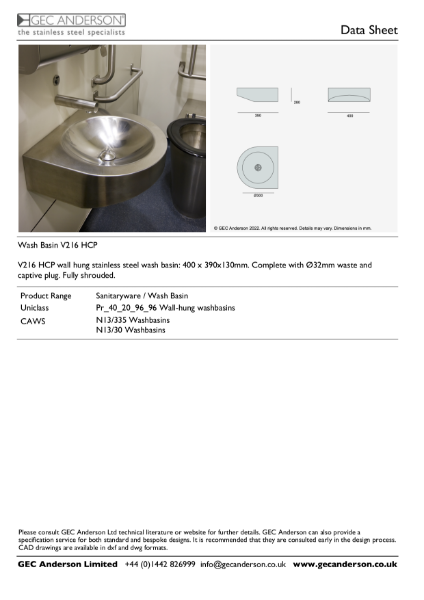

GEC Anderson Data Sheet - Wash Basin V216 HCP
Case studies
Heathrow Terminal 5
Similar products from Anderson, GEC Ltd

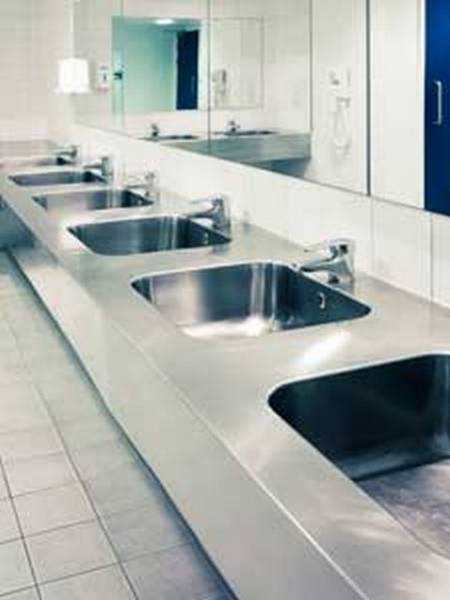

Multi-Station Wash Basin - Stainless Steel Made-to-order

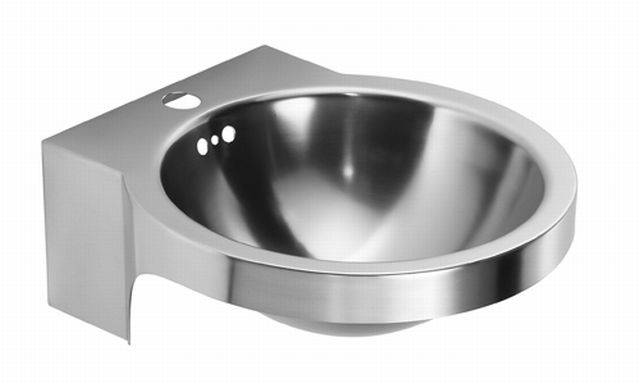

V214 Wall Hung Wash Basin - Stainless Steel
V216 Wall Hung Wash Basin - Fully Shrouded Stainless Steel Basin

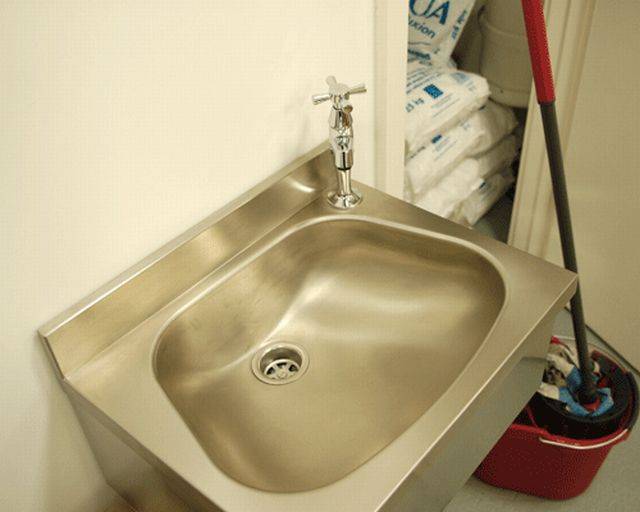

WB45 Wash Basin - Wall-hung Stainless Steel Wash Basin
