Ultrathin, Durable Cool Roofing Membrane - RENOLIT ALKORPLAN Smart F

Verified by manufacturer 3 months ago

RENOLIT ALKORPLAN Smart F - 1.5mm Thick

RENOLIT UK Ltd Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

Ultrathin and durable cool colour roofing membrane with built in Solar Shield Technology.

Jump to:
+44 (0)1670 718283 Website

Application

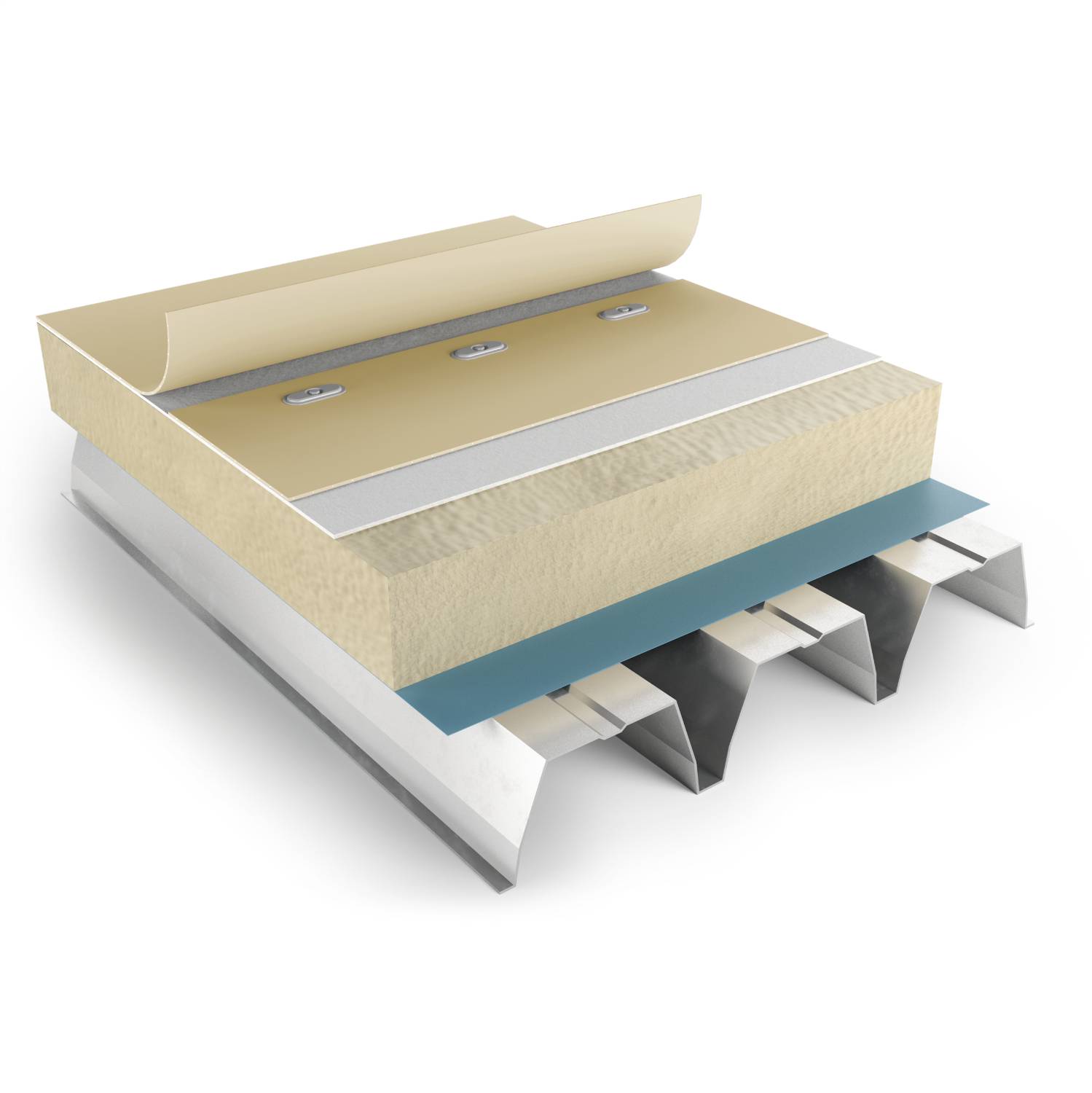

Mechanical fastening is perfectly suited for lightweight, metal deck structures, for large industrial buildings, warehouses, logistic centers, etc. It can also be applied on concrete structures or wooden decks.


The roofing membrane is fastened to the substrate along the longitudinal edges by means of pressure plates and screws. Wind load calculations can accurately determine the exact number of fasteners to be used in order to avoid any risk of wind uplift.


At the overlap, the membrane is hot air welded. The hot air welded joints are at least as strong as the roofing membrane itself. Quick and easy to apply, regardless of weather conditions, the system provides a perfect and durable watertightness of the roof.

Description

Ultrathin and durable cool colour roofing membrane with built in Solar Shield Technology. Laminated membrane of flexible P-PVC with woven polyester reinforcing used in roof waterproofing.


The future of industry lies in efficiency: the climate change; the increasing demand for natural resources and energy; and simply the consciousness that there is not a planet B; are driving mankind to find ever more efficient solutions and products.


In its permanent search for excellence, RENOLIT has created a revolutionary product for the roofing industry, offering the best performance whilst minimizing the consumption of resources. The concepts of efficiency and sustainability are the key features of this brand new product.


Features and benefits:

  • Lacquered surface.
  • Recyclable.
  • Variety of warranties available (consult manufacturer).
  • Polyester reinforced.
  • Single ply membrane.
  • UV reflecting materials added.
  • Absorbing pigments added.
  • Increased life.
  • Cool roof features.
  • CE Marked.


Sustainability is the balance between the needs of the present generation and the resources available on Earth to meet them. Hence, using less resources to obtain better performances is not only a choice, but an urgent necessity. Thus providing a higher durability membrane whilst being thinner, RENOLIT ALKORPLAN Smart is far more sustainable than any other synthetic membrane. A positive approach between the resources used and the performance provided in its whole lifespan. And at the end it can be totally recycled.


The Solar Shield Technology is a special coating that protects the upper surface of the membrane from UV rays, which are widely reflected. This breakthrough technology provides a better protection of the building surface exposed to the sun, thus reducing the ageing process.


RENOLIT ALKORPLAN Smart can be applied in every climate conditions, from the North Pole to the Equator. The traditional colours of RENOLIT ALKORPLAN Smart are meant to be used everywhere, perfectly combining with the surrounding environment and meeting the local requirements. Moreover, RENOLIT ALKORPLAN Smart can be applied on flat roofs as well as on sloping roofs, on new constructions as well as on refurbishments. Its light weight makes it the right option for every kind of roof, even the ones where it is not possible to add other traditional roofing materials.


A good maintenance service should keep your roof fully clean and functional for decades. Thanks to the smoothness of the special coating, the maintenance of RENOLIT ALKORPLAN Smart is therefore, “easier, quicker and cheaper.”

General information

Color

Grey

Ivory

Finish

Matt

Guidance for specification option:

Lacquered and smooth, with special UV reflecting and absorbing pigments.

Material

Polyester

Guidance for specification option:

Woven. Reinforcement.

Polyvinyl chloride (PVC)

Guidance for specification option:

Membrane.

Manufacturer guidance

Single ply membrane.

Shape

Rectangle

Length

15000 mm

Width

2100 mm

Height

Bespoke

Warranty description

Ten year

15 year

20 year

25 year

Uniclass

Pr_25_57_51_66 Polymeric membranesPrimary

CAWS

J42/28 Waterproof membrane

J42/400 Waterproof membrane

Product range

RENOLIT ALKORPLAN Smart Products

Specification data - Polymeric membranes

Material

Laminated membrane of flexible P-PVC with woven polyester reinforcing.

Standard

To BS EN 13956.

Third-party certification

British Board of Agrément (BBA) certificate.

Integral backing fleece

No.

Width (minimum)

2100 mm.

Thickness (minimum)

1.5 mm.

Colour

Cool Ivory.

Cool Grey.

Accessories

None.

ALKOPLAN® 35X71 unreinforced detailing membrane.

ALKOPLAN® 81038 seam sealer.

ALKOPLAN® 81080/ 81061/ 81062 corners.

ALKOPLAN® 81088 outlets.

ALKOPLAN® 81170/ 81171 Metalsheet.

Installation

Mechanically Fixed

Length

15000 mm.

Standard

Conforms to UEAtc guidelines.

Performance characteristics

Guidance for specification option:

Refer to BBA certificate.

Sustainability data

Country of material origin

Spain

Country of product manufacture

Spain

Material

Polyester

Guidance for specification option:

Woven. Reinforcement.

Polyvinyl chloride (PVC)

Guidance for specification option:

Membrane.

Manufacturer guidance

Single ply membrane.

Manufacturing plant location

Recyclability

100%

Third party certifications

Third party certifications

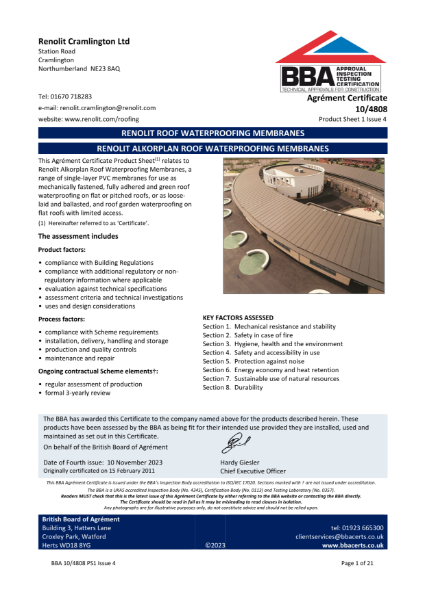

BBA Agrément Certificate

BBA Agrément Certificate

10/4808

EPD

EPD

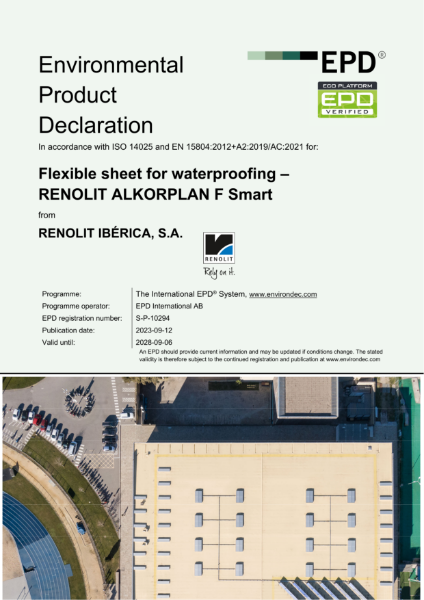

EPD - RENOLIT ALKORPLAN F Smart

Literature

Cool colour roof RENOLIT ALKORPLAN Smart

Cool colour roof RENOLIT ALKORPLAN Smart

General RENOLIT ALKORPLAN waterproofing membrane single ply Brochure

General RENOLIT ALKORPLAN waterproofing membrane single ply Brochure

RENOLIT ALKORPLAN Waterproofing for all Residential Applications

RENOLIT ALKORPLAN Waterproofing for all Residential Applications

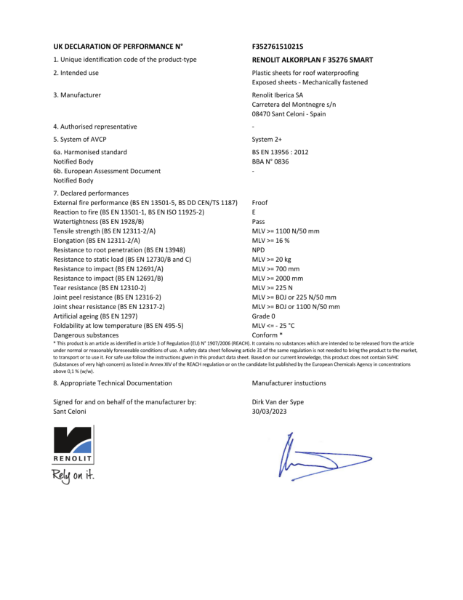

DoP - ALKORPLAN F 35276 SMART

DoP - ALKORPLAN F 35276 SMART

Similar products from RENOLIT UK Ltd

Fleece Protection Layer - RENOLIT ALKORPLUS 35121 - Fleece Protection Layer

Fleece Protection Layer - RENOLIT ALKORPLUS 35121 - Fleece Protection Layer

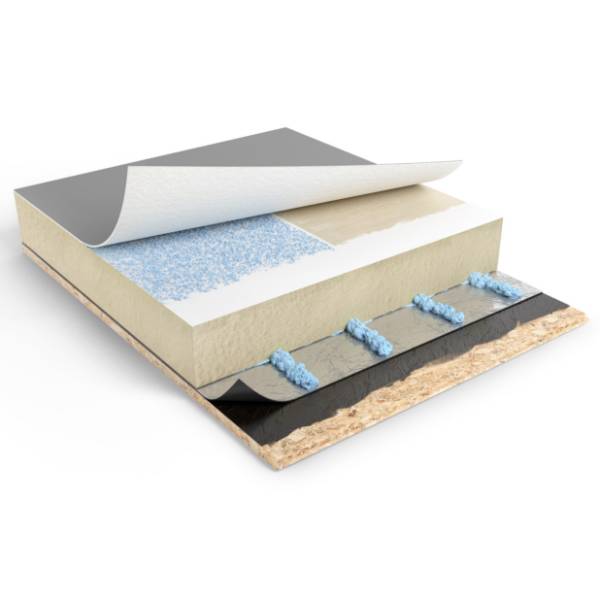

Fully Adhered System With Mineral Wool Insulation - RENOLIT ALKORPLAN A

Fully Adhered System With Mineral Wool Insulation - RENOLIT ALKORPLAN A

Fully Adhered System With PIR Insulation Board - RENOLIT ALKORPLAN A

Fully Adhered System With PIR Insulation Board - RENOLIT ALKORPLAN A

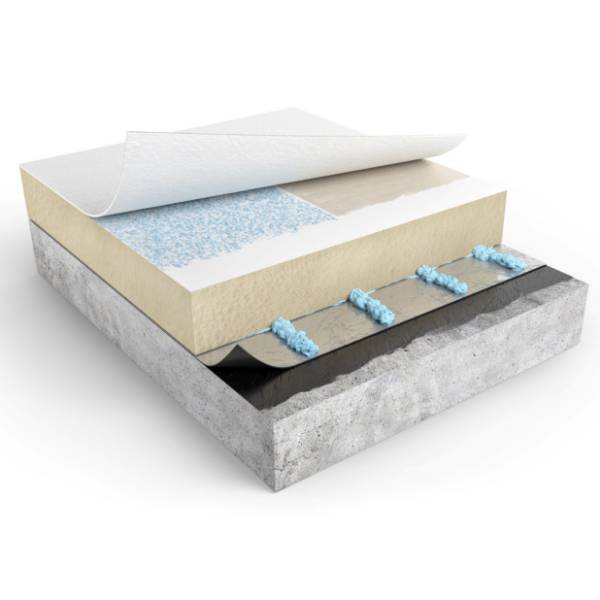

Highly Reflective and Energy-Efficient Cool Roof System, Fully Adhered With Mineral Wool Insulation - RENOLIT ALKORPLAN Bright A

Highly Reflective and Energy-Efficient Cool Roof System, Fully Adhered With Mineral Wool Insulation - RENOLIT ALKORPLAN Bright A

Highly Reflective and Energy-Efficient Cool Roof System, Fully Adhered With PIR Insulation Board - RENOLIT ALKORPLAN Bright A

Highly Reflective and Energy-Efficient Cool Roof System, Fully Adhered With PIR Insulation Board - RENOLIT ALKORPLAN Bright A

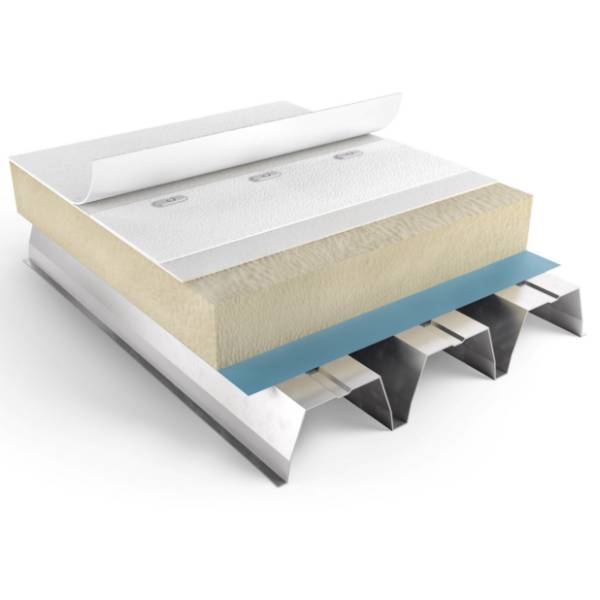

Highly Reflective and Energy-Efficient Cool Roof System, Mechanically Fixed Mineral Wool Insulation - RENOLIT ALKORPLAN Bright F

Highly Reflective and Energy-Efficient Cool Roof System, Mechanically Fixed Mineral Wool Insulation - RENOLIT ALKORPLAN Bright F

Highly Reflective and Energy-Efficient Cool Roof System, Mechanically Fixed with PIR Insulation Board - RENOLIT ALKORPLAN Bright F

Highly Reflective and Energy-Efficient Cool Roof System, Mechanically Fixed with PIR Insulation Board - RENOLIT ALKORPLAN Bright F

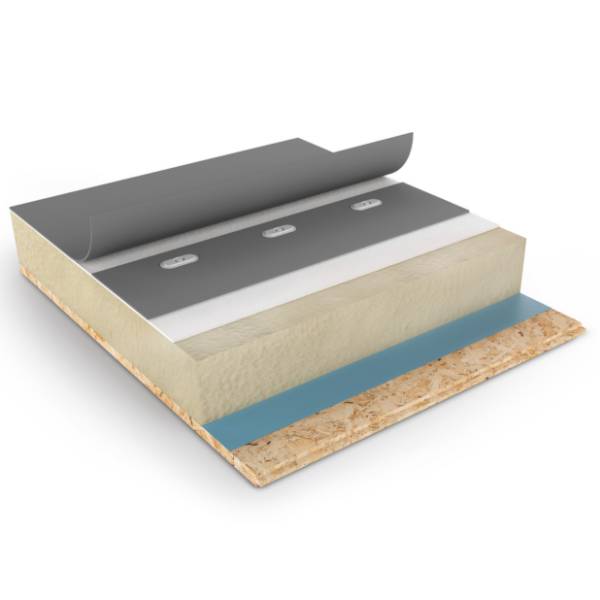

Mechanically Fixed System With Mineral Wool Insulation - RENOLIT ALKORPLAN F
