TVS ABSorb Wall Panels

Name: TVS ABSorb Wall Panels
Brand: Total Vibration Solutions Limited t/a TVS Group
SKU: a17x54u3CGrXz1aaDPzzSM

Verified by manufacturer 2 days ago

40 mm Panel

Total Vibration Solutions Limited t/a TVS Group

Acoustic wall panels.

Jump to:

+44 (0)1706 260 220 Website

Application

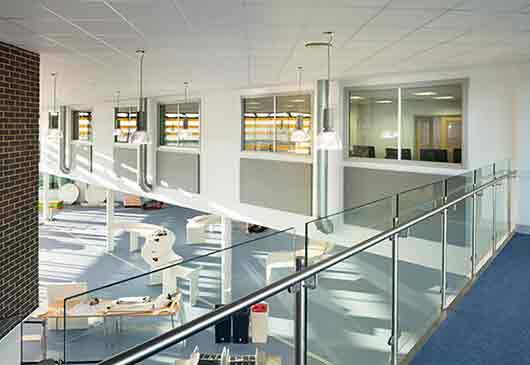

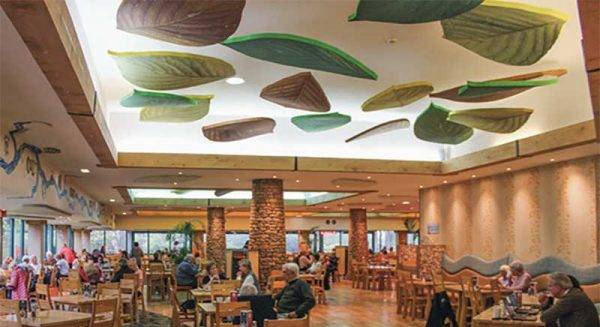

Widely used in classrooms, recording studios, offices, cinemas, reception areas and atriums.

Description

TVS ABSorb Acoustic Wall Panels provide an aesthetically pleasing solution to control reverberation time and increase the acoustic absorption of any space. The panels feature a highly absorbent glass fibre core wrapped in an acoustically transparent fabric. These panels can provide up to Class A absorption either as a complete wall covering or as a number of individually manufactured panels.

Features and benefits:

Aesthetically pleasing.
Class A absorption achieved with 50 mm or 40 mm panel.
Manufactured to the size and shape required.
25 dB attenuation.
Durable and easy to clean.
Aesthetically pleasing design.
Complete range of fixing solutions to suit the project.
80 fabric face finishes available.
TVS impaling clip and adhesive provide a quick and easy install.
The edges are reinforced to provide a square edge.

General information

Color	Other
Finish	Other
Material	Fabric Glass Fibre
Shape	Other
Length	Bespoke
Width	Bespoke
Height	40 mm 50 mm
Warranty description	Two year Guidance for specification option: Consult manufacturer's literature for details.

Uniclass	Pr_35_93_13_80 Sound attenuator infill unitsPrimary
CAWS	K13/170 Acoustic panel lining K13/170 Acoustic panel lining

Specification data - Sound attenuator infill units

Standard	To BS EN ISO 354:2003.
Form	Panel.
Rigidity	Rigid.
Application	Wall mounting.
Material	Glass-reinforced fibre.
Material density	Approx. 2.4 kg/m².
Acoustic performance	-
Purpose	Absorber.
Sound absorption	Class A to BS EN ISO 354:2003.
Fire performance	-
Fire resistance	Guidance for specification option: Panel core: Tested to BS476: Part 6, Class 0. Fabric facing: Complies with Class 1 to BS476: Part 7 and to BS EN 1021-1, cigarette. Class O fabrics can be supplied on request; consult manufacturer for details.
Dimensions	-
Size (length x width)	- Manufacturer guidance Maximum panel size: 2700 x 1200 mm. Insert requirements.
Thickness (overall)	40 mm.
Edges	Square.
Finish	Material.
Colour	- Manufacturer guidance Choice of 80 colours available (Cara and Lucia ranges) - Consult manufacturer for details and insert requirements.
Accessories	TVS impaling clip and adhesive.
