Application

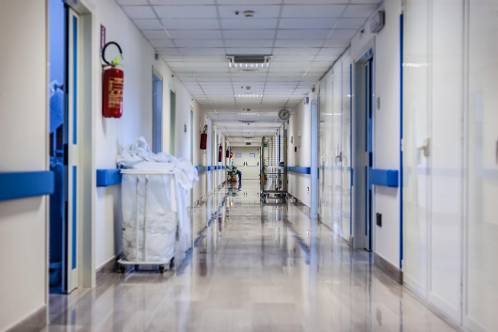

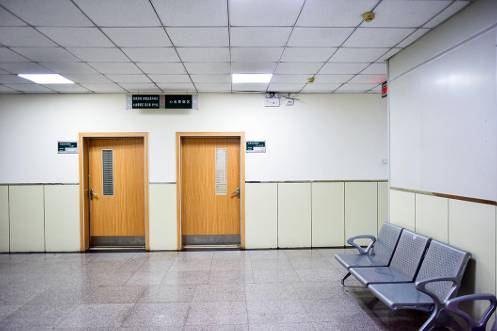

Suitable for healthcare settings, including surgical areas, hospitals, and clinical environments.

Description

TVS Healthcare is a white stone wool ceiling tile, coated with an anti-bacterial layer, sandwiched between high-quality glass fibre fleece on both sides, with a core made of recycled stone-wool, and designed for installation in T15 or T24 grid systems.

Features and benefits:

  • Stone wool consists of 100% recycled materials.
  • High-quality glass fibre fleece surface on both sides.
  • Square edge design.
  • Choice of grid system.
  • Allows easy access to ceiling voids.
  • Surface coated with anti-bacterial coating.
  • Smooth surface with no visible perforations.
  • Compliant with ISO 14001: Environmental Management Systems.
  • Tested to NF EN ISO 14644-14:2016.
  • Class A sound absorption in compliance with ISO 11654.
  • Fire rated to Class A1 and A2-s1d0 in compliance with EN 13501-1.
  • Light reflectance rate of 85%.
  • Withstands up to 100% relative humidity.
  • Operating temperature range of 0–40°C.
  • Thermal conductivity of 35 W/(m·K).

General information

Color

White

Finish

Smooth

Material

Stone wool

Shape

Square

Length

600 mm

Width

600 mm

Height

15 mm

Warranty description

15 year

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K40/265 Infill units

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

Specification data - Sound attenuator infill units

Classification data

Form

Infill unit.

Rigidity

Rigid.

Application

Ceiling mounting.

Material

Stone wool.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class A to BS EN ISO 11654.

Fire performance

-

Reaction to fire

To BS EN 13501-1, Class A1 and Class A2-s1,d0.

Guidance for specification option:

Consult manufacturer for details.

Dimensions

-

Size (length x width)

600 x 600 mm.

Thickness (overall)

15 mm.

Profile

Geometric profile.

Edges

Square.

Surface pattern

Solid.

Finish

High-quality glass fibre fleece and anti-bacterial coating.

Colour

White.

Noise reduction coefficient

0.90.

Sound absorption coefficient

0.93 αw.

Light reflectance

85%.

ThermalConductivity

35 W/(m·K).

Sustainability data

Contains Red List materials

No

Country of material origin

Turkey

Country of product manufacture

Turkey

Material

Stone wool

Recyclability

Yes.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Expected Life

15 year

Literature

TVS Healthcare Datasheet

TVS Healthcare Datasheet
