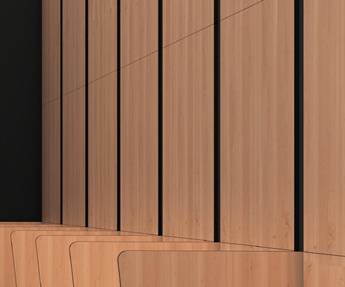

Trovex X5:80 Duct Panelling
Description

Duct panelling which conceals pipework and provides easy access for maintenance. For use in conjunction with Trovex X5:80 cubicles.

Features and benefits:

  • Wide choice of laminate finishes and unique colourful designs.
  • Full height, cubicle height or low level duct panelling.
  • Easy access, concealed clip-fixing system.
  • Custom dimensions to suit the project.
  • Pre-drilled components for accurate on-site assembly.
  • Durable SGL (solid grade laminate) panels: .
  • All clips and fixings supplied with panels.

General information

Material

SGL

12 mm thick solid grade laminate.

Uniclass 2015

Ss_25_25_45_25 Duct and wall panel lining systemsPrimary

CAWS

K32/140 Duct/ wall linings – panels only

K32/15 Duct/ wall lining panels

K32/160 Duct linings – preplumbed panels and proprietary frames

Specification data - Duct and wall panel lining systems

Product Reference

Trovex X5:80 Duct Panelling

Height

Cubicle height

Full height

Low height

Width

Insert requirement.

Material

SGL

12 mm thick solid grade laminate.

Colour/ Finish

Insert requirement from manufacturer's literature.

Standard product features

Edges:

Radiused and polished.

Product Options

Height:

Panels commence 100 mm above FFL to allow for skirting detail (supplied by others).

Fixing:

Hung on concealed clips which locate in groove on flashgap panels, screw fixed to 44 x 44 mm PSE softwood frame (supplied by others).
