TPE Vents / Aerators for Roof Deck
Verified by manufacturer 23 days ago
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type

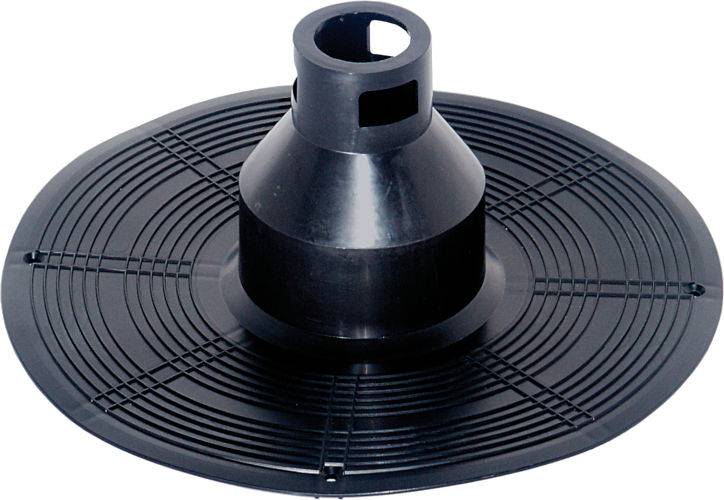

These TPE Vents / Aerators are designed to aid the removal of water vapour that forms between the roof slab and the waterproof roofing felt. Available in different heights with ribbed flange.
Application
Designed to help aerate concrete slabs and allow the structure to breath.
Description
Tough and durable vent, designed to help aerate concrete slabs and allow the structure to breath.
Features and benefits:
- It draws moisture away from a concrete slab and is placed onto the bare concrete beneath the waterproofing membrane and insulation. The membrane is applied over the base of the vent, creating a flue which helps to draw vapour out of the concrete.
- There are a series of ribs along the underside of the round base plate which encourage the movement of vapour along the base and into the flue and also act to alleviate any hot air which might appear between the slab and the membrane.
- The top of the flue has three lateral holes to allow the vapour to escape into the atmosphere.
- It is covered by a hood which overlaps the internal holes, preventing rainwater entering the system but still allowing the passage of vapour.
General information
Color | Black |
Finish | Matt |
Material | Thermoplastic elastomer (TPE) Manufacturer guidanceThermoplastic elastomer (TPE), a compound of ethylene-propylene diene monomer (EPDM) and polypropylene |
Shape | Circle Other |
Length | 160 mm 240 mm 400 mm Manufacturer guidanceThis dimensions refers to the height of the vent/aerator without the PP Cap. |
Width | 77 mm 128 mm Manufacturer guidanceThis dimension refers to the diameter of the vent at the base level. Refer to technical datasheet for detailed dimensions. |
Height | 195 mm 275 mm 435 mm Manufacturer guidanceThis dimension refers to the height of the Vent Aerator with the PP Cap on. |
Warranty description | 15 year |
Uniclass | |
CAWS | J41/485 Roof ventilators J41/80 Roof ventilators J42/490 Roof ventilators |
Product range |
Specification data - Flat roof ventilators
Material | Thermoplastic elastomer (TPE), a compound of ethylene-propylene diene monomer (EPDM) and polypropylene. |
Colour | Black. |
Size | |
Diameter or section (minimum) | 320 mm. |
Upstand (minimum) | 240 mm. |
Flange base (minimum) | 76 mm. |
Product Reference | TPE Vents |

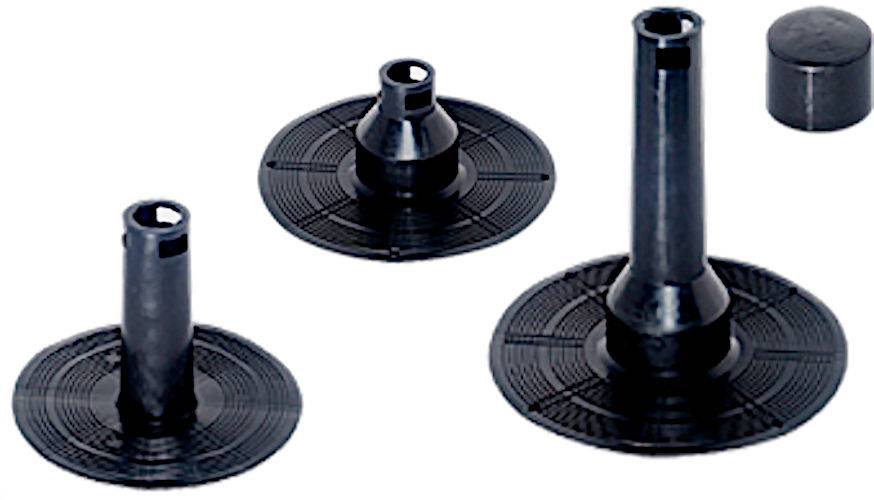

Height | 240 mm. Guidance for specification option: Standard, 76 mm flue diameter, 320 mm base plate diameter. 160 mm. Guidance for specification option: 125 mm flue diameter, 390 mm base plate diameter. 400 mm. Guidance for specification option: 125 mm flue diameter, 390 mm base plate diameter. Manufacturer guidanceThe shorter, broader vent can be used for deck areas where a shorter pipe is required. The extra-long vent pipe may be required for areas where some sort of covering is placed onto the deck and the hood needs to be exposed. |
Hood | Manufacturer's standard. Guidance for specification option: Black round cap. ESTRAER®. Guidance for specification option: Two conical funnels. Manufacturer guidanceThe ESTRAER® funnel shaped hood comprises two conical funnels which join up at a central hole at the top of pipe. It creates extra suction on the pipe, helping to draw out a greater amount of vapour and air from the concrete. For use where the concrete deck and insulation needs to be aerated and ventilated. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Thermoplastic elastomer (TPE) Manufacturer guidanceThermoplastic elastomer (TPE), a compound of ethylene-propylene diene monomer (EPDM) and polypropylene |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Third party certifications
ISO 14001 Environmental Management Systems
ISO 14001
ISO 9001 Quality Management
ISO 9001
Literature
Datasheet - TPE Vent / Aerator 160mm(H) with PP Cap
Datasheet - TPE Vent / Aerator 240mm(H) with PP Cap
Datasheet - TPE Vent / Aerator 400mm(H) with PP Cap
