Tiled Roof Ventilator Universal for tiled roofs
Verified by manufacturer 8 months ago

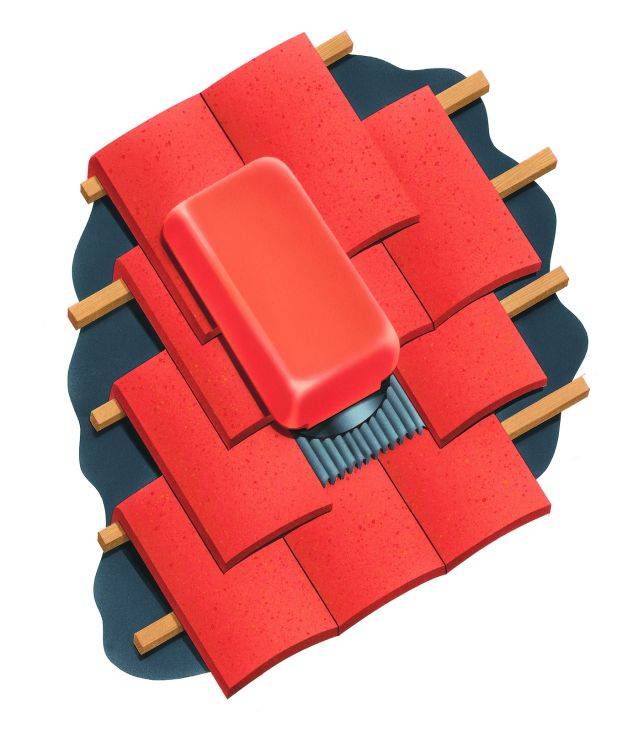

Sloping roof ventilator that can be introduced within a tiled surface.
Application
Sloping roof ventilator for use at high or low level in the slate and tiled roofs of new and refurbishment work.
Normally used on roof pitches from 20 degrees up to 70 degrees.
Description
A roof ventilator used at high or low level in slate and tiled roofs, incorporating an integral baffle and grille in the moulded base and a coloured ventilation cap.
Features and Benefits:
- Promotes an air throughput rating of 15 000 mm².
- Insect resistant integral screen.
- Suitable for new and refurbishment work.
- Suits wide range of interlocking profiled tiles and plain tiles.
- High and low level applications.
- An optional adaptor permits the ventilator to be connected to a standard 110 mm pipe.
General information
Color | Brown Grey Orange |
Finish | Natural |
Material | PVC-U Guidance for specification option: Un-plasticized polyvinyl chloride. |
Shape | Rectangle |
Size | Guidance for specification option: Size of base. (Size of vent cap 293 x 210 mm). |
Length | 405 mm |
Width | 440 mm |
Height | 75 mm |
Uniclass | |
CAWS | H60/86 Ventilator tiles H65/840 Ventilator tiles H65/86 Ventilator tiles |
Specification data - Roof slope ventilator tiles
Purpose | Roof void ventilator.To ventilate above insulation in each rafter space. |
Ventilation opening | 15 000 mm²/m.Guidance for specification option: Equivalent to 5 mm continuous gap when installed at 3 m centres; 10 mm continuous when gap installed at 1.5 m centres. |
Colour | Brown.Grey.Terracotta. |
Accessories | None.Outlet adaptor.Guidance for specification option: An optional adaptor permits this ventilator to be connected to a standard 110mm pipe if required. |
Execution | Installing roof slope ventilator tiles. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)
