Thrubeam® D400 DS6 Pressure Release Access Cover
Verified by manufacturer 3 days ago
Composite 600 x 600 mm vehicular access cover with pressure release locking mechanism allowing safe water dissipation during floods while maintaining security.
Application
The product is suitable for use in underground access covering for transport and utilities industries, particularly in areas prone to flooding or water surges where safe water dissipation and secure access covers are required.
Description

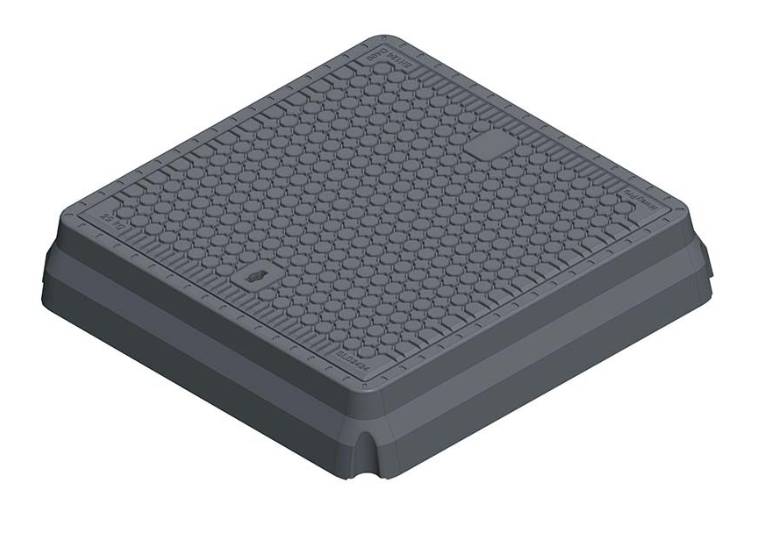

The Thrubeam D400 DS6 Pressure Release Access Cover is a composite manhole cover designed for vehicular use, measuring 600 x 600 mm. It features a pressure release locking mechanism (PRLM) that allows water to escape safely during flood surges while keeping the cover securely locked in position. This innovative technology prevents covers from sticking up or being blown out of the ground, eliminating hazards for pedestrians and motorists.
Features and benefits:
- Allows water to dissipate safely during surges by moving up to 46 millimetres.
- Maintains security with a twin locking mechanism that allows vertical movement but prevents removal without unlocking.
- Spring-loaded frame ensures the cover returns to position after water recedes.
- Conforms to EN124:2015 Class D400 standard for vehicular composite access covers.
- Tested for effectiveness and safety under flood conditions with release at 0.5 bar pressure.
- Designed and engineered in the UK for the transport and utilities industry.
General information
Color | Black Other |
Finish | Textured |
Material | Composite |
Shape | Square |
Length | 613 mm |
Width | 613 mm |
Height | 130 mm |
Warranty description | Three year |
Uniclass | |
CAWS | R12/79 Access covers and frames R12/471 Access covers and frames P31/370 Access covers/ gratings |
SKU Code | DS6-PR |
Specification data - Access covers, gratings and frames
Classification data | |
Standards | To BS EN 124. |
Configuration | PRLM pressure release locking mechanism. |
Finish | Plastics. |
Clear opening (minimum) | 600 x 600 mm. |
Load class (minimum) | D 400. |

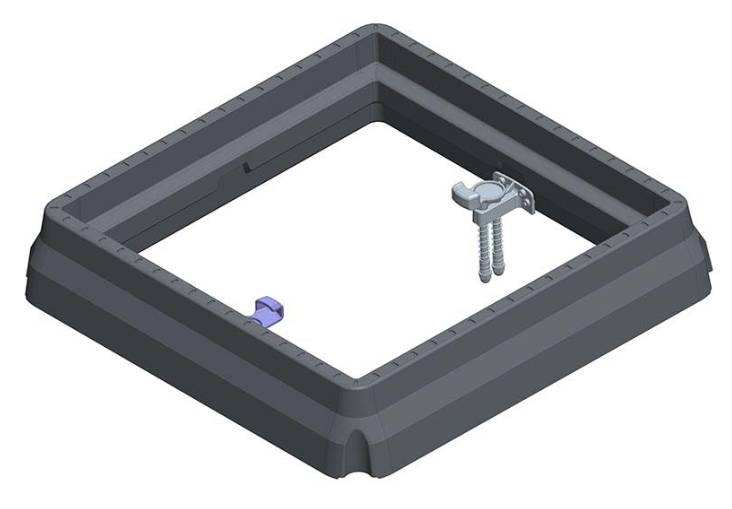

Frame or support | Frame with twin locking mechanism attachment. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Composite |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Expected Life | 20 year |
Literature
Literature type

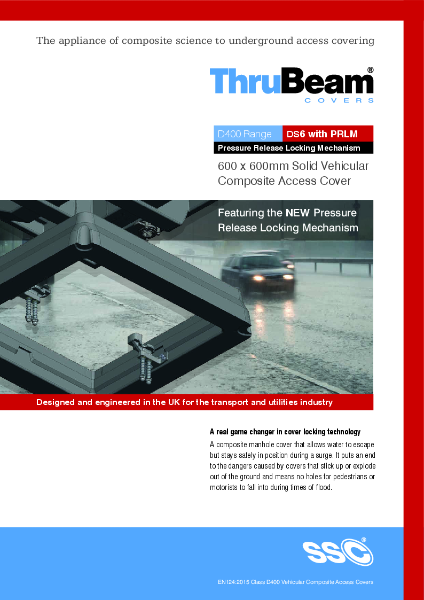

Thrubeam® D400 DS6 Pressure Release Access Cover

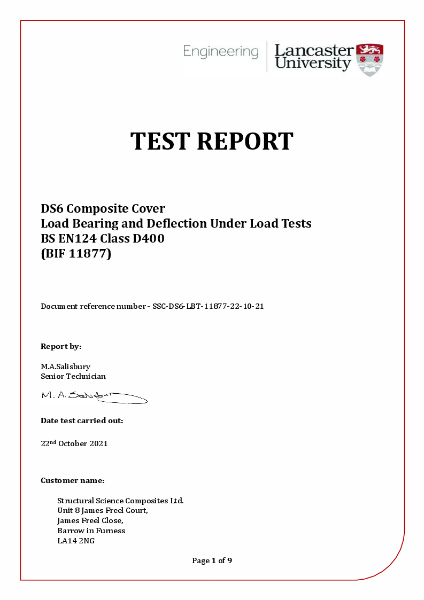

Thrubeam DS6 Load Bearing and Deflection Under Load Tests BS EN124 Class D400
