Application

Designed for use in petroleum forecourts and other underground access applications requiring high structural performance and compliance with EN 124 Class C250 standards.

Description

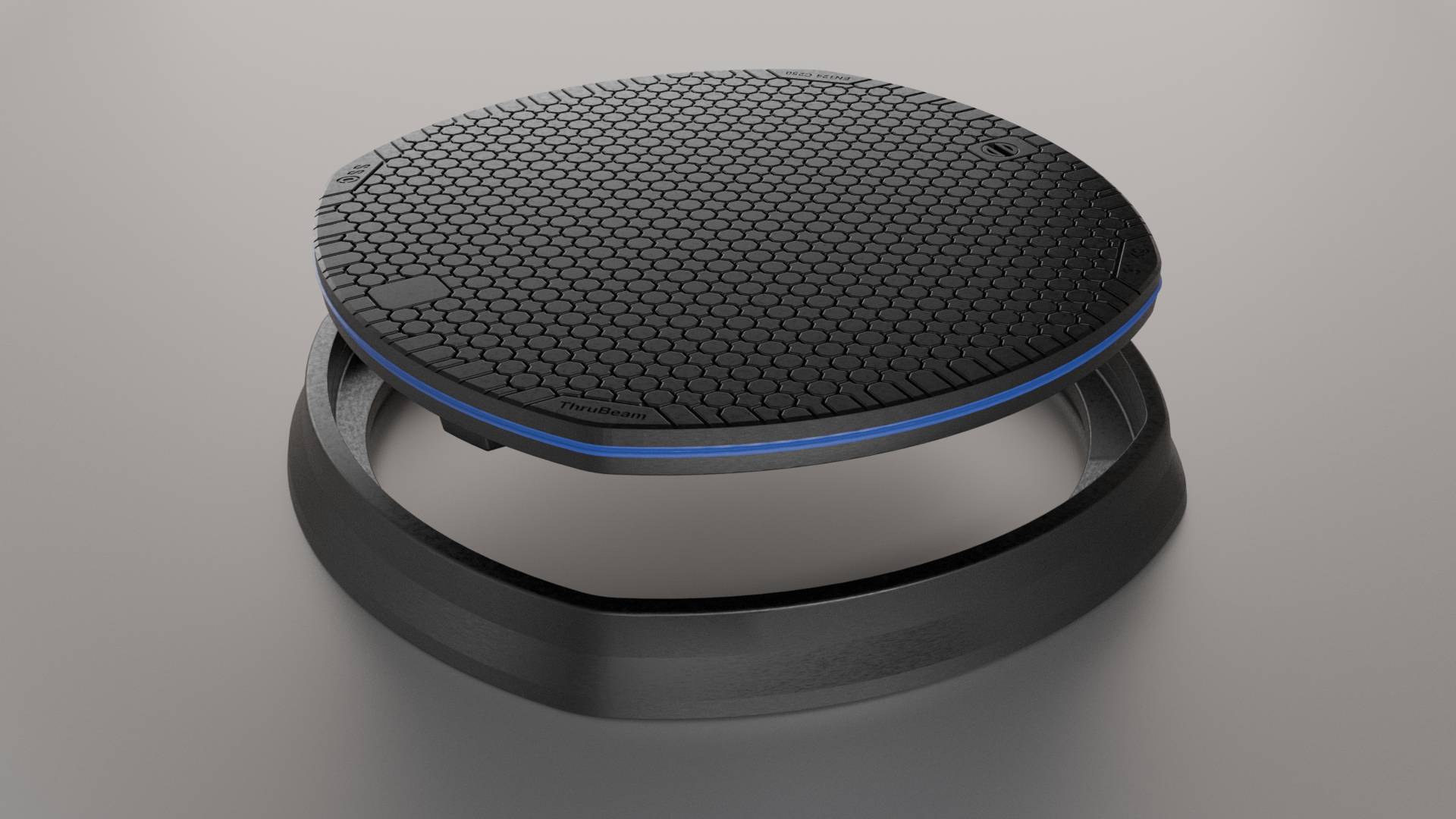

The Thrubeam® C250 CR90 Access Cover is a composite access cover designed for petroleum forecourt applications, meeting EN 124 Class C250 standards. It features high structural performance, extended working life, and permanent anti-slip properties suitable for pedestrian, cycle, motorbike, and vehicle use.

Features and benefits:

  • Meets European EN124 C250 standards.
  • Will not break or spin out; torsional resistant frames reduce wear.
  • Exceeds 0.60 coefficient of friction even when wet and retains anti-slip value throughout its working life.
  • Can be supplied with or without a lock; cover cannot be left unlocked on replacement; high security key option available.
  • Single person removal and replacement without risk of back injury using an ergonomically designed lifting tool.
  • Optional 100% watertight/sand tight seal with a unique self-cleaning edge seal.
  • Reduced risk of theft due to no residual value.
  • Transparent to radio waves, improving asset management signals.
  • Non-corrosive and resistant to fuels, sand, salt, and chemicals commonly found in road environments.
  • Electrically non-conductive or conductive if required.
  • Can be supplied with colour-coded central dip cap to identify fuels.
  • Client design service available using patented ThruBeam® technology for bespoke size and shape solutions.
  • Tread depth complies with EN 124.
  • Tread type: Embedded aggregate – uni-directional.
  • All component parts are resistant to chemical attack, diesel, petrol, salt and water or a combination of the above over the lifespan of the cover. Surface discolouration is acceptable in service.
  • All component parts do not support combustion. Products of combustion do not contain harmful chemicals (e.g. bromides).

General information

Color

Black

Finish

Textured

Material

Composite

Shape

Circle

Width

900 mm

Height

113 mm

Warranty description

Three year

Uniclass

Pr_65_52_01_02 Access covers, gratings and framesPrimary

CAWS

R12/79 Access covers and frames

P31/370 Access covers/ gratings

R12/471 Access covers and frames

Specification data - Access covers, gratings and frames

Classification data

Standards

To BS EN 124.

Configuration

CR90-A

Guidance for specification option:

CR90-A 900 mm Round locked cover with keyhousing, watertight seal and CR90-FR Frame

CR90-DC

Guidance for specification option:

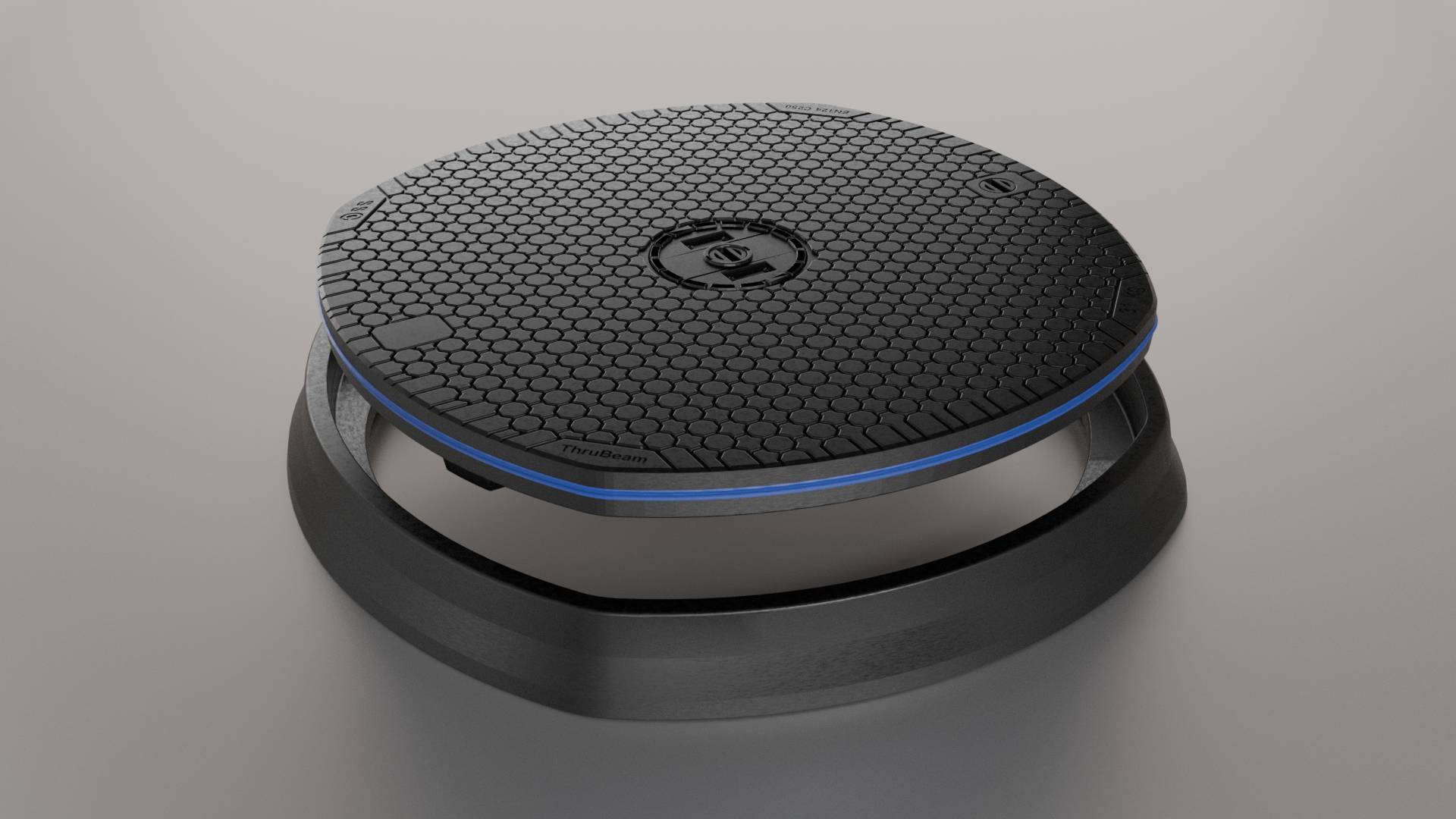

CR90-DC 900 mm Round cover with central dip cap, watertight seal and CR90-FR Frame

Manufacturer guidance

Size: 962 mm Diameter (377/8") x 116 mm Depth (41/2").

Finish

Plastics (Advanced fibre glass composite).

Clear opening (minimum)

900 mm diameter.

Frame or support

CR90-FR Frame.

Guidance for specification option:

Size: 1100 mm Diameter (435/16”) x 150 mm Depth (57/8”).

Material: Advanced fibre glass composite.

Integral accessories

Lock and security plug (lock cannot be left open on replacement of cover).

Accessories

Client logo.
None.

Skid resistance

PSRV 60 (wet polished).

Lifting points

Single key housing.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Manufacturing plant location

Material

Composite

Recyclability

0

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Expected Life

20 year
