Application

Suitable for underground vehicular access points in roads, highways, and other areas requiring Class D400 load rating. They are designed for use in environments exposed to chemical attack, diesel, petrol, salt, and water, providing secure, durable, and low-maintenance access solutions.

Description

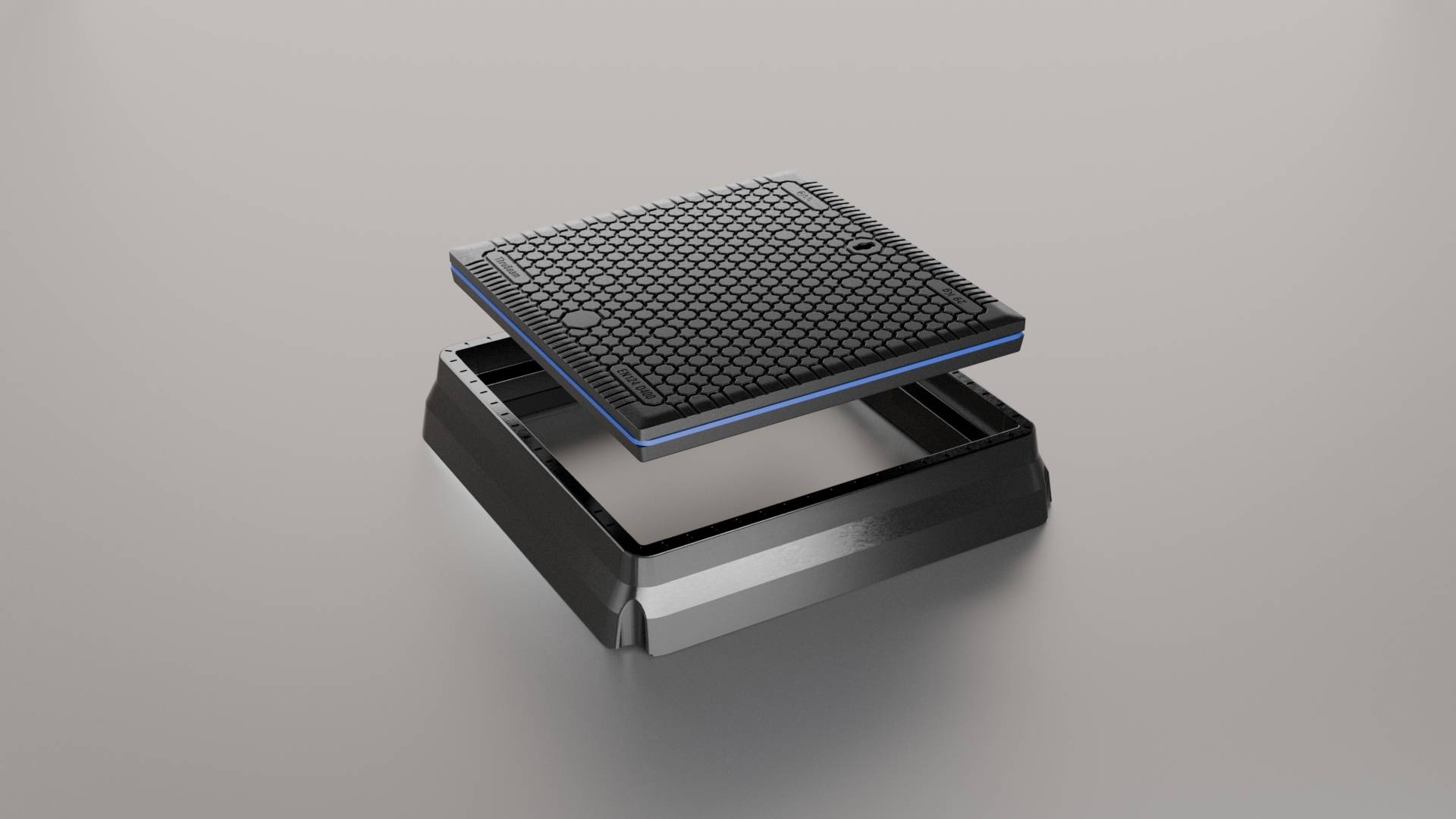

The Thrubeam® D400 Range includes square, rectangular, and round solid vehicular composite access covers designed to meet EN124:2015 Class D400 standards. These covers are made from advanced fibre glass composite, offering high structural performance, corrosion resistance, and low carbon footprint.

Features and benefits:

  • High structural performance meeting European EN124 D400 standards.
  • Extended working life with torsional resistant frames to prevent wear.
  • Permanent anti-slip surface with a co-efficient of friction exceeding 0.60 even when wet.
  • Secure and lockable with options for high security keys and lock plugs that cannot be left open on replacement.
  • Ergonomically designed for single person removal and replacement without risk of back injury.
  • Reduced maintenance due to longevity and superior performance.
  • Optional 100% watertight/sand tight sealing with a unique self-cleaning edge seal.
  • Reduced theft risk due to no residual value.
  • Transparent to radio waves to improve asset management signals.
  • Non-corrosive and resistant to chemical attack, diesel, petrol, salt, and water.
  • Electrically non-conductive or conductive as required.
  • Client design service for bespoke size and shape solutions using patented ThruBeam® technology.
  • Sealed: Yes.
  • Tread depth complies with EN 124.
  • Tread type: Embedded aggregate – uni-directional.
  • All component parts are resistant to chemical attack, diesel, petrol, salt and water or a combination of the above over the lifespan of the cover. Surface discolouration is acceptable in service.
  • All component parts do not support combustion. Products of combustion do not contain harmful chemicals (e.g. bromides).

General information

Color

Black

Finish

Matt

Material

Fibre-glass

Shape

Circle

Rectangle

Square

Length

600 mm

760 mm

900 mm

Width

600 mm

700 mm

900 mm

1100 mm

760 mm

Height

132 mm

127 mm

Warranty description

Three year

Uniclass

Pr_65_52_01_02 Access covers, gratings and framesPrimary

CAWS

R12/79 Access covers and frames

P31/370 Access covers/ gratings

R12/471 Access covers and frames

Specification data - Access covers, gratings and frames

Classification data

Standards

To BS EN 124.

Configuration

Vehicular Composite Access Cover

Finish

Plastics (Advanced fibre glass composite).

Clear opening (minimum)

600 x 600 mm.

Guidance for specification option:

Size: 672 x 672 x 132 mm (261/2" x 261/2" x 51/4").

600 x 700 mm.

Guidance for specification option:

Size: 668 x 768 x 127 mm (265/16" x 301/4" x 5")

600 x 900 mm.

Guidance for specification option:

Size: 668 x 968 x 127 mm (265/16" x 381/8" x 5").

600 mm diameter.

Guidance for specification option:

Size: 662 mm Diameter (26") 132mm Depth (53/16").

760 mm diameter.

Guidance for specification option:

Size: 814 mm Diameter (32") 132mm Depth (53/6").

900 mm diameter.

Guidance for specification option:

Size: 962 mm Diameter (377/8") 132mm Depth (53/16").

Load class (minimum)

D 400.

Frame or support

To EN 124 Class D400.

Guidance for specification option:

Manufactured from advanced fibre glass composite.

Integral accessories

Lock and security plug (lock cannot be left open on replacement of cover).

Accessories

Client logo.

Guidance for specification option:

Can be provided on top surface.

None.

Lifting points

Single key housing.

Skid resistance

PSRV 60 (wet polishes).

Sustainability data

Material

Fibre-glass
