Application

Elastomeric membranes have been developed for use in high-performance built-up systems on flat, pitched or curved roofs; when incorporated in a suitably designed multilayer system they will greatly improve the long-term performance of that system.

Tecnatorch® is intended for use as the capsheet within a bituminous built-up roofing system. The membrane utilizes a special grooved adhesion technology. The self-finished mineral surface provides a decorative and solar reflective finish for the built-up waterproofing system.

Hydrocarbon solvent-based products, such as Naphtha, paraffin and creosote will have a harmful effect and should not be allowed to come in to contact with these membranes.

Description

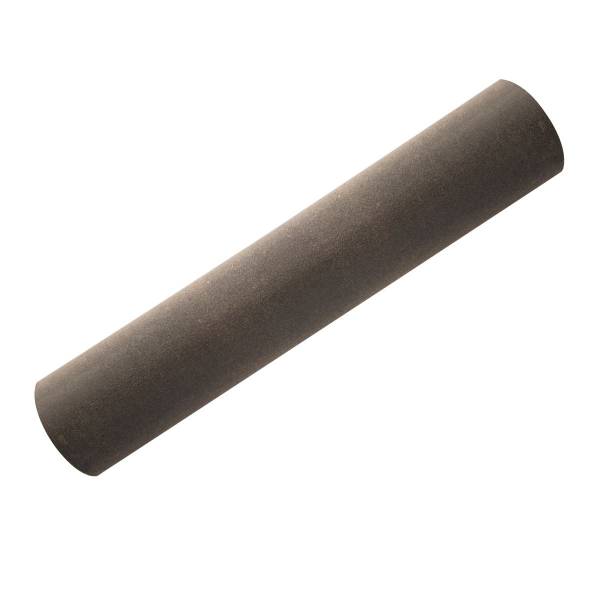

Tecnatorch® is a torch applied, polyester reinforced, SBS modified bitumen membrane. The polyester carrier is impregnated and then coated in SBS modified bitumen. The upper surface is coated with silica sand and given a 75 mm wide sand-free selvedge for enhanced lap security and is finished with a thermofusible PP film. The underside is given a special grooved profile for torch-on application and is finished with a thermofusible film to prevent adhesion in the roll.

Features and benefits:

  • Durability: Correctly installed and maintained systems incorporating Tecnatorch® cap sheets may be expected to last 20 years.
  • Compatibility: The membrane is compatible with most building materials with which it is likely to come in to contact with during roofing works.
  • Thermal: The material is unaffected by freeze/ thaw cycling. It will support temperatures from -15 to +90 °C without damage.
  • The material is impervious to water.
  • The material is not susceptible to insect attack or pest damage and is unaffected by fungi, moss, lichen, moulds or bacteria.
  • CE marked (BS EN 13707, 13, 0086-CPD-505779).

Applications:

Elastomeric membranes have been developed for use in high-performance built-up systems on flat, pitched or curved roofs; when incorporated in a suitably designed multilayer system they will greatly improve the long-term performance of that system.

Tecnatorch® is intended for use as the capsheet within a bituminous built-up roofing system. The membrane utilizes a special grooved adhesion technology. The self-finished mineral surface provides a decorative and solar reflective finish for the built-up waterproofing system.

Hydrocarbon solvent-based products, such as Naphtha, paraffin and creosote will have a harmful effect and should not be allowed to come in to contact with these membranes.

General information

Uniclass 2015

Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary

CAWS

J41/110 Built-up reinforced bitumen membrane warm deck roof covering

J41/120 Built-up reinforced bitumen membrane inverted roof covering

J41/130 Built-up reinforced bitumen membrane cold deck roof covering

J41/405 Single layer reinforced bitumen waterproof covering

Specification data - Reinforced bitumen roofing sheets

Product Reference

Tecnatorch® Sand

Standard product features

Technical characteristics:

  • Roll size (l x w): 8 x 1 m.
  • Surface: Upper: Silica sand with thermofusible polypropylene (PP) film to overlap selvedge. Lower: Thermofusible PP film.
  • Material: Styrene butadiene styrene (SBS) modified bitumen.
  • Reinforcement: Polyester.
  • Selvedge width: 75 mm.
  • Roll weight: 40 kg.
  • Thickness: 3.8 mm.
  • Mass per unit area to EN 1849-1: 4.5 kg·m².
  • Water tightness to EN 1928 (B): Pass.
  • External fire performance to EN 13501-5: FRoof (t4).
  • Reaction to fire to EN 13501-1 Class F.
  • Tensile strength to EN 12311-2 (A): 900 N/50 mm (MD and TD).
  • Elongation to EN 12311-2 (A): 35% (MD and TD).
  • Dimensional stability to EN 1107-1: ≤1%.
  • Flexibility at low temperature to EN 1109 G ≤15°C.
  • Flow resistance at elevated temperature to EN 1110: >90°C
  • Artificial ageing behaviour to EN 1296: Pass.

The external fire performance of a roof is dominated by the built-up roof system. No performance can be assessed for the product alone.
