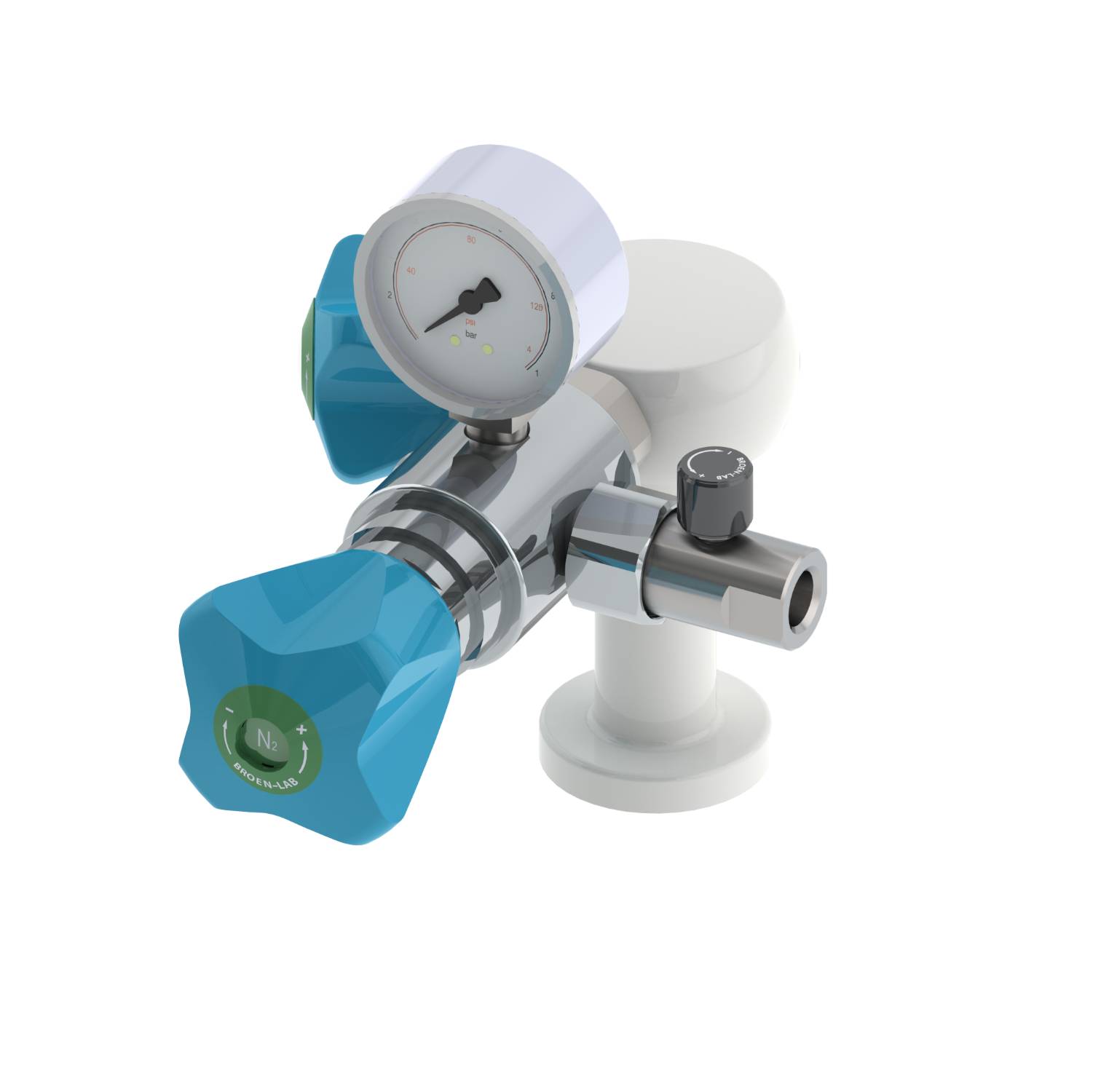

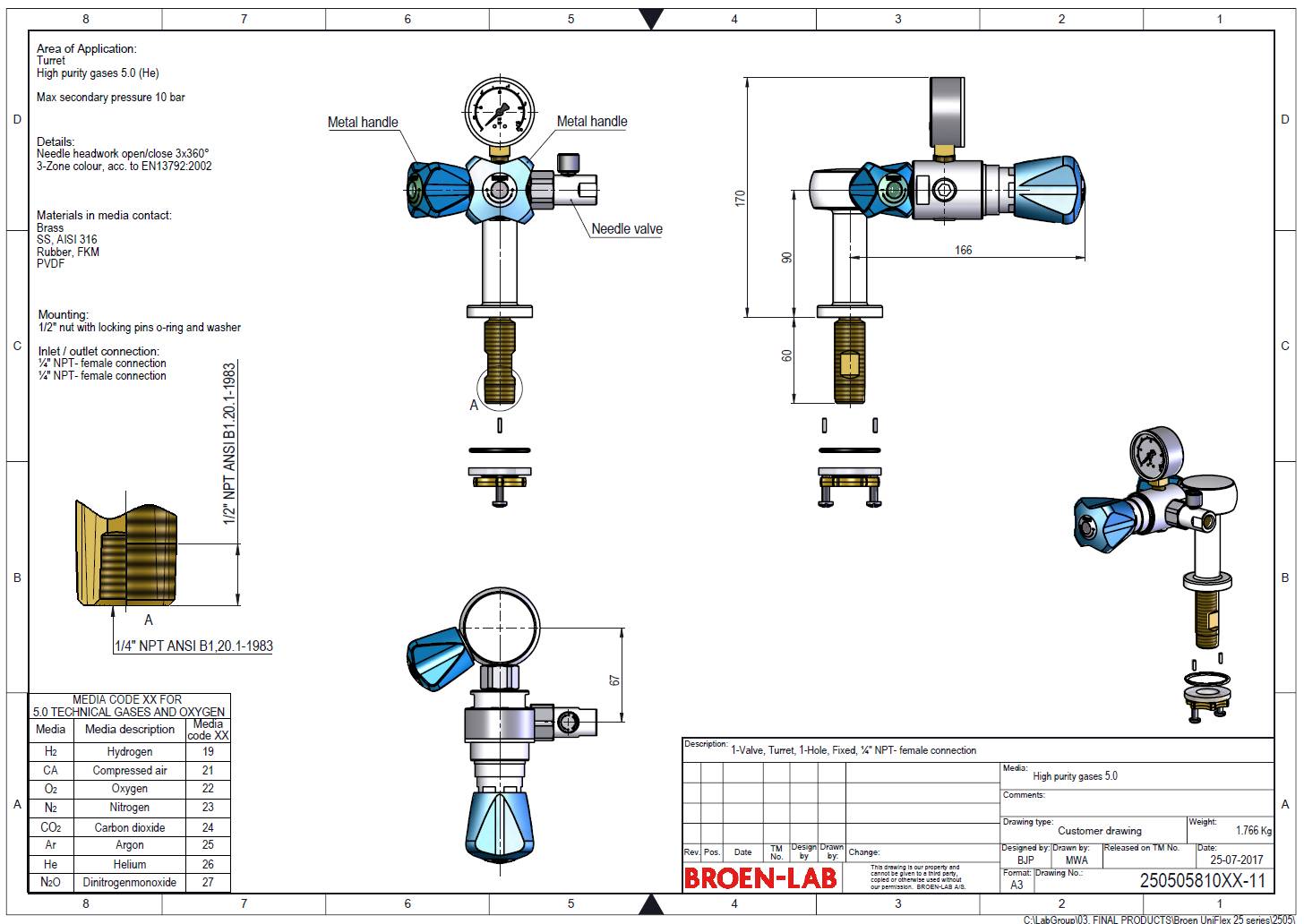

Table Mounted Pure Gas Tap with Isolation Regulator and Flow Valve

Verified by manufacturer 5 days ago

BROEN-LAB

Table-mounted laboratory, 10 bar pressure regulator, purity level 5.0 (99.999%) for helium, argon, compressed air, nitrogen etc.

Jump to:
+44 (0)121 522 2225 Website

Application

For use with 5.0 gases: see manufacturer's literature for media codes.

Description

Table-mounted laboratory, 10 bar pressure regulator.


Features and benefits:


  • Purity level 5.0 (99.999%) for helium, argon, compressed air, nitrogen etc.
  • With stop valve and flow regulator.
  • Mounting kits with anti-rotational pins included.
  • 3 bar and double-outlet models also available.
  • Part of a range of 5.0 gases fittings: see manufacturer's literature.


Installation:

  • Mounting kit must have two screws for safe and easy mounting.
  • For installation purpose use compression fitting 15212520 for outer diameter (OD) 15 mm CU pipe interface. Other sizes possible on request.

General information

Color

White

Guidance for specification option:

Body.

Blue

Guidance for specification option:

Handles.

Finish

Powder-coated

Material

Brass

Guidance for specification option:

See manufacturer's literature for further details, including materials with media contact.

Shape

Other

Length

166 mm

Height

170 mm

Warranty description

Two year

Uniclass

Pr_65_54_33_45 Laboratory gas tapsPrimary

CAWS

N10/130 Laboratory furniture

Specification data - Laboratory gas taps

Mounting

Bench.

Number of outlets

One.

Nozzles

¼" National Pipe Tapered (NPT)

Operation

Turn handles (isolation valve, regulator and flow valve)

Colour coding

Insert requirements to BS EN 13792

Guidance for specification option:

See manufacturer's literature for details of two-digit media codes available. Replaces 'XX' in SKU code.

Inlet connection

60 mm inlet thread ½" NPT, with female ¼" NPT

Accessories

-

Manufacturer guidance

Mounting kits with anti-rotational pins included

Product Reference

Table Mounted Pure Gas Tap with Isolation, Regulator and Flow Valve

Sustainability data

Country of product manufacture

Denmark

BIM objects

Platform Compatible Version
Revit
-

1

Case studies

Colour Coding System

Colour Coding System

Regulators and high purity gases

Regulators and high purity gases

Service Valves

Service Valves

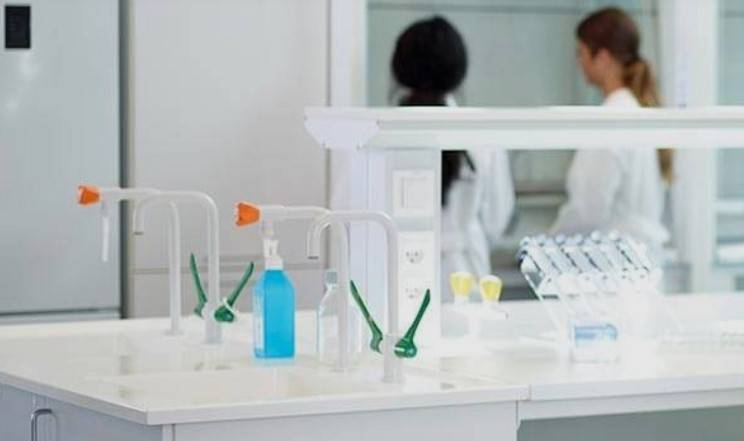

Taps in industrial applications
