1-Valve Table Mounted 2.0 Technical Gas Turret
Verified by manufacturer 4 months ago
QA Certificate
Certificate type

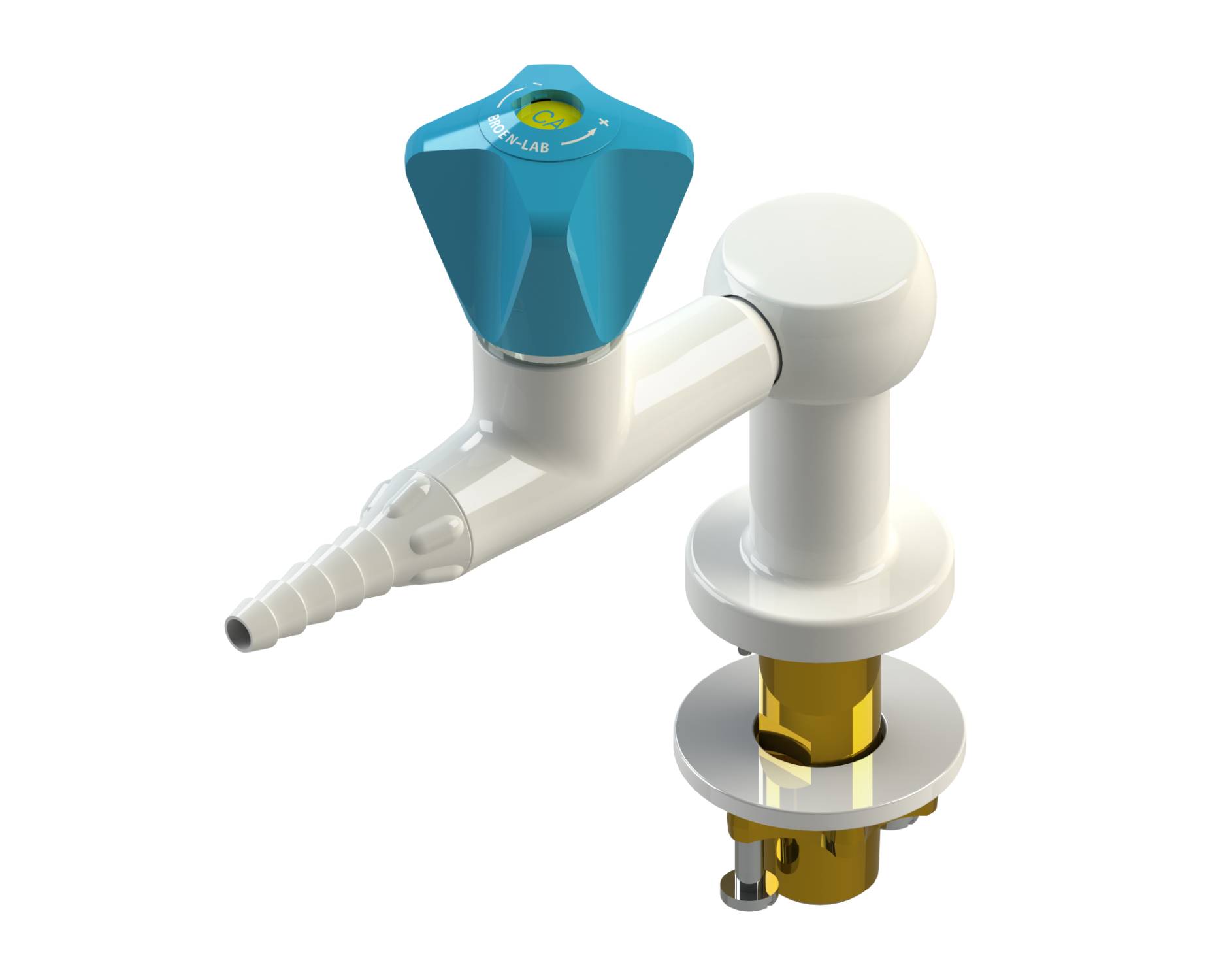

Table mounted 2.0 technical gas turret
Application
Laboratories
Description
Table mounted 2.0 technical gas turret. Media can include compressed air, nitrogen, carbon dioxide, argon and helium. Needle headwork open/ close 3 x 360°. 3-Zone colour, according to EN 13792.
General information
Color | White Grey |
Finish | Powder-coated |
Material | Brass Rubber Polypropylene |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | N10/130 Laboratory furniture |

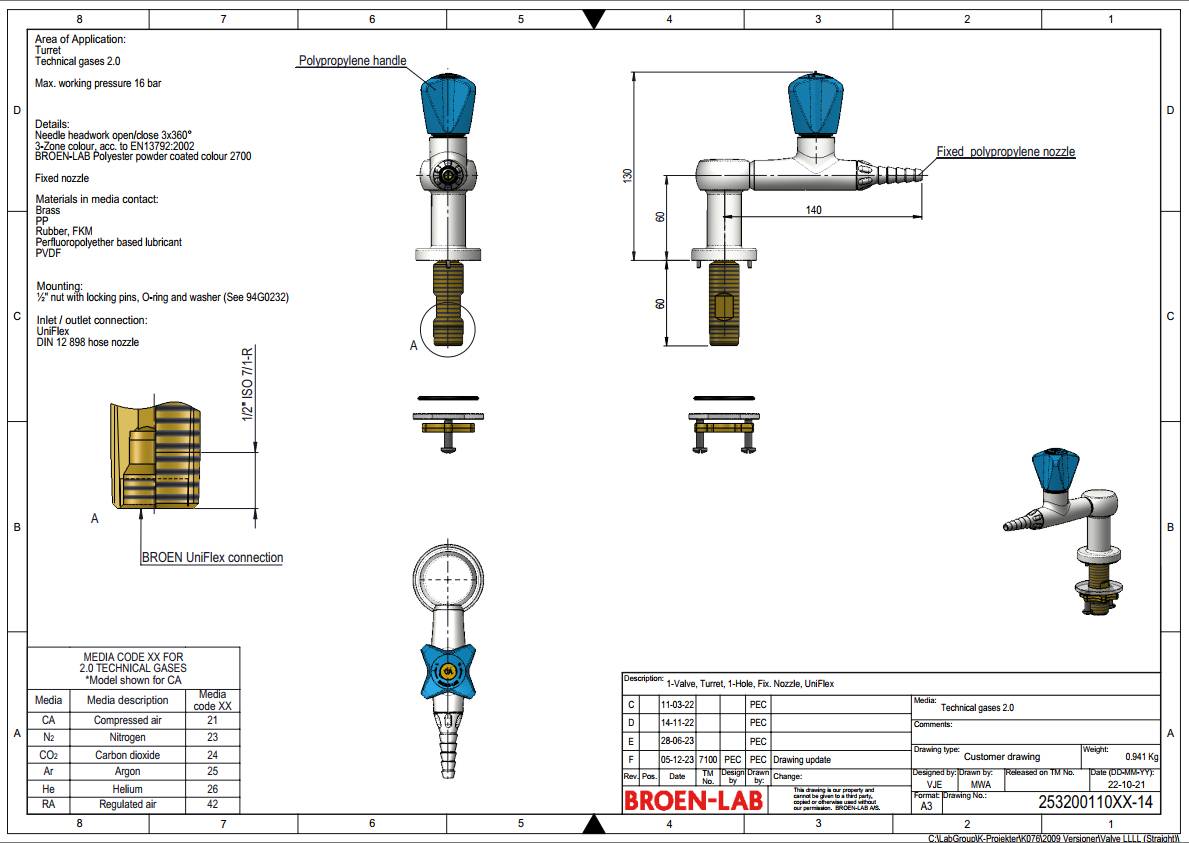

Specification data - Laboratory gas taps
Mounting | 1/2" nut with locking pins, o-ring and washer. |
Number of outlets | One. |
Nozzles | Fixed. |
Operation | Plastic handle. |
Colour coding | To BS EN 13792. |
Inlet connection | BROEN-LAB UniFlex/ Outlet: DIN 12 898, form A, size 1, 1/2" hose nozzle. |
Pressure | Maximum working pressure: 16 bar. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Denmark |
Material | Brass Rubber Polypropylene |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
QA Certificate
ISO9001
