Table Mounted Laboratory Gas Tap with Quick Release Couplings

Verified by manufacturer 3 months ago

BROEN-LAB Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • Certificate of Compliance

    Certificate type

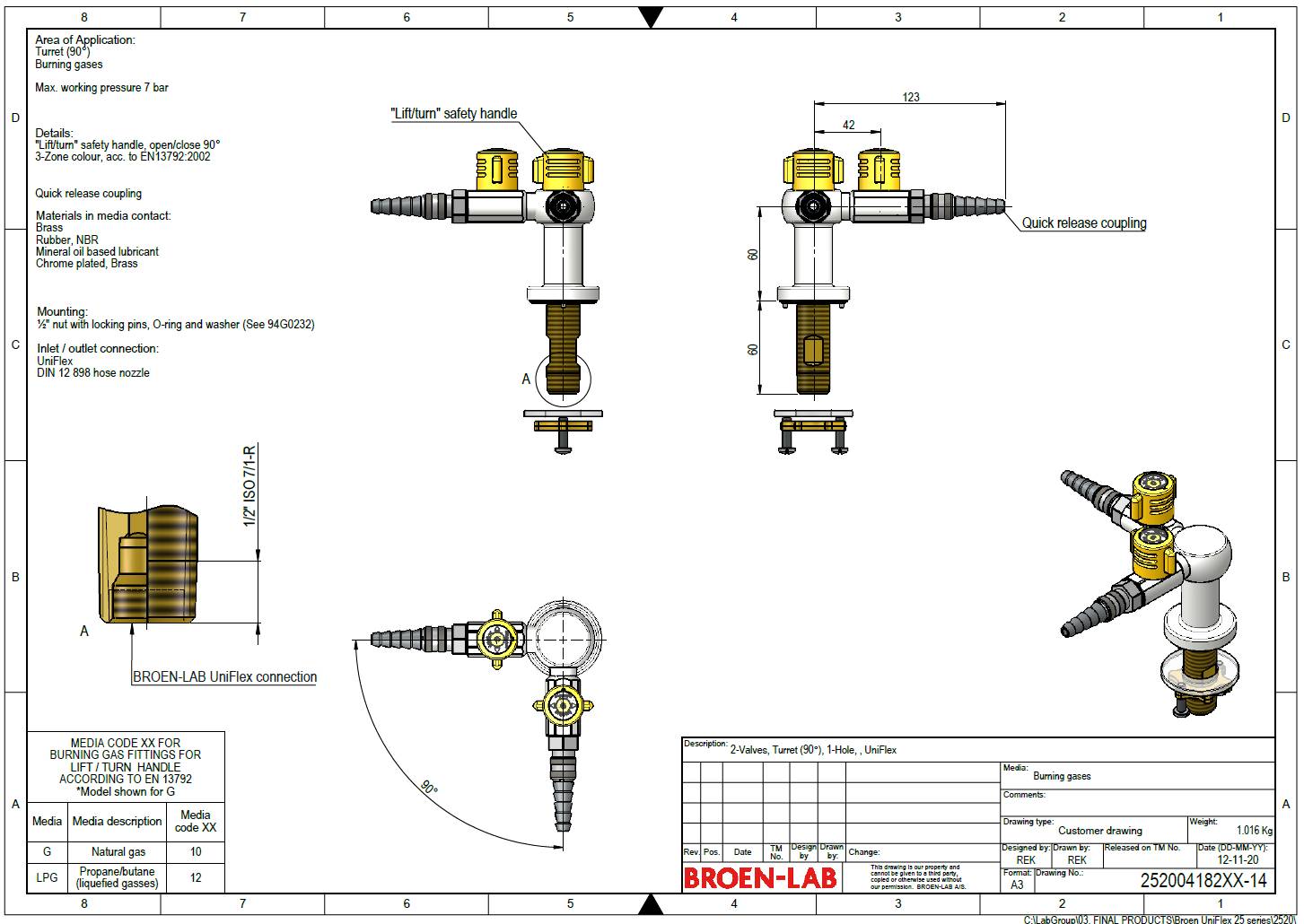

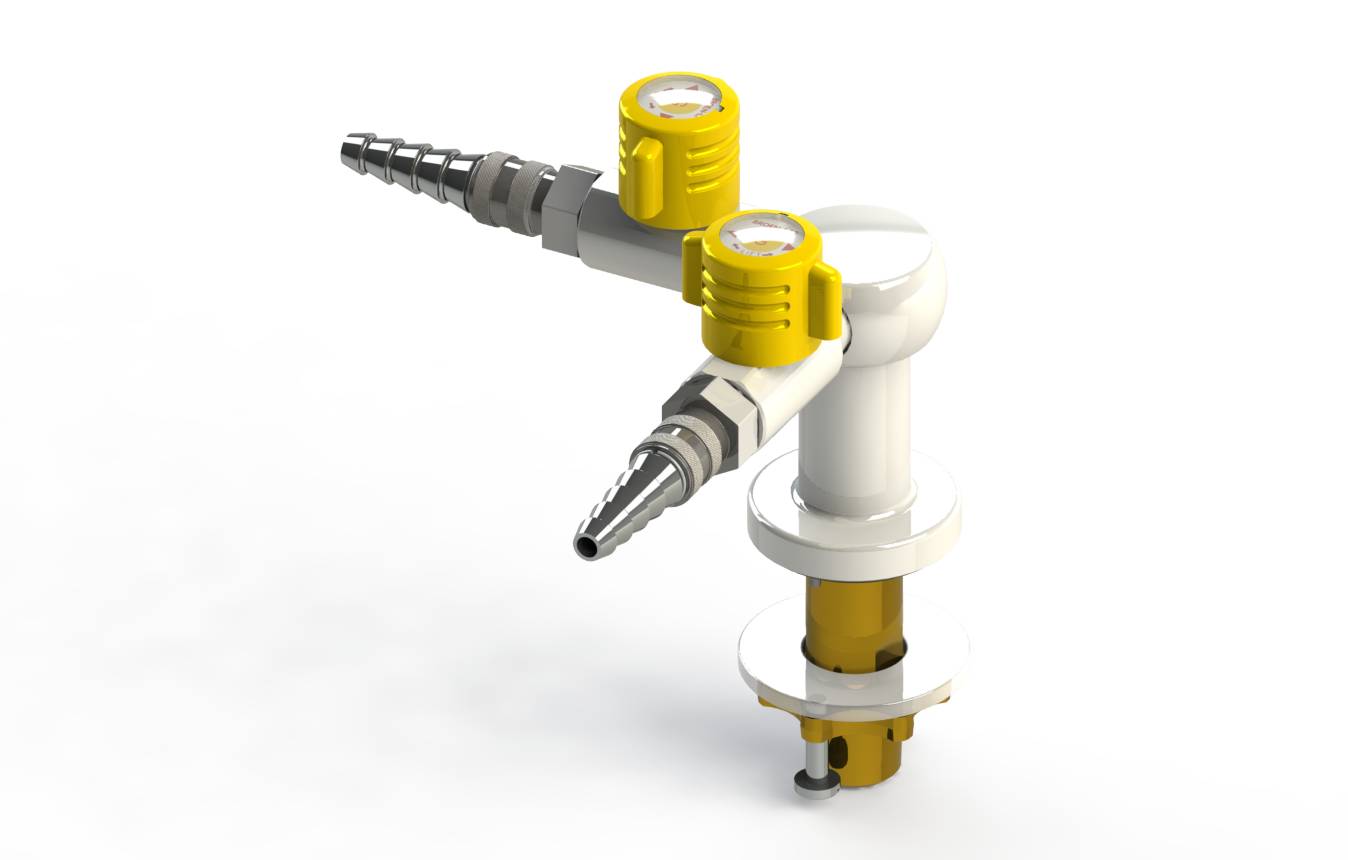

Table-mounted laboratory one-way gas tap, two way 90° gas tap, two way 180° gas tap and 4-way gas tap with lift-turn safety handle and quick release metal nozzle.

Jump to:
+44 (0)121 522 2225 Website

Application

For use with burning gases: see manufacturer's literature for media codes.

Description

Table-mounted laboratory gas tap.


Features and benefits:


  • Table/ bench mounted.
  • Lift-turn safety handle and quick release metal nozzle for high flexibility. Check valve is built in to the quick release coupling.
  • Mounting kits with anti-rotational pins included.
  • Approved according to BSI.
  • Media indication according to EN 13792.
  • Part of a wide range of compatible gas taps, including fixed nozzles, flashback arrestors, multi-valve units, suspended or wall-mounted taps: consult manufacturer's literature for full details.
  • Disability-friendly and standard (non-pop-up) handles also available.
  • Materials: See manufacturer's literature for full details, including materials with media contact.


Installation:


  • Mounting kit must have two screws for safe and easy mounting.
  • For installation purpose use compression fitting 15212350 for outer diameter (OD) 15 mm CU pipe interface. Other sizes possible on request.

General information

Color

White

Guidance for specification option:

Body.

Yellow

Guidance for specification option:

Handles.

Manufacturer guidance

See Colour coding for media indication colour (to BS EN 13792).

Finish

Powder-coated

Shape

Other

Length

123 mm

Height

60 mm

Warranty description

Two year

Uniclass

Pr_65_54_33_45 Laboratory gas tapsPrimary

CAWS

N10/130 Laboratory furniture

Specification data - Laboratory gas taps

Mounting

Table.

Number of outlets

Two.

Nozzles

Quick release.

Operation

Lift-turn handle.

Colour coding

Insert requirements to BS EN 13792

Guidance for specification option:

See manufacturer's literature for details of media codes available.

Inlet connection

60 mm, ½" ISO 7/1-R, with internal UniFlex thread.

Accessories

-

Manufacturer guidance

Mounting kits with anti-rotational pins supplied as standard. Consult manufacturer's literature for accessories and insert requirements.

Product Reference

Table Mounted Laboratory Two-way 90° Gas Tap with Quick Release Couplings

Sustainability data

Country of material origin

Europe

Country of product manufacture

Denmark

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

QA Certificate

QA Certificate

ISO9001

BSI Kitemark

BSI Kitemark

BSI - Laboratory Gas Taps

Certificate of Compliance

Certificate of Compliance

AGA Laboratory Gas Cocks

Certificate of Compliance

Certificate of Compliance

CSA US + C - Gas Valves

QA Certificate

QA Certificate

SAGA - Laboratory Gas Valves

QA Certificate

QA Certificate

KIWA - Laboratory Valves
