System T - Glazed Partition
Verified by manufacturer 4 days ago
Rw 46 dB
Rw 46 dB
EPD
Certificate type

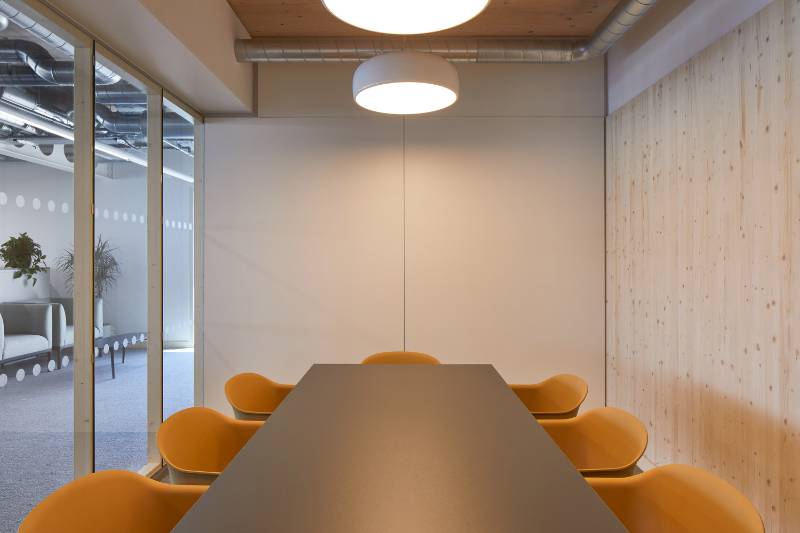

A double glazed, timber mullion and transom based partition with flush fit glazing.
Application
For commercial applications including offices.
Description
A double glazed, timber mullion and transom based partition with flush fit glazing and slender frames.
Features and benefits:
- Available with Rw 44dB or Rw 46dB acoustic performance: Different glass types combine with acoustic doors to achieve a wide range of acoustic performances.
- Uses carbon-neutral timber.
- The glass floats over the timber frame, creating a light, elegant product with the softness of natural materials and the performance of modern glazing systems.
- The 35 mm mullions are elegant yet incredibly rigid due to the unique internal structure.
- The system is matched to any veneer sample, eliminating the restrictions of a standard finish selection.
- The mitred glazed corners and T-junctions are a signature feature and visually reduce to a hairline, delivering a clean elegant detail.
General information
Color | Other Guidance for specification option: Frame: Anodized finish in six colours, or polyester powder-coated to any RAL colour. Mullion/ transoms: Veneer colour matched. |
Finish | Anodized Powder-coated Veneered |
Material | Aluminium Glass Stainless steel Timber |
Shape | Other |
Length | 100 mm Manufacturer guidanceDepth. |
Width | Bespoke |
Height | Bespoke Guidance for specification option: Up to 3 m as standard. System height: 3 m. |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Classification data | |
Unit size | |
Thickness | 100 mm. |
Partition height (nominal) | Manufacturer guidanceUp to 3 m as standard. System height: 3 m. Consult manufacturer and insert requirements. |
Width (nominal) | Manufacturer guidanceConsult manufacturer and insert requirements. |
Deflection allowance (maximum) | |
Verticals | +/-15 mm with 35 mm head track. |
Panel partition type | Glazed - acoustic laminated. |
Framing, fixing points and joints | Timber frame. Acoustic cruciform dry glass joints. |
Glazed panels | |
Type | Double-glazed. |
Additional features | Manufacturer guidanceConsult manufacturer and insert requirements. |
Door arrangement | |
Type | GG10 Door - Rw 32 dB. Guidance for specification option:
S59 Door - Rw 43 dB. Guidance for specification option:
|
Locking | Surface mounted mag lock. Morticed shear lock. Guidance for specification option: Compatible with S64 only. |
Door frames | Manufacturer's standard. Guidance for specification option: Aluminium or timber dependent on door type specified. See 'Door arrangement - Type' and manufacturer's literature for further details. |
Door panels | |
Type | Manufacturer's standard. Guidance for specification option: Glazed or solid framed doors. Hinged and sliding available. See 'Door arrangement - Type' and manufacturer's literature for further details. |
Ceiling | |
Method of support | Head track. |
Seals | Drop down acoustic seal - full width. |
Cable management and outlets | Cable run. |
Acoustic performance | 46 dB. |
Frame finish | Anodized. Guidance for specification option: Available in six colours. Polyester powder-coated, RAL. Guidance for specification option: Powder-coated to any RAL colour. Insert requirements. |
Mullion/ transom | Timber veneer, colour-matched. Guidance for specification option: Consult manufacturer and insert requirement. |
Floor channel | 50 mm floor profile. |
Wall abutment | 35 mm. |
Fire protection | Class 0. |
Glass thickness | 8.8 mm + 8.8 mm. |
Sustainability data
Material | Aluminium Glass Stainless steel Timber |
Product certifications
Product certifications
EPD
Strahle System T EPD
