System 2000 Solid Wall - Partition System
Verified by manufacturer 1 day ago
Rw 49 dB
Rw 49 dB
EPD
Certificate type

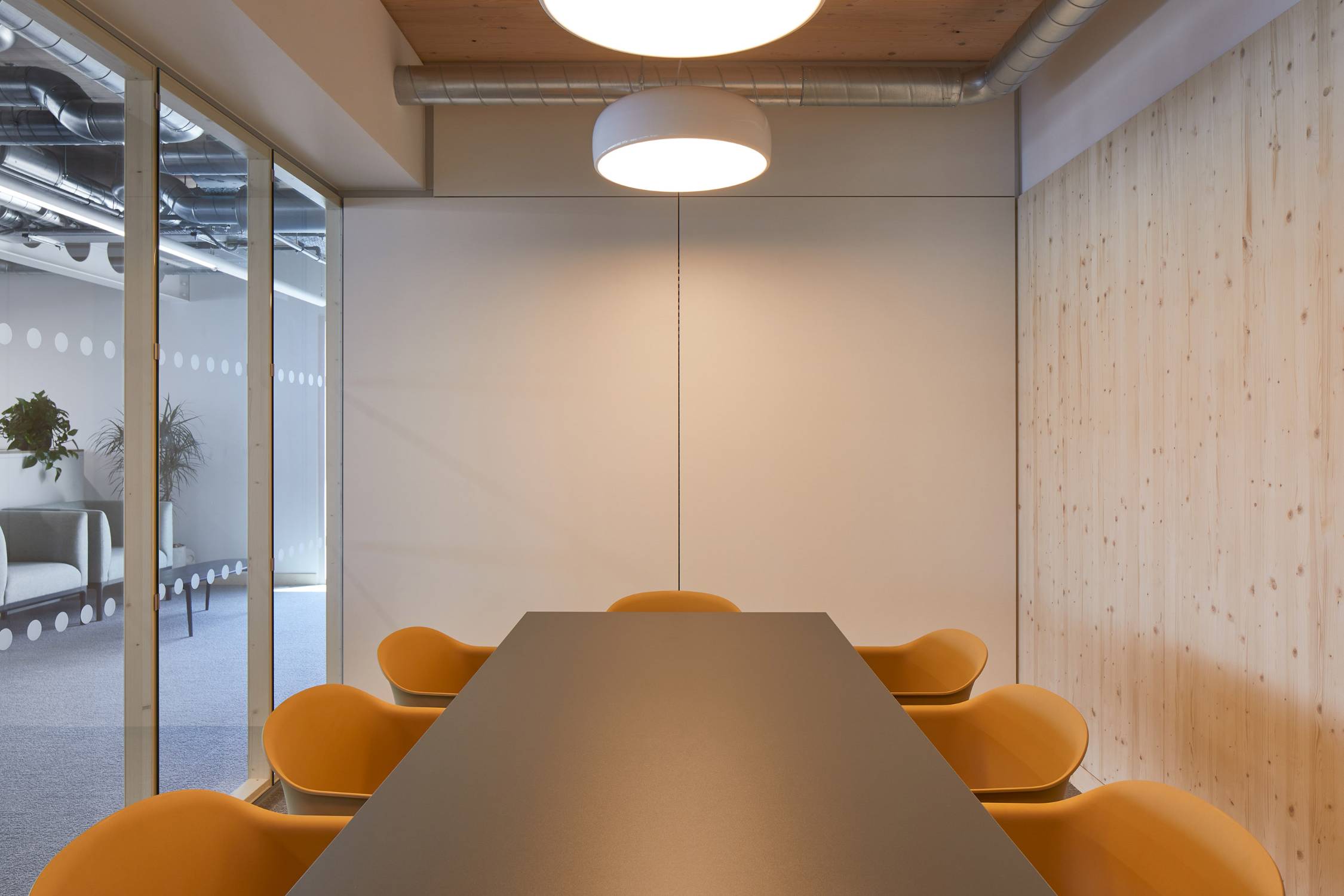

Mullion based relocatable partition system with solid panels.
Application
For commercial applications including offices.
Description
Mullion based solid partition panels with a frameless aluminium design, available in a range of materials.
Relocatable to facilitate organizational change. Large meeting rooms transform into offices and offices into phone booths.
Features and benefits:
- Available with Rw 49 dB, Rw 53 dB (100 mm deep), up to Rw 55 dB (125 mm deep) acoustic performance: Different panel types combine with acoustic doors to achieve a wide range of acoustic performances.
- Reconfigurations are quicker than drywall.
- Design freedom with a wide range of panel materials including fabric, veneer, metal and laminate.
- Can integrate with technology for room booking panels and AV systems.
- Fully compatible with all of the other Savile Row partition and door systems including System 2000 Glazed, System T, System 3400, System 2300, System MTS and System 3500.
- Wide range of accessories available.
General information
Color | Other Guidance for specification option: Natural anodized aluminium as standard, five additional anodized colours or polyester powder-coated to RAL colour. |
Finish | Anodized Powder-coated |
Material | Aluminium Stainless steel MFC Timber Fabric |
Shape | Other |
Length | 100 mm 125 mm Manufacturer guidanceDepth. |
Width | Bespoke |
Height | Bespoke Guidance for specification option: Doors up to 3 m. System height up to 7 m. |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system |
Specification data - Partition panels
Classification data | |
Third-party certification | Cradle to Cradle certified. |
Unit size | |
Thickness | 100 mm. |
Partition height (nominal) | Manufacturer guidanceUp to 3 m with single panel; up to 7 m with two panels vertical. Consult manufacturer and insert requirements. |
Width (nominal) | Manufacturer guidanceMaximum 1500 mm panel width. Consult manufacturer and insert requirements. |
Deflection allowance (maximum) | |
Head | +/- 15 mm. +/- 25 mm. Manufacturer guidanceAdditional deflection up to +/- 50 mm possible. |
Verticals | +/- 25 mm with 35 mm head track. |
Panel partition type | Clerestory. Glazed/ Solid. Solid. Absorber - perforated. Guidance for specification option: Choose from MFC, timber, or fabric. Consult manufacturer for details. Vertical. Vertical/ Clerestory. Horizontal/ Clerestory. Horizontal. Manufacturer guidanceSee drawings in manufacturer literature for more details. |
Framing, fixing points and joints | Aluminium frame. Steel post structure. |
Solid panels | |
Type | 2 x 19 mm MFC. Timber. Fabric. Metal. Laminate. Manufacturer guidanceConsult manufacturer for further details. |
Finish and colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Door arrangement | |
Type | AR40 Door - Rw 37 dB. Guidance for specification option:
AR100 Door - Rw 44 dB. Guidance for specification option:
S59 Door - Rw 43 dB. Guidance for specification option:
|
Locking | Surface mounted mag lock. Morticed shear lock. Guidance for specification option: Only available with certain door options - consult manufacturer for details. |
Door frames | Aluminium. |
Door panels | |
Type | Manufacturer's standard. Guidance for specification option: Glazed or solid framed doors. Hinged and sliding available. See 'Door arrangement - Type' and manufacturer's literature for further details. |
Ceiling | |
Method of support | Head track - recessed. |
Seals | Drop down acoustic seal - full width. |
Cable management and outlets | Cable duct. |
Configuration | Glazed partition front. Partition crosswall. |
Acoustic performance | 49 dB. |
Frame finish | Anodized. Guidance for specification option: Available in six colours. Polyester powder-coated, RAL. Guidance for specification option: Powder-coated to any RAL colour. Insert requirements. |
Floor channel | 50 mm floor profile. 80 mm floor profile. |
Wall abutment | 35 mm. 50 mm. |
Fire protection | Class 0/ E30. |
Accessories | Not required. Shelving. Guidance for specification option: Timber or glass with integrated lighting option. Organizer. Guidance for specification option: Shelf with integrated pen tray. Whiteboard. Guidance for specification option: Either steel finished in a RAL colour or coloured, back painted glass. Picture rail. Guidance for specification option: Magnetic rail for hanging pictures. Coat hooks. Credenza. AV bracket. Guidance for specification option: For mounting AV screen and sound bar to system. Cable cubby panel option also available. Manufacturer guidanceCompatible with the Orga accessory range. Other accessories are available, consult manufacturer and insert requirements. |
Sustainability data
Material | Aluminium Stainless steel MFC Timber Fabric Metal |
Product certifications
Product certifications
EPD

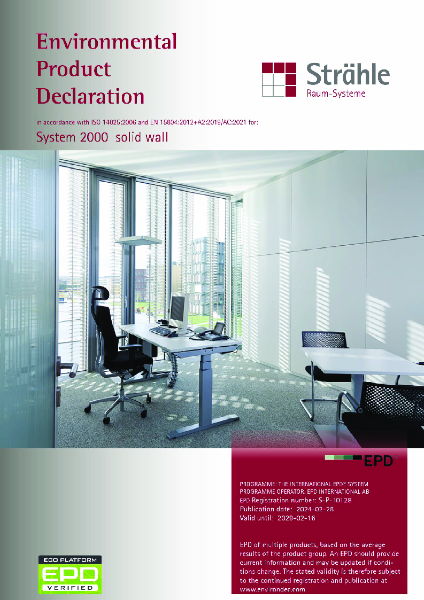

Strahle System 2000 Solid Wall EPD
Literature
System 2000 - Solid - Design Guide
Case studies
Storey, 1 Finsbury Avenue - 2000, 2000 Solid Panels
Mann+Hummel - System 2300, System 2000 Solid Wall, Kubus
